Low-Power Design for Home Appliances using PSOC™ 4100T Plus
Ultra-low power modes and advanced power management for reduced power consumption
The PSOC™ 4100T Plus family of Arm Cortex-M0+ microcontrollers is specifically designed to meet the unique demands of Home Appliance applications. By combining advanced analog and digital blocks with Infineon's high-performance Multi-Sense technology, the PSOC™ 4100T Plus enables the creation of intelligent, interactive, and energy-efficient home appliances.
Advanced HMI Capabilities with Multi-Sense Technology
The PSOC™ 4100T Plus features Infineon's 5th Generation CAPSENSE™ technology, which offers a 10x higher signal-to-noise ratio (SNR) performance while consuming 10x less power, enabling inductive sensing and liquid level sensing technologies, allowing for the detection of liquid levels, presence, and type, without requiring direct contact.
Low Power Consumption and Advanced Power Management
The PSOC™ 4100T Plus is designed to provide low power consumption and advanced power management capabilities, making it ideal for battery-powered and energy-efficient home appliances. With a range of power modes, including sleep, hibernate, and deep sleep, the PSOC™ 4100T Plus can reduce power consumption to as low as 6 μA. The low power capabilities of PSOC™ 4100T Plus helps home appliances attain low power ratings.
Ideal for System Control and HMI Applications
With high memory options, combined with SAR ADC, MCU peripherals, and Multi-Sense technology, the PSOC™ 4100T Plus is an ideal microcontroller for system control and HMI applications in Home Appliances. The PSOC™ 4100T Plus enhances user experience of home appliances, such as smart refrigerators, washing machines, and dishwashers, that can sense and respond to user inputs.
Target use cases for PSOC™ 4100T Plus include
Smart Home | Appliance
- White goods
- Countertop appliances
- Touch-controlled screens
- Smart connected IoT products
Wearables | Hearables
- AR/VR Glasses & Accessories
- Over-the-ear headphones
Other Consumer / Industrial
- PC and Gaming
- Consumer Electronics
- Dimming controller
- Remote controls
- Printers
- Touchscreens
PSOC™ 4100T Plus Microcontrollers

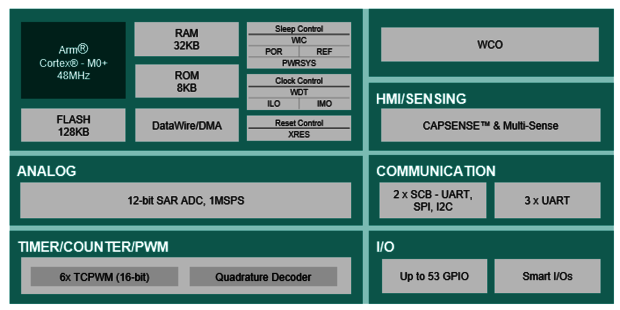

The PSOC™ 4100T Plus is a microcontroller from Infineon Technologies, part of the PSOC™ 4 family. It features a 32-bit Arm® Cortex®-M0+ CPU, operating at 48 MHz, and is designed for low-power applications. The PSOC™ 4100T Plus provides an upgrade path for existing PSOC™ 4100 and PSOC™ 4100S designs, ensuring software and package compatibility
Architecture: Based on the PSOC™ 4100T Plus MCU M0S8 Architecture.
Memory:
- Flash: 128 KB
- SRAM: 32 KB
- ROM: 8 KB
Peripherals:
- Up to 53x GPIOs
- High Speed I/O Matrix & Smart I/O
- DataWire/ DMA Initiator/MIMO
Technology:
- Fifth-generation CAPSENSE™ and Multi-Sense technology
- Ultra-low power touch HMI solution
- Superior liquid tolerance and reliability in harsh environments
Applications: Suitable for white goods, small home appliances, touch-controlled screens, and IoT products requiring low-power operation and improved performance.

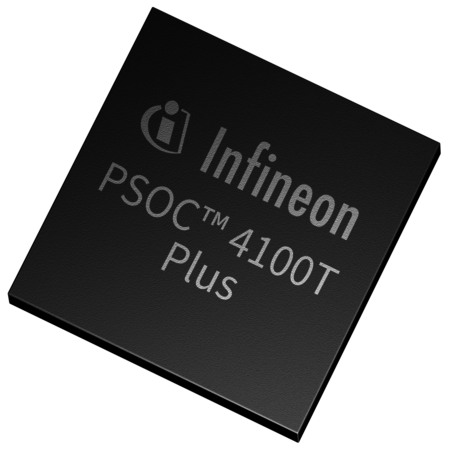

PSOC™ 4100T Plus
64-TQFP
CY8C4147AZQ-T495
PSOC™ 4100T Plus
48-TQFP
CY8C4147AZQ-T493

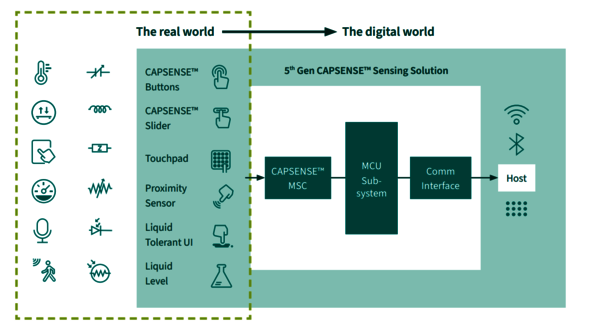

CAPSENSE™ and Multi-Sense Technology
5th Generation CAPSENSE™ Technology is a proven technology that enables designers to create intuitive and interactive user interfaces, such as touch buttons, sliders, and proximity sensors. With the PSOC™ 4100T Plus, 5th Gen CAPSENSE™ technology is taken to the next level, offering a 10x higher signal-to-noise ratio (SNR) performance while consuming 10x less power. This enables designers to create advanced HMIs that are not only more responsive and accurate but also more energy-efficient. Additionally, the PSOC™ 4100T Plus's CAPSENSE™ technology is designed to work seamlessly with the device's other peripherals, making it easy to integrate into a wide range of home appliance applications.
The PSOC™ 4100T Plus takes sensing to the next level with its Multi-Sense technology, which combines CAPSENSE™, inductive sensing, and liquid level sensing into a single, powerful solution. Multi-Sense enables designers to create home appliances that can sense and respond to a wide range of inputs, from touch and proximity to liquid levels and presence. The PSOC™ 4100T Plus's inductive sensing capabilities allows designers to integrate a touch interface on a metal surface through touch over metal, while the liquid level sensing technology enables the detection of liquid levels, presence, and type, without requiring direct contact. By combining these sensing technologies into a single device, the PSOC™ 4100T Plus provides designers with a flexible and scalable solution for creating advanced home appliances that are not only more intuitive and interactive but also more efficient and reliable. With Multi-Sense, designers can create home appliances that are truly smart and connected, enabling new levels of convenience, efficiency, and innovation in the home.
Enablement – Software Ecosystem
ModusToolbox™ Software
Infineon's ModusToolbox™ is a collection of easy-to-use software and tools that enable rapid development of Infineon microcontrollers and AIROC™ Wi-Fi and Bluetooth® devices. It provides both development tools and run-time software for a flexible and comprehensive development experience. The ModusToolbox™ tools package includes desktop programs that enable the creation of new embedded applications, managing software components, configuring device peripherals and middleware, and embedded development tools for compiling, programming, and debugging. The ModusToolbox™ run-time software includes an extensive collection of GitHub-hosted repositories comprised of code examples, board support packages, middleware, and application support.
Zephyr® OS Supported Device
Zephyr is a small, yet scalable, full-featured OS with an architecture that allows developers to focus on applications requiring a real-time OS. It is flexible and customizable, and built with safety and security in mind.
PSOC™ 4100T Plus MCUs are supported in the Zephyr® OS Ecosystem through the following kit: CY8CPROTO-041TP
Zephyr OS support is available on several Infineon platforms, based on code contributions from Infineon, our customers, and the Zephyr community.
Evaluation boards and kits

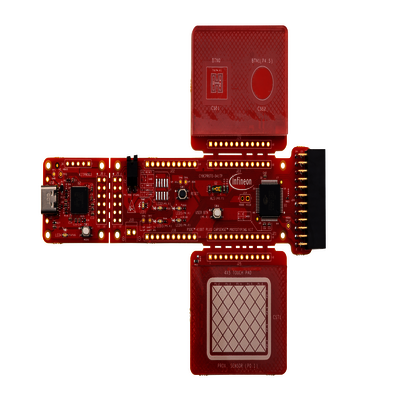

PSOC™ 4100T Plus Prototyping Kit
Facilitates the evaluation of PSOC™ 4100T Plus MCU, and to assess the capabilities of 5th Generation CAPSENSE™ and Multi-Sense technologies
