R-78E Series Low Cost Switching Regulators

The perfect substitute for inefficient linear supplies

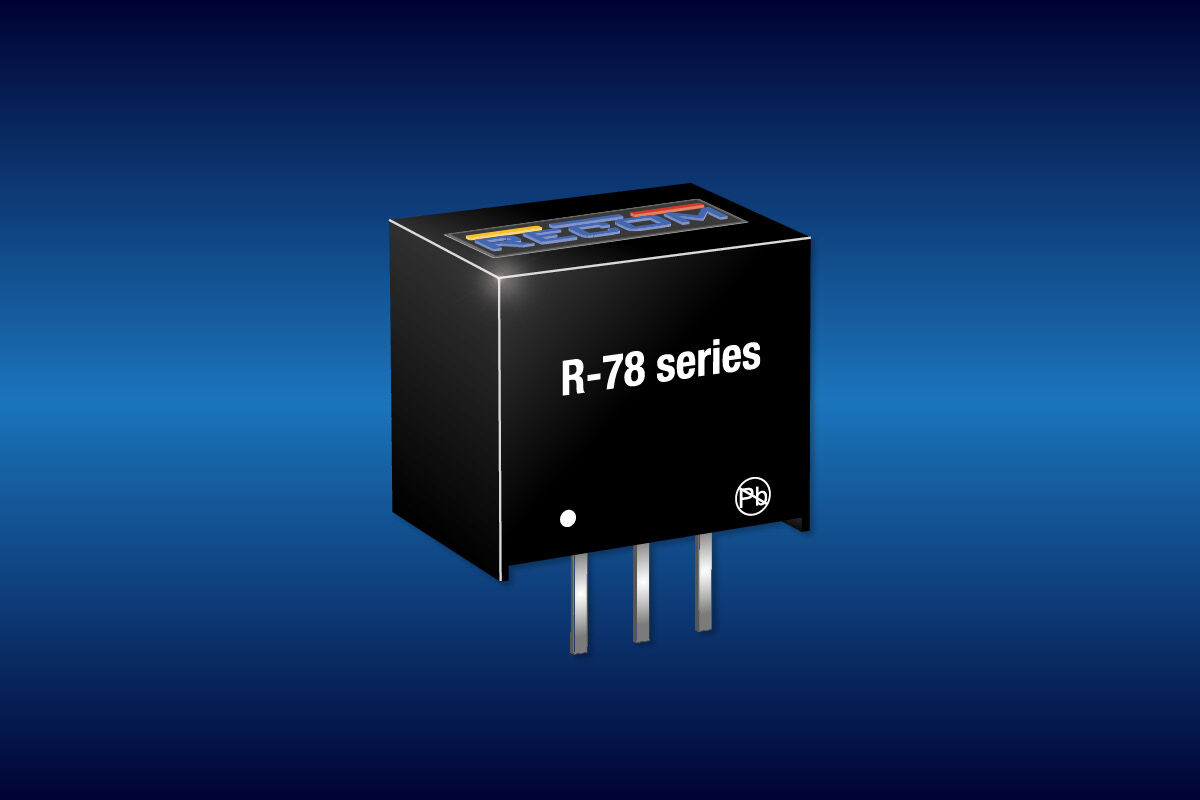

The R-78E Switching Regulator Module is a 0.5 amp single output DC/DC converter, that provides a low-cost option for designers requiring high efficiency, wide voltage input range and accurate output voltage regulation. It features input voltage of 6 VDC to 28 VDC and 95% efficiency with output voltage of 3.3, 5, 9, 12, or 15 V at 500 mA. The device is housed in a compact SIP3, TO-220 compatible package.

R1S Series (R1D)

1 Watt SMD converter with single & dual outputs

The R1S and R1D converters are typically used in general purpose and industrial low power isolation and
voltage matching applications where an SMD converter is required. The converter series feature an extended ambient operating temperature range of -40°C to +100°C without derating and optional continuous short circuit protection.

R-78S Series single output Switching Regulator

R-78S series extends battery lifetimes to the “last gasp”

The R-78S is a DC/DC boost converter designed to run from single cell batteries, generating a stable 3.3 V output to power microprocessors, WLAN/Bluetooth modules and IoT systems. The battery lifetimes can be extended until the "last gasp" as the converters accept an input down to 0.65 V.

REM1-10 Series

High-grade and Cost-effective medical DC/DC Converters

The REM1, REM3, REM6 and REM10 medical grade regulated DC/DC converters feature 250VAC working voltage, up to 5 k VAC/1 minute reinforced isolation and low 2µA leakage. An optional external control pin brings standby consumption down to only 12.5 mW.

The REM1, REM2, REM3.5E, REM5E and REM6E series feature reinforced 250 VAC continuous working isolation with >8mm creepage/clearance providing 2 x MOPP. These converters offer all key features required for critical medical applications, while keeping the cost of these modular solutions down. They are available with pins as well as SMD. The REM3, REM6 and REM10 medical grade regulated DC/DC converters feature 250 VAC working voltage, up to 5 kVAC/1 minute reinforced isolation and low 2 µA leakage. An optional external control pin brings standby consumption down to only 12.5 mW.

The reliable REM15-W, REM20-W and REM30-W series offer well balanced specifications for critical medical applications, while guaranteeing far-reaching compatibility with their extra-wide 4:1 input voltage range at compact case sizes of only 1.6”x1” and 2”x1”.

RFB, RFM and RFMM Series

1W DC/DC converters at unmatched low prices

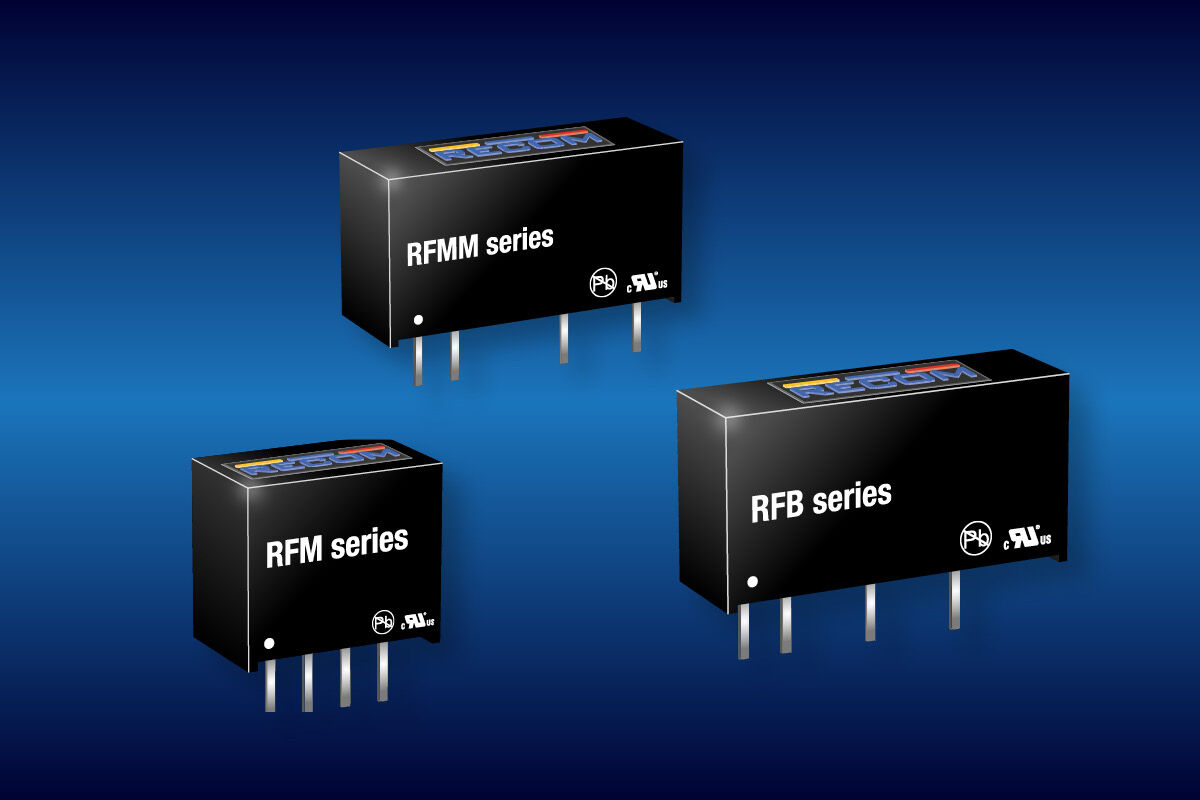

RECOM offers the RFB, RFM and RFMM commodity DC/DC converters for cost sensitive applications at unmatched low prices. Efficient manufacturing facilities combined with high volume production enable RECOM to continuously reduce cost while making no compromise on quality, and therefore directly transferring the cost advantage to the customer.

RACM1200-V

The RACM1200 series is a Europe-designed, manufactured baseplate-cooled, highly efficient power supply series. The compact, single output AC/DC converters are just 228 x 96.2 x 40mm (9.0” x 3.8” x 1.6”) in size and can deliver 1000 watts continuously with the baseplate held to 80°C while 1200 watts is available for up to ten seconds or continuously with airflow. Input is universal 85-264VAC, dip-switch adjustable outputs available are nominal 24, 48 followed by 36VDC soon and efficiency is 95% peak. An isolated and ‘always on’ 5V/1A auxiliary supply is provided along with an adjustable 5 to 12V/1A system fan output, with all outputs isolated from ground to 2kVAC for PoE applications. The power supplies hold safety certifications for industrial, ITE, and medical with 2 MOPP isolation and low leakage current for BF applications. The products also meet Ecodesign requirements for standby losses and comply with radiated and conducted ‘Class B’ EMI emissions limits.

130W AC/DCs in 2”x4” format suit wide applications

The RACM130E-K series in the industry-standard 2” x 4” footprint, is aimed at applications that are cost-sensitive, but still require high performance and highest levels of safety certification. The parts operate from 85 to 264Vac with tightly regulated single outputs including 12V, 15V, 24V, 36V and 48VDC, providing 130W output power peak, or continuously with airflow. Efficiency is high, around 90% and this is maintained down to light loads for ErP compliance. No-load losses are also low at less than 200mW at 230Vac. Safety certifications include 2MOPP/250Vac medical for ‘B’ or ‘BF’ applications to IEC/EN/ANSI/AAMI ES 60601-1, as well as IEC/EN 62368-1, IEC/EN 60335-1 and IEC/EN 61558-1 for industrial, test and measurement, IT and household use, all to 4000m altitude. On-board dual input fusing is included.

90W 2”x4” AC/DCs are versatile

The specifications of the RACM90-K have not been compromised, however, with the parts featuring a wide 85-264VAC input range, tightly regulated single outputs including 12V, 15V, 24V, 36V, and 48VDC, and an operating temperature range from -40°C to +90°C with derating. Safety certifications include 2MOPP/250VAC to IEC/EN/ANSI/AAMI ES 60601-1, ‘B’ and ‘BF’ compliant with dual input fusing for medical applications, as well as to standards for reinforced isolation for industrial, test and measurement, ITE and household use, all to 4000m altitude. The parts are classified as Limited Power Source (LPS) and are suitable for installation in surge Class 3 and overvoltage category OVC III environments. Additionally, EN 55032/35 ‘Class B’ emissions limits are met with a large margin. Efficiency is high and is maintained down to light loads, complying with ErP requirements, and no-load consumption is less than 200mW at 230Vac.
