Rutronik Adapter Board – RAB1 for Sensorfusion

The Perfect and Flexible Adapter Board for State-Of-The-Art Sensorfusion

This adapter board with state-of-the-art sensors from our leading sensor suppliers is an Arduino shield adapter for the environment and inertial sensors from Infineon, Sensirion and Bosch evaluation and prototyping. It is powered via Arduino headers with a single 3.3V supply. All the sensors are configured to work with the I2C interface, except the DPS310XTSA – it can be used with SPI as well as with I2C. Every particular sensor can be disconnected from the power supply and I2C circuits by unsoldering solder bridges which helps to just use the sensor which are needed for a particular sensorfusion application.

Sensorfusion is the Future and Basis of Artificial Intelligence

To get the best out of a sensorfusion application it is important to use the best sensors. This is why we added best performance sensors from our leading sensor suppliers like Infineon’s digital XENSIVTM barometric pressure sensor with the DPS310, Bosch’s digital pressure sensor with the BMP581, Sensirion’s indoor air quality sensor for VOC measurements the SGP40, Bosch’s digital low power gas, pressure, temperature and humidity sensor with AI, the BME688 as well as Bosch’s 6-axis, smart, low power inertial measurement unit the BMI270 and Sensirion’s high-accuracy and low power relative humidity and temperature sensor with the SHT41.

Rutronik Solutions Level 3 – Advanced Design Level

Be Part of the Future of Sensorfusion

With our sensorfusion adapter board you will be equipped with the perfect development board on our Advanced Design Level. The state-of-the-art sensors of our suppliers lead you to the best quality of information of the surrounded environment for the perfect combination of sensor outputs to ensure your future-proof solution. Additionally we will provide more and more firmware with examples use cases for to reduce your time to market significantly. The easiest way to get the best proof of concept for your application is to combine our Rutronik adapter boards with our tailor-made evaluation board family e.g. like the RDK2 or our other adapter boards.

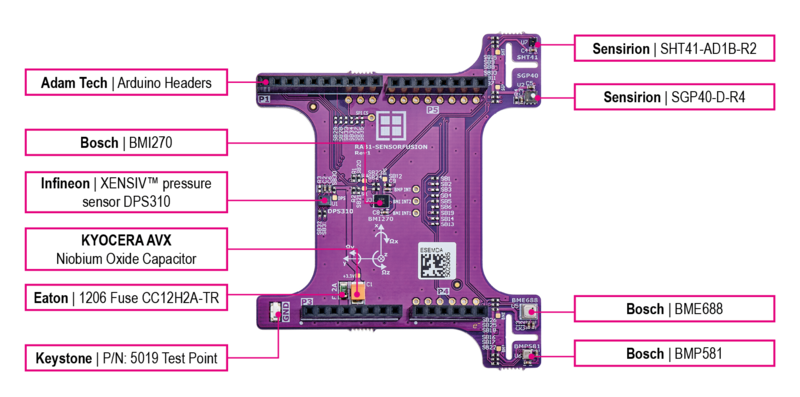

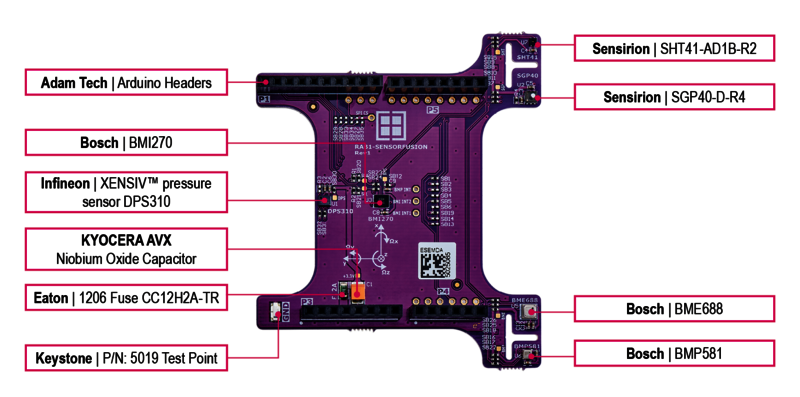

Features:

Description:

DPS310:

Infineon’s digital XENSIVTM barometric pressure sensor.

BMP581:

Bosch’s digital pressure sensor.

SGP40:

Sensirion’s indoor air quality sensor for VOC measurements.

BME688:

Bosch’s digital low power gas, pressure, temperature and humidity sensor with AI.

SHT41:

Sensirion’s high-accuracy and low power relative humidity and temperature sensor.

BMI270:

Bosch’s 6-axis, smart, low power inertial measurement unit.

I2C and SPI interface via Arduino compatible ADAM-TECH connectors.

A Keystone Electronics Test Point connector for a ground signal.
