About SCHURTER
The SCHURTER Group, founded in 1933, is the world's leading Swiss technology company, ensuring clean and safe supply of power and ease of use. SCHURTER focus on industrial, medical, mobility, energy, aearospace and consumer. SCHURTER’s growth in these dynamic segments is above average. With enormous commitment, they are close to the customers around the world, directly and through their partner network. Thanks to great expertise, innovative strength and a distinctive corporate culture, they are leading the SCHURTER Group sustainably into the digital future, together with their customers and partners.
15 companies in 15 countries belong to the SCHURTER Group, 8 companies of which have their own production sites. This ensures that all major markets can be served by their own companies. In addition, SCHURTER has representatives in about 60 countries and works together with a distributor network. This close-knit network guarantees that SCHURTER products are securely and quickly available internationally.
The SCHURTER Group employs about 1600 people worldwide. Each of these employees significantly contributes to corporate success and allows SCHURTER to be a leading innovator and manufacturer of electronic components and systems in the world.
New Product Information

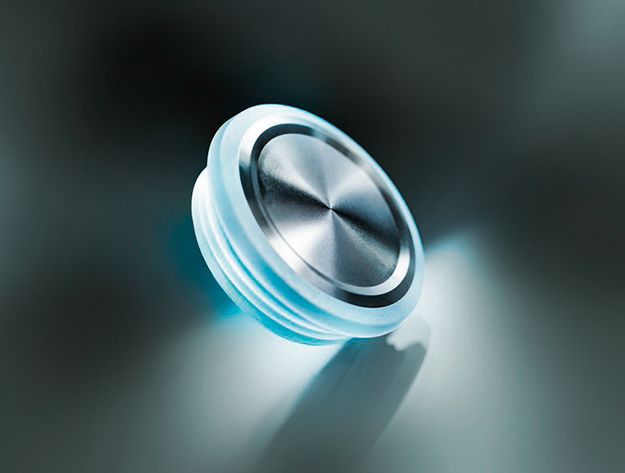

MSS with the highest IP protection class IP6K9K
MSS - an active, electronic switch (LA) or momentary-action switch (MO) without moving parts! With a light press on the switch surface, the MSS not only offers reliable functionality, but also a trendy design with multicolour illumination or non-illuminated versions in different colours. Thanks to their small installation depth and wearless design, these switches set new standards in terms of durability and convenience.

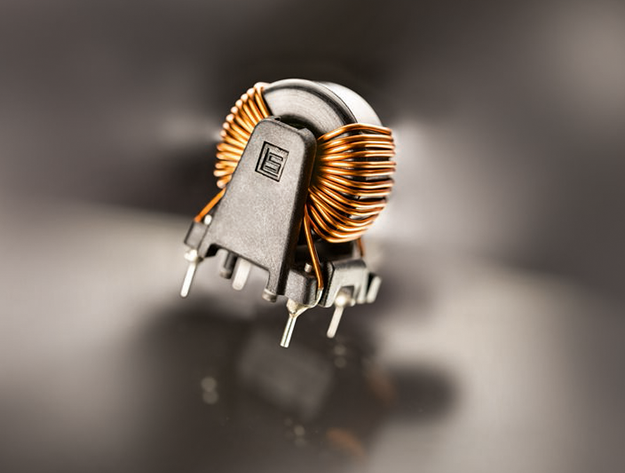

DKCV-1: Current-compensated Chokes for Vertical PCB Mounting
SCHURTER is launching a new, vertically mountable choke family for PCBs with very high inductances. The DKCV-1 current-compensated chokes are designed for currents from 0.5 to 10 A and have ENEC, cUR and UR approvals. Thanks to their nanocrystalline cores, they have very high inductances with particularly compact dimensions.

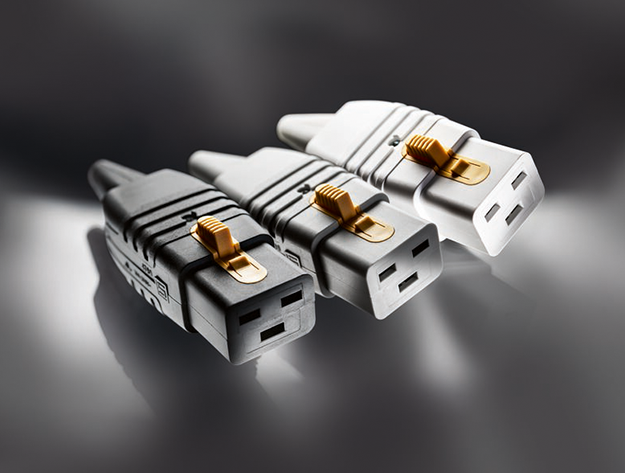

4799: IEC connector C19 for cable mounting with V-Lock
The 4799 rewireable IEC connector from SCHURTER sets new standards: for the first time, it combines a rewireable C19 connector with the proven V-Lock cord retention system. This innovative solution offers maximum safety and reliability for your applications by preventing unintentional disconnection. The appliance inlet is halogen-free and certified to IEC/UL/CCC 60320 standard.

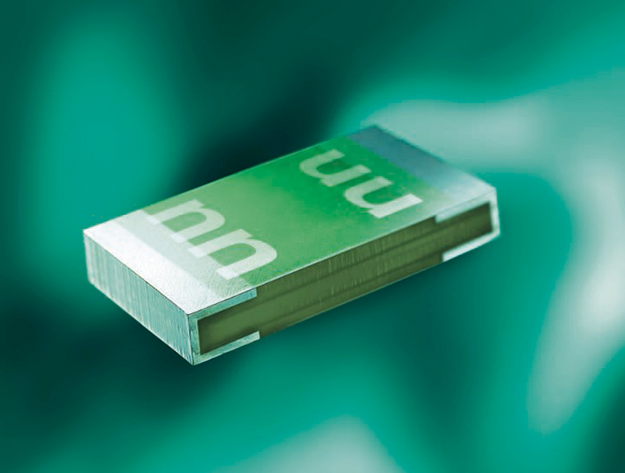

UST 1206 Chip Fuse – new up to 35 A
The SCHURTER UST 1206 is a chip fuse for surface mounting with a “slow-blow” characteristic. This means that it has a high melting integral I²t, thanks to which the fuse does not trip immediately at inrush current peaks higher than the rated current. This is of great importance in many industrial applications (e.g. motors, power converters).

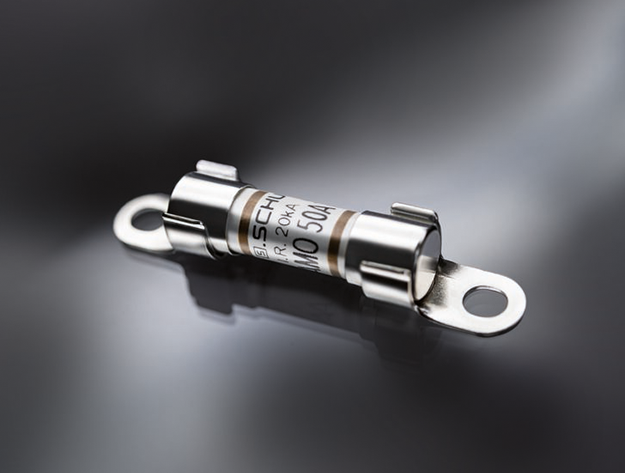

AMO: High Performance Fuse for Automotive Applications
SCHURTER presents the AMO 10.3x38 – a high-performance fuse designed for demanding automotive applications. It reliably protects high-voltage systems up to 800 VDC and 50 A, making it ideal for BMS (Battery Management Systems), DC-DC converters and on-board / off-board chargers. With innovative welding technology and versatile mounting options, the AMO series sets new standards in safety and reliability.
TA35 / TA36 - Thermal-Magnetic Circuit Breakers
Circuit breakers are usually designed according to the thermal principle with a bimetal. If a defined temperature is exceeded due to overcurrent, the electric circuit is interrupted. Once the bimetal cooled down, the appliance is ready for use again. However, if a short circuit occurs, the bimetal cannot react fast enough. For this reason, thermal circuit breakers are usually combined with a fuse.
FPAC RAIL - 3-Phase DIN Rail Filter
SCHURTER launches a new 3-phase filter series for DIN rail mounting. Thanks to the slim housing (44 mm), it takes up very little space on the mounting rail in the control cabinet. The single-stage filter is available with standard or high attenuation. A metal base plate ensures an excellent ground connection to the rail.
400 VDC connector according to IEC TS
After launching the first 400 VDC connectors (GP21 and GS21) in accordance with IEC TS 62735, SCHURTER is now adding models GC21 and GH21/GI21 on the device side - of course IEC-compliant. From the network to the device: The SCHURTER 400 VDC family is the first DC connector solution available worldwide to be complete according to IEC TS.

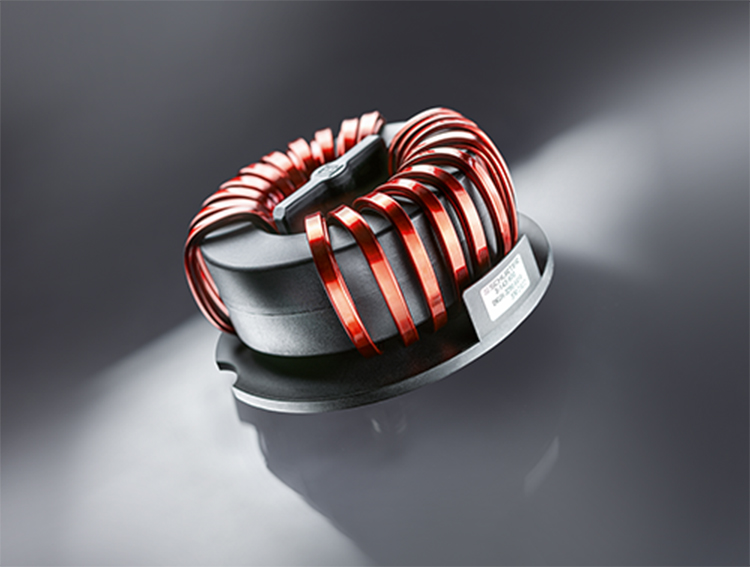

DKUH-1 - Ultra High Current Choke
Powerful energy applications are becoming increasingly compact. This compact design, combined with high energy efficiency, leads to an increase in electromagnetic interference in modern electronic devices. High performance filter elements are required to combat this interference. Due to the compact dimensions, integration of the filter elements on printed circuit boards is an ideal solution. The new DKUH-1 series of chokes is particularly suitable for applications with high power consumption.

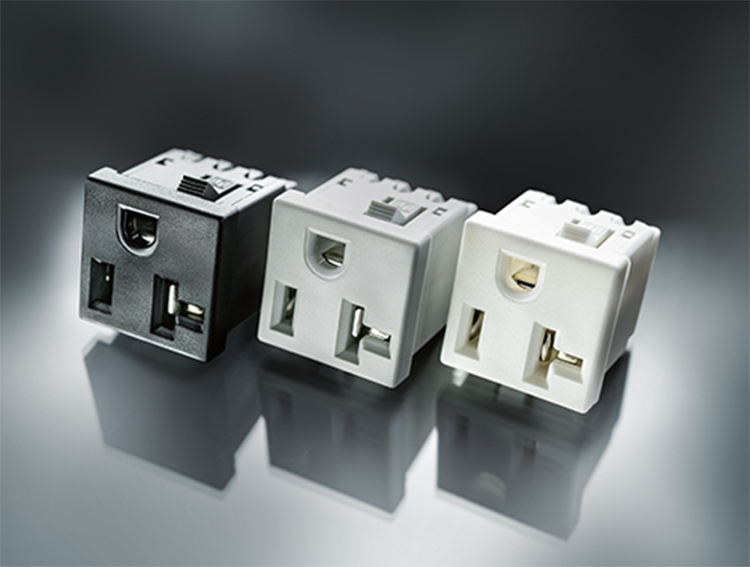

NR520R Receptable 20 A
The SCHURTER NR520R mains socket outlet, as an additional variant to the NR010, NR020 and NR021 models, represents an even more powerful performance to the NEMA mains socket outlet portfolio. The new NR520R complies with UL 498 and CSA C22.2 no. 42.
MSM II Indicator
After the successful introduction of the MSM II Switch family, SCHURTER now introduce the MSM II indicator elements, made from high-quality stainless steel. This unveiling represents a marriage of aesthetics and technology, emphasizing a refined technical approach.

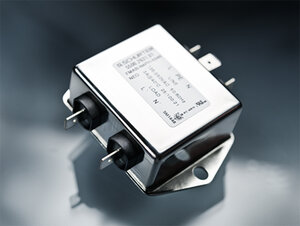

FMAB NEO High Performance
SCHURTER extends the successful FMAB NEO single phase filter family with new highperformance versions for demanding applications. The new filter series is available in standard and medical versions for a rated current range from 1 A to 30 A with quick connect terminals.

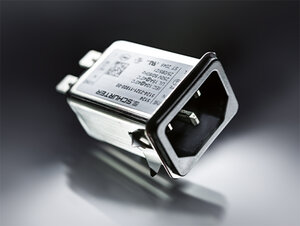

5124 - IEC C14 appliance inlet with high-performance filter
For applications that require particularly high interference immunity, SCHURTER is launching the new high-performance filters of the 5124 series. With identical dimensions to the proven 5120 and 5123 series, both symmetrical and asymmetrical interference signals can be attenuated even better with the 5124 series, thanks to the use of high-performance components.

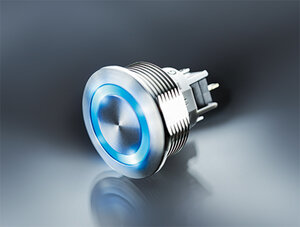

MSM II MO Metal Push Buttons
The MSM push-button family has been successfully used on the market for over 30 years. It is known for its durability, precision and particularly high-quality workmanship. These characteristics - combined with additional features - distinguish the new MSM II generation to the same extent.

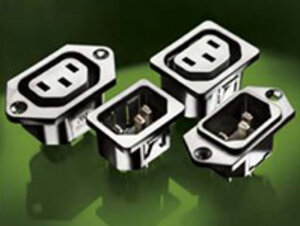

Green Line - Types: 6100-3, 6100-4, 6102-3, 6102-5, 6600-3, 6600-4
Sustainability is no longer a trend, but the order of the day. Wherever we can reduce our carbon footprint, we should do so. For this reason, SCHURTER introduces the new Green Line products. In a first step, these are high-quality products made from bio-based plastics that are made from plant-based raw materials.

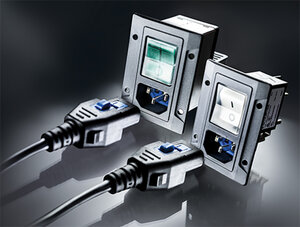

Type DG11/DG12 with Cordset
Protection against dirt particles and moisture is becoming increasingly important. With the product type DG11 and DG12 and the associated V-Lock power cable, SCHURTER is launching an IP54 device connection that also meets very high demands.

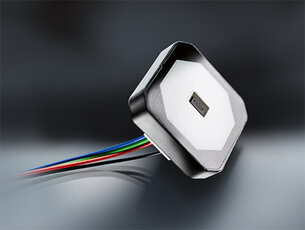

THS - Touchless switch for invisible installation
Conventional switches often require unattractively large mounting holes in the user interface. Not so with the SCHURTER THS: the Touchless Hidden Switch. It can be installed almost invisibly from behind. A tiny cut-out in the user interface is all that is needed and the ToF sensor reliably does its job.

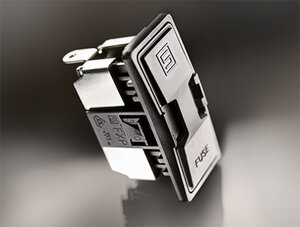

FXP - Fuseholder for very high power
Closed fuse holders are a fine thing: the fuse is well protected and yet easy to replace. According to IEC-60127-6, however, the limit was previously 16 A. Thanks to an extension of this standard initiated by SCHURTER, this is now history. The new FXP fuse holder for 6.3x32 fuse links is designed for rated currents up to 25 A (IEC) or 45 A (UL).

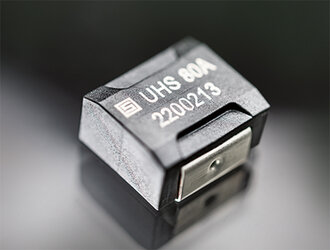

UHS SMD fuse
Even in the SELV range, the range of safety extra-low voltage that is harmless to people even when touched, enormously high currents can flow in the event of a short circuit. SCHURTER responds to this danger with the new, particularly compact SMT fuse UHS.

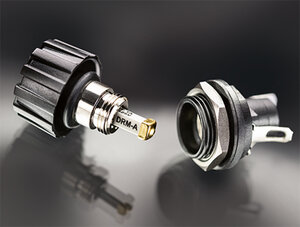

FRM-A and DRM-A
Very small, light and robust: These are increasingly important requirements of the Avionics industry for the components of their suppliers. SCHURTER addresses this need with the FRM-A and DRM-A fuse holder/fuse combination.

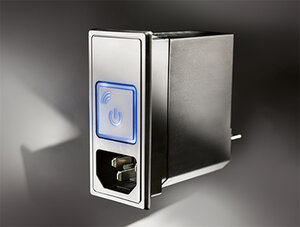

Smart Connector - Intelligent Power Entry Modules
Intelligent Power Entry Modules
SCHURTER presents the new Smart Products. The internal Smart Connector DS11 - the first product of its kind in the world - and the external Smart Connector DT31 make it easy to transform conventional electronic devices into smart devices.

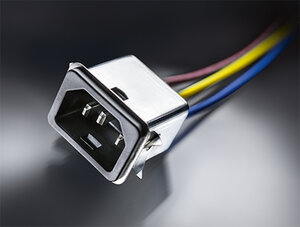

5121 Appliance Inlet Filter
SCHURTER launches a new very compact filter series with the 5121 appliance inlet filter. An IEC C14 inlet is surrounded by a closed metal housing and thus effectively shields the mains input. The new filter series is available as a standard or medical technology version for a rated current up to 10 A / 15 A with wire connections.
FMAB NEO PE-Choke
SCHURTER is expanding the successful FMAB NEO single-phase filter family with new variants. The filter is now available with an additional ground line choke to suppress high-frequency interference on the earth conductor. The new filter series is available in standard and medical versions for a rated current range of 1 A to 20 A with quick connect terminals.
Products
High-quality Swiss Electronic Components since 1933
As a leading Electronic Components innovator and solutions provider, we manufacture electronic components such as circuit protection, connectors, switches, and EMC products.

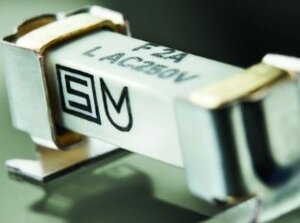

Circuit Protection
Circuit Protection
Fuses, Fuseholders, Circuit Breakers, Voltage Selectors and Accessories
Connectors
Connectors
Power Entry Modules, Connectors, Cord Connectors, Distribution Units, Cord Sets, Accessories and more Connector products
Switches
Switches
Metal Line Switches, Momentary Action Switches, Indicators and Accessories
EMC
EMC
Power Entry Modules with Filter, Block Filter, Suppression Chokes, Pulse Transformers
Customer specific components
Customer specific components
In addition, we work closely together with OEMs and develop at their request HMI solutions or customer specific components which meet their individual requirements. Such products include, for example, cable assembly on SCHURTER components, switches with different designs and materials or specific fuses, and many more.
