Rutronik Development Kit - RDK3

Realizing Secure Wireless Applications

Wireless, intelligent connectivity of individual elements or work processes becomes more crucial. Working steps and objects interact with each other intelligently only with the help of networked systems. That's where the RDK3 comes into play. The aim of the developers from Rutronik System Solutions was to develop a complete solution for Wireless Low-Power Bluetooth connections with high-security features and very low power consumption. The Base Board enables hardware and firmware developers to reduce time and costs in the pre-development phase. This way, it supports bringing new applications much faster to the market.

Flexible Use in High-Growth Future Markets

The RDK3 from Rutronik System Solutions offers developers a perfect starting point for developing their proof-of-concepts for connectivity via Bluetooth. The possible applications are diverse. For example, the Base Board suits a wide range of IoT and cloud-based applications in high-growth future markets. These include Advanced Robotics, Smart Building, Smart Factory, and Healthcare. The integration of Rutronik System Solutions' software into Infineon's ModusToolboxTM supports the variability. As a result, one development environment is available to realize efficiency gains.



"With the RDK3, we offer a flexibly usable solution in a growth market. Our new Base Board supports embedded developers in Wireless Low-Power Bluetooth connections to accelerate their developments and reduce costs."

- Stephan Menze, Head of Global Innovation Management at Rutronik

Advantages of the RDK3 at a glance:

  • Provides a complete solution for hardware and firmware developers to design their own proof-of-concepts
  • State-of-the-art security features thanks to Infineon's PSoCTM 64 Secured MCU
  • Low power consumption through the use of Bluetooth Low-Energy technology
  • Reduces costs and accelerates the pre-development phase
  • Unique combination of state-of-the-art components, all available in Rutronik's product portfolio
  • Experts from Rutronik System Solutions are on hand to provide advice
  • Thanks to the Arduino interface, the RDK3 can be combined with all other adapter boards from Rutronik System Solutions such as the HMS Anybus, Text To Speech, RAB1 and RAB2

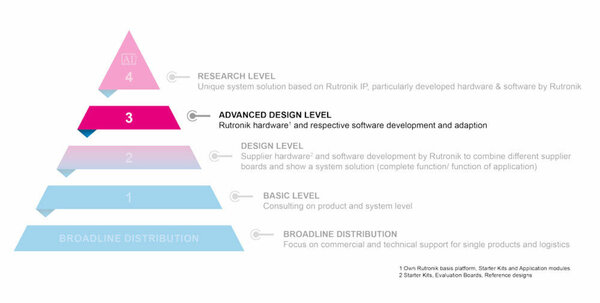

Rutronik Solutions Level 3 – Advanced Design Level

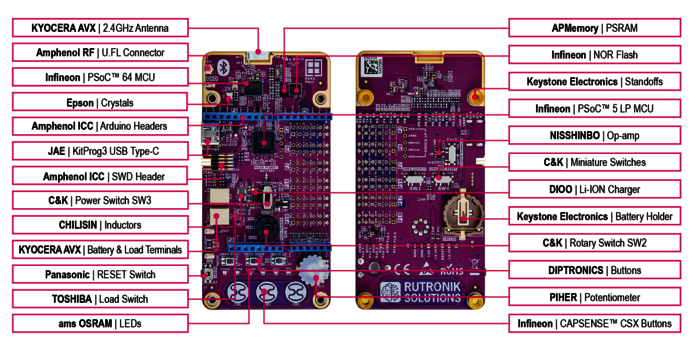

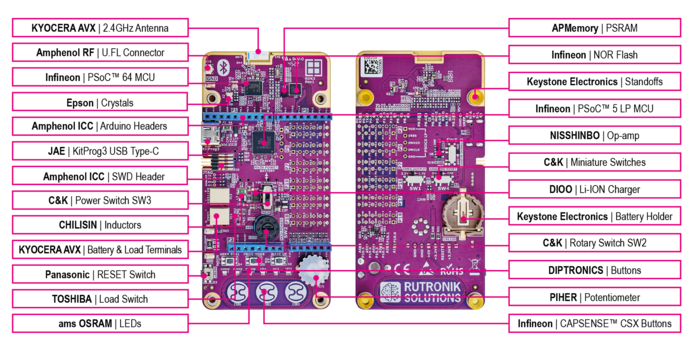

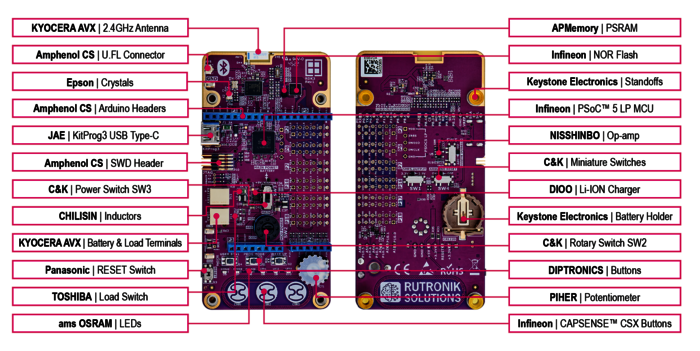

Unique Combination of Components

What makes the RDK3 so unique? The answer is simple: The combination of state-of-the-art components on just one board by the experts at Rutronik System Solutions. There is no comparable solution on the market. Performance, availability, and perfect interaction were the key factors in the selection of the components. In addition, Rutronik System Solution provides software stacks that allow tests in an uncomplicated way.

Features:

Description:

CYB06447BZI-BLD53 MCU:

Infineon’s High-Performance, Ultra-Low-Power secured MCU with BLE Subsystem integrated.

CYB06447BZI-BLD53 GPIOs:

All the CYB06447BZI-BLD53 GPIOs are accessible via onboard headers.

KitProg3 Debugger:

On-board debugger KitProg3 with I2C and UART USB bridge. The KitProg3 Debugger is based on a CY8C5868LTI-LP039 PSoC™ 5 LP microcontroller.

10-pin ARM SWD Connector:

10-pin Amphenol ICC SWD header for connecting a J-Link.

USB Type-C Connector:

JAE USB Type-C connector DX07S016JA1R1500 for the KitProg3 debugger.

CAPSENSE™ Buttons:

On-board capacitive buttons based on CAPSENSE™ CSX technology.

APS1604M-3SQR-ZR PSRAM:

APMemory External QSPI 16Mbit PSRAM Memory.

S25FL064LABNFI043 FLASH:

Infineon External QSPI 64Mbit NOR Flash.

M830320 Antenna:

On-board 2.45GHz Bluetooth antenna from Kyocera AVX.

A-1JB U.FL Connector:

U.FL connector for the external Bluetooth antenna from Amphenol RF.

USB0002DP TVS:

Kyocera AVX multilayer ceramic transient voltage suppressors for the USB.

009296002202906 Connectors:

Kyocera AVX 9296 series POKE-HOME connectors.

BD83070GWL Buck/Boost SMPS:

Switching mode power supply from ROHM. Easy to change output voltages between 3.3V and 2.5V.

DIO59020CD12 Charger:

Single Cell Li-ION Battery charger with USB-OTG Boost from DIOO.

CR1220 Battery Socket:

Keystone Electronics Corp. CR1220 coin battery socket for RTC and low-power applications. P/N1056

MCU Current Monitoring:

Current monitoring shunt resistor with Keystone Electronics Corp. P/N5019 test points.

TCK1024G,LF Load Switches:

TOSHIBA Load Switches (with the current limiting capability).

NJU77001F Op-Amp:

NISSHINBO low power amplifier (acts as voltage follower and buffer in KitProg3 circuit).

Arduino Headers:

Amphenol ICC Arduino Headers. Part No: 75915-306LF; 75915-308LF; 75915-310LF;

Mechanical Buttons:

DIPTRONICS tactile buttons. Part No: TBFF22KQR.

Reset Switch:

EVQPUC02K Right-angled tactile switch from Panasonic.

Rotary Switch:

RM107002BCB Rotary switch for power supply selections from C&K.

Slider Switches:

JS202011JCQN Slider switch for power supply selections from C&K.

Potentiometer:

PIHER Potentiometer for ADC peripheral evaluation. Part No.: PT10YV10-103A2020-5-S

Passive components:

Passive components from Samsung EM, Yageo, and ASJ.

Inductors:

CHILISIN Power Inductors. Part No: BKPA002012102R2M00; BDUE002520121R5MQ1; muRata Ferrite Beads. Part No: BLM15BD102SN1D;

Safety first

Security plays a key role in wireless applications. To ensure, the RDK3 builds on Infineon's PSoCTM 64 Secured MCU with a Platform Security Architecture (PSA). The dual-core microcontroller features three-level hardware and firmware-based isolation. The Arm Dual-Cortex M-Core SOC provides a secure M0+core and performs all security functions. It's separated from the user applications running in parallel on the Arm Cortex-M4 core. In addition, the MCU provides secure elementary functions for authentication, e. g. via secure onboarding, secure boot, and secure firmware updates.
