About Kontron

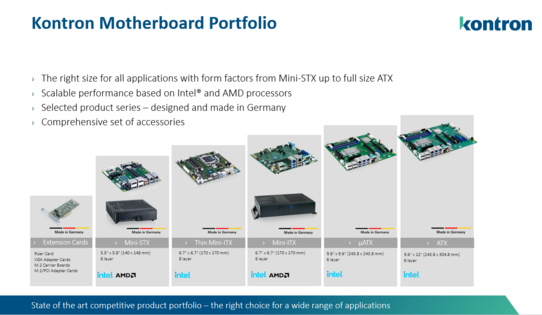

Kontron offers a comprehensive portfolio of high quality, long-term available and competitive motherboards - designed and made in Germany. The comprehensive line-up, from compact Mini-STX up to full-sized ATX form factor fulfills most different requirements for various applications from diverse vertical markets like Industrial Automation, POS/POI, KIOSK, Digital Signage, Medical, Casino Gaming, Video Surveillance or Transportation.
Kontron motherboards support latest processors and chipset platforms and utilize advanced technology components. They are designed for continuous operation (24/7) in an extended temperature range and on high system load. Kontron motherboards are specified for a temperature range between 0 °C and max. 60 °C and come up with an availability of up to 7 years from the release date, based on embedded key components. In addition, a corresponding portfolio of chassis kit solutions (SMARTCASE™), add on cards and related 3rd party accessories is also available. Furthermore, Kontron offers many value-added services like detailed documentation, a professional life-cycle management and customizing tools.
New Product Introduction
Kontron D3724-R mSTX
Kontron´s industrial motherboard D3724-R mSTX, based on the successful AMD Ryzen™ Embedded R2000 series, ensures brilliant graphics performance and supports up to four independent displays in 4K resolution thanks to the SoC integrated AMD Radeon™ Vega GPU. Therefore, it is particularly suitable for embedded graphics applications such as professional Casino Gaming systems, Medical displays, Thin Clients and Industrial PCs as well as for KIOSK, Infotainment or Digital Signage systems.

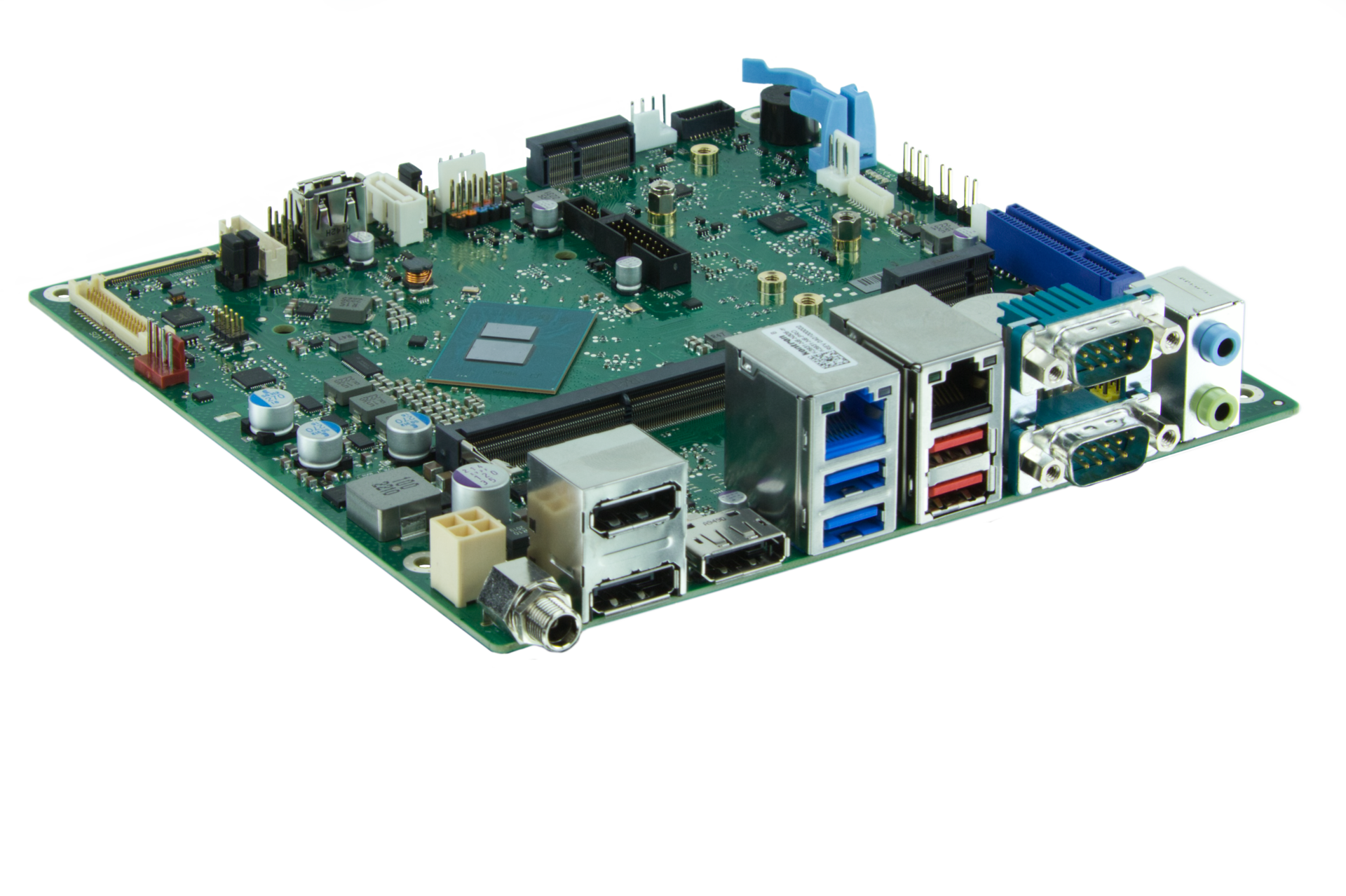

Industrial Motherboard K3931-N mITX
The successor of the well-known D3543-S mITX supports the new and power-saving Intel® Core™ i3 processors & Intel® Processors N-series (Alder Lake N). The K3931-N mITX comes up with extensive features on a small form factor, such as DDR5 memory support, Intel® 2.5 GbE LAN and 4x COM – also with KIOSK relevant functions like ccTalk. Due to its high graphics performance and the support of up to three independent displays, it is particularly well suited for use in casino, KIOSK, POS/POI and digital signage applications.

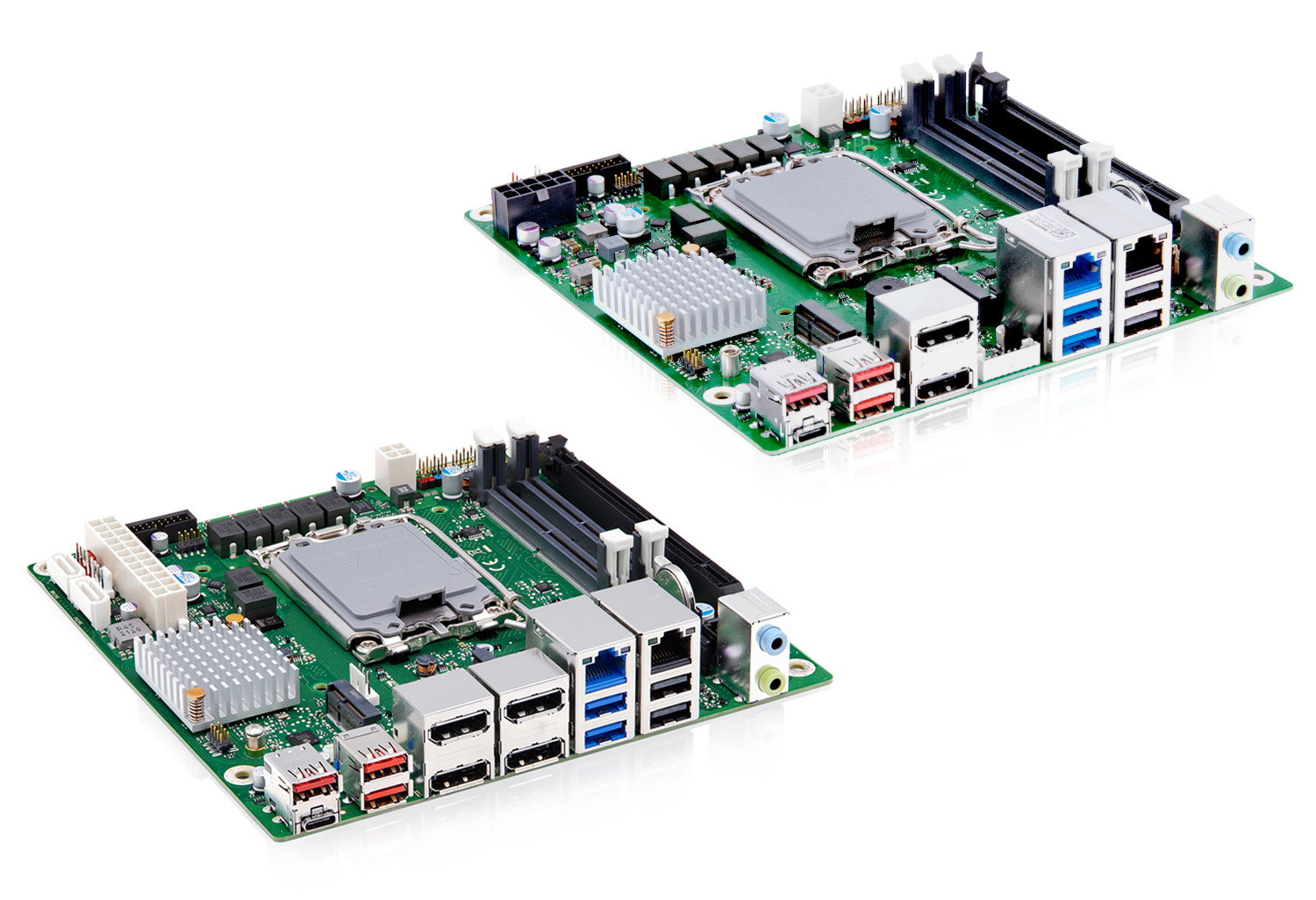

K3833-Q & K3832-Q mITX
The new Mini-ITX motherboards K3833-Q and K3832-Q impress with enormous scalability of computing power from Intel® Celeron® to Core™ i9 CPUs (12th,13th & 14th Gen) as well as extensive expansion options. They are equipped with the powerful Intel® Q670E chipset and designed for 24/7 continuous operation at 60 °C. The K3833-Q mITX motherboard with ATX (multi-rail) power supply offers four DisplayPorts V1.4a @4k as well as an embedded DisplayPort eDP V1.4b. The K3832-Q mITX comes up with a classic single 12 V supply or innovative dual power supply - the Intel® standard ATX12VO. This variant is equipped with two DisplayPorts V1.4a @4k, a dual channel LVDS and an eDP V1.4b.
Featured Products
ATX
Kontron provides Motherboards in ATX format, a well accepted PC standard for all types of PC systems, supporting current Intel processors:
K3851-R ATX
- Intel® R680E Chipset
- Supporting the Intel® 12th,13th & 14th Generation Core™ i9/i7/i5/i3 Processors
- Triple Intel® LAN 1 GbE/2.5 GbE incl. iAMT & Teaming
- Dual M.2 Key-M SSD & single M.2 Key-E WLAN sockets onboard, 6x PCI Express slots incl. 1x PCIe Gen5
- Powerful USB 3.2 Gen2/Type-C, 4x COM, GPIO
D3646-S ATX
- Intel® C246 Chipset
- Supporting the Intel® 9th Generation Core™ i9/i7/i5/i3 Processors and Intel® Xeon® E-21xx/22xx Processors
- Dual LAN, 4x COM, GPIO & 2x PCI
- M.2 SSD & M.2 WLAN Slots onboard
- Powerful USB 3.2 Gen2

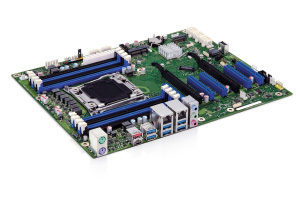

D3598-B ATX
- Intel® C422 "BasinFalls W"
- Supporting the Intel® Xeon® W-21xx/22xx Processors
- 2x PCIe x16
- Intel® VROC Support
- Dual LAN & Mini-PCIe
D3598-G ATX
- Intel® X299 Workstation Chipset
- Supporting the Intel® Core™ i7/i9 X-series processors
- 2x PCIe x16
- Intel® VROC Support
- Dual LAN & Mini-PCIe
µATX
Micro-ATX or µATX is a standard form factor for motherboards. Micro-ATX boards are backward-compatible with ATX as the mounting points are in the same places and come with a full range of integrated peripherals. Kontron offers the following industrial and extended lifecycle motherboards, supporting the current Intel® processors:
K3841-Q µATX
- Intel® Q670E Chipset
- Supporting the 12th,13th & 14th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- Triple Intel® LAN 1GbE/2.5GbE incl. Teaming
- Powerful USB 3.2 Gen 2/Type-C, 4x COM, GPIO, Dual M.2 Key-M SSD & single M.2 Key-E WLAN sockets onboard
- PCI Express® x16 (Gen5 @ CPU, Gen4 @ PCH)
K3842-Q µATX
- Intel® Q670 Chipset
- Supporting the 12th,13th & 14th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- Powerful USB 3.2 Gen 2/Type-C, 1x COM (RS-232)
- Supporting Intel® AMT 16.0, PCI Express® x16 (Gen5 @ CPU, Gen4 @ PCH)
- TPM 2.0 onboard for Windows 11 support
K3843-B µATX
- Cost-effective Intel® B660 platform
- Supporting the 12th,13th & 14th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- 4x DP, 4x PCI Express, 4x USB 3.2 (Gen1/Gen2)
- PCI Express® x16 (Gen5 @ CPU, Gen4 @ PCH), 1x Intel® GbE LAN
- TPM 2.0 onboard for Windows 11 support
D3641-S µATX
- Intel® C246 Chipset
- Supporting the 9th Gen. Intel® Core™ i9/i7/i5/i3 Processors and Intel® Xeon® E-21xx/22xx Processors
- Supporting Intel® AMT 12.0/vPro
- Dual LAN, 4x COM, GPIO
- M.2 SSD & M.2 WLAN Slots onboard

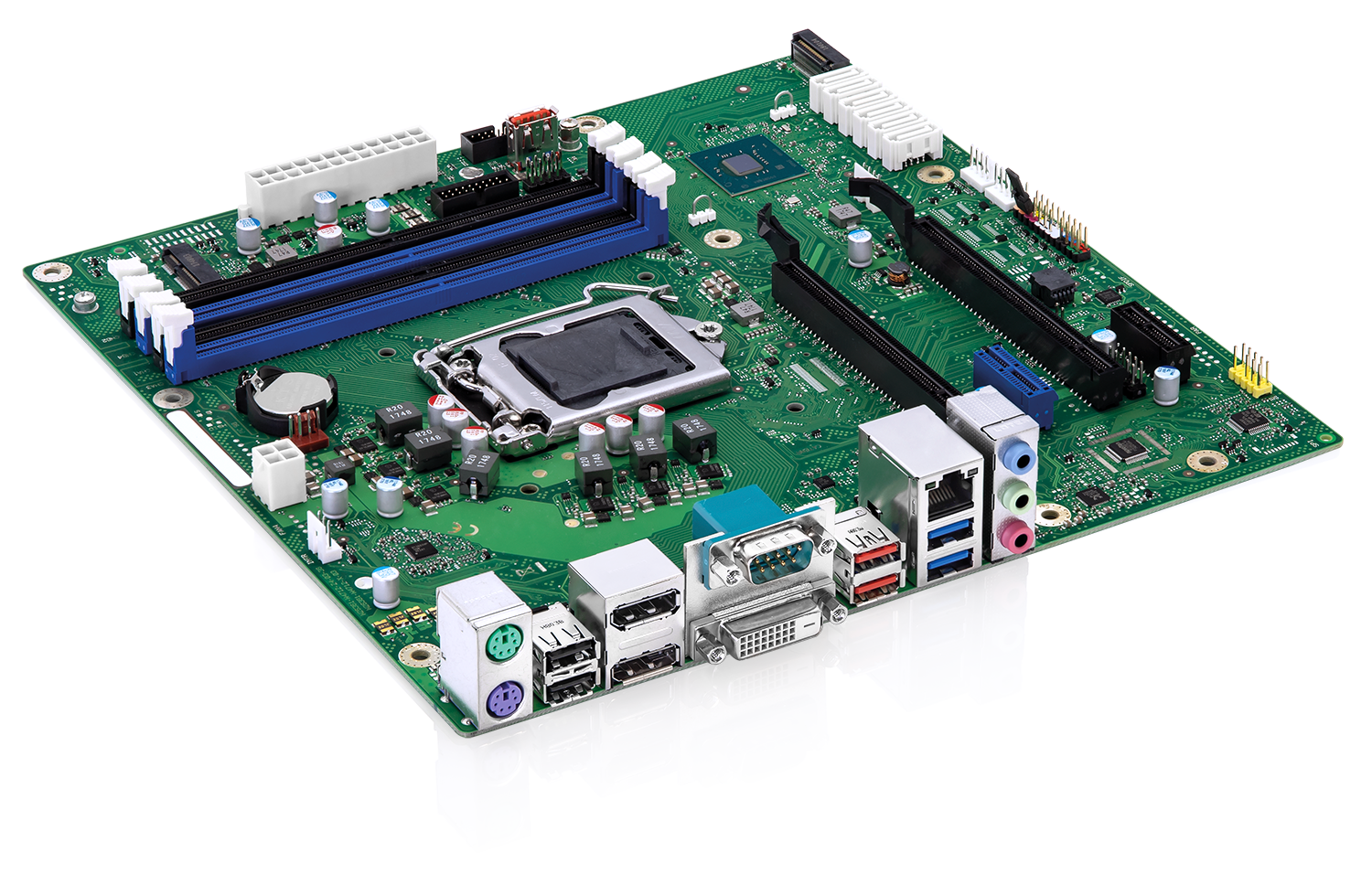

D3644-B µATX
- Intel® C246 Chipset
- Supporting the 9th Gen. Intel® Core™ i9/i7/i5/i3 Processors and Intel® Xeon® E-21xx/22xx Processors
- Supporting Intel® AMT 12.0/vPro
- 6x SATA/RAID
- M.2 SSD & M.2 WLAN Slots onboard

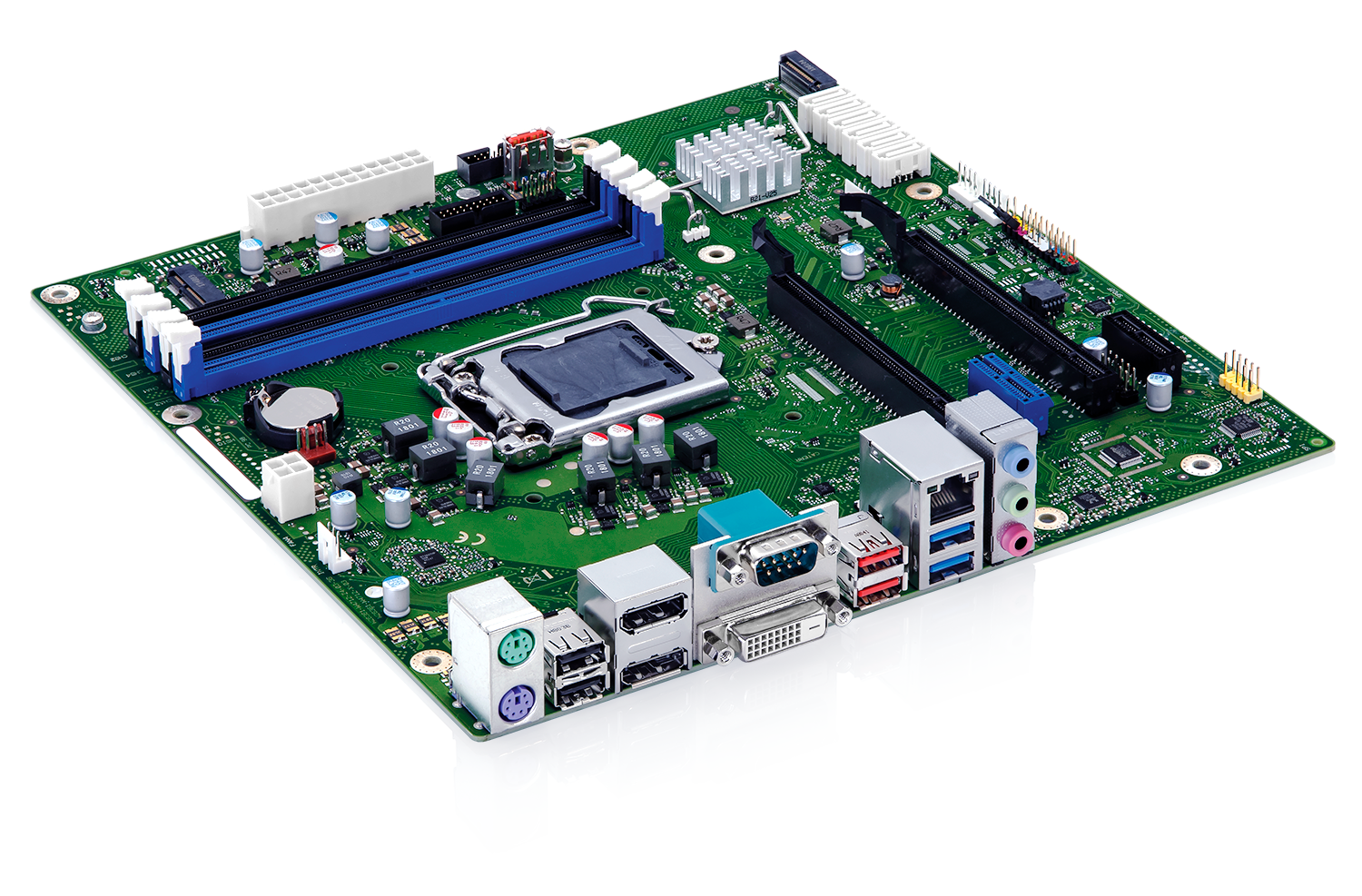

D3642-B µATX
- Intel® Q370 Chipset
- Supporting the 9th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- Supporting Intel® AMT 12.0/vPro
- 6x SATA/RAID
- M.2 SSD & M.2 WLAN Slots onboard

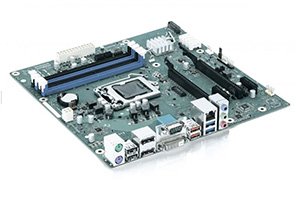

D3643-H µATX
- Intel® B360 Chipset
- Supporting the 9th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- 4x SATA
- M.2 SSD slot onboard
- Intel® LA
(Thin-) Mini-ITX
Kontron offers motherboards in Mini-ITX format, which is mechanically compatible with ATX motherboards and supports the current AMD and Intel processor series. There is also a motherboard available, that comes in a very thin format.
K3833-Q mITX
- Intel® Q670E Chipset
- Supporting the 12th,13th & 14th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- Dual Intel® LAN 1GbE/2.5GbE incl. Teaming
- Intel® AMT-based Out-of-Band-Management
- 4x DisplayPort v1.4a @4k & eDP v1.4b, PCIe x16 Gen5 (16 Lanes)
K3832-Q mITX
- Intel® Q670E Chipset
- Supporting the 12th,13th & 14th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- Dual Intel® LAN 1GbE/2.5GbE incl. Teaming
- 2x DisplayPort v1.4a @4k, 1x Dual Channel LVDS & 1x eDP v1.4b
- Combined Single 12V PSU or ATX12VO (Intel-compliant) PSU
D3723-R mITX
- AMD Embedded Ryzen™ R2000 series SoC
- AMD Radeon™ Vega Graphics (within SoC)
- Up to 4x DisplayPort V1.4
- Dual Channel LVDS (24 Bit) and eDP V1.3 (4 k) onboard
- WideRange DC Input (8-34V)
D3713-V/R mITX
- AMD Ryzen™ Embedded V1000/R1000 series SoC
- AMD Radeon™ Vega Graphics (within SoC)
- Up to 4x DisplayPort V1.4
- Dual Channel LVDS (24 Bit) and eDP V1.3 (4 k) onboard
- WideRange DC Input (8-34V)
D3633-S mITX
- Intel® Q370 Chipset
- Supporting the 9th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- Supporting Intel® AMT 12.0/vPro
- Dual Channel LVDS & eDP
- ATX PSU or Single 12V supply
D3634-S mITX
- Intel® H310 Chipset
- Supporting the 9th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- Dual channel LVDS & eDP
- M.2 SSD & Mini-PCIe Socket
- ATX PSU or Single 12 V Supply
D3543-S mITX
- Intel® Celeron® Processor J4005/J4105 & Intel® Pentium® Silver Processor J5005
- Dual DP V1.2, LVDS & eDP V1.4
- M.2 SSD & M.2 WLAN Slots onboard
- HW Watchdog, GPIO & PCIe Slots
- Wide Range & DC Power Supply (8 V-36 V)
D3674-B Thin mITX
- Intel® H310 Chipset
- Supporting the 9th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- Intel® HD Graphics (DX12, integrated in processor)
- HDMI V1.4, DP V1.2 and Dual Channel LVDS support
- 8 Bit GPIO
Mini-STX
Mini-STX is a form factor for motherboards with a small footprint (147 x 140 mm) which supports upgradable processors and offers various connectivity options. Kontron offers 3 different Mini-STX motherboards, which are ideal for use in small, energy-saving, and powerful computer systems:

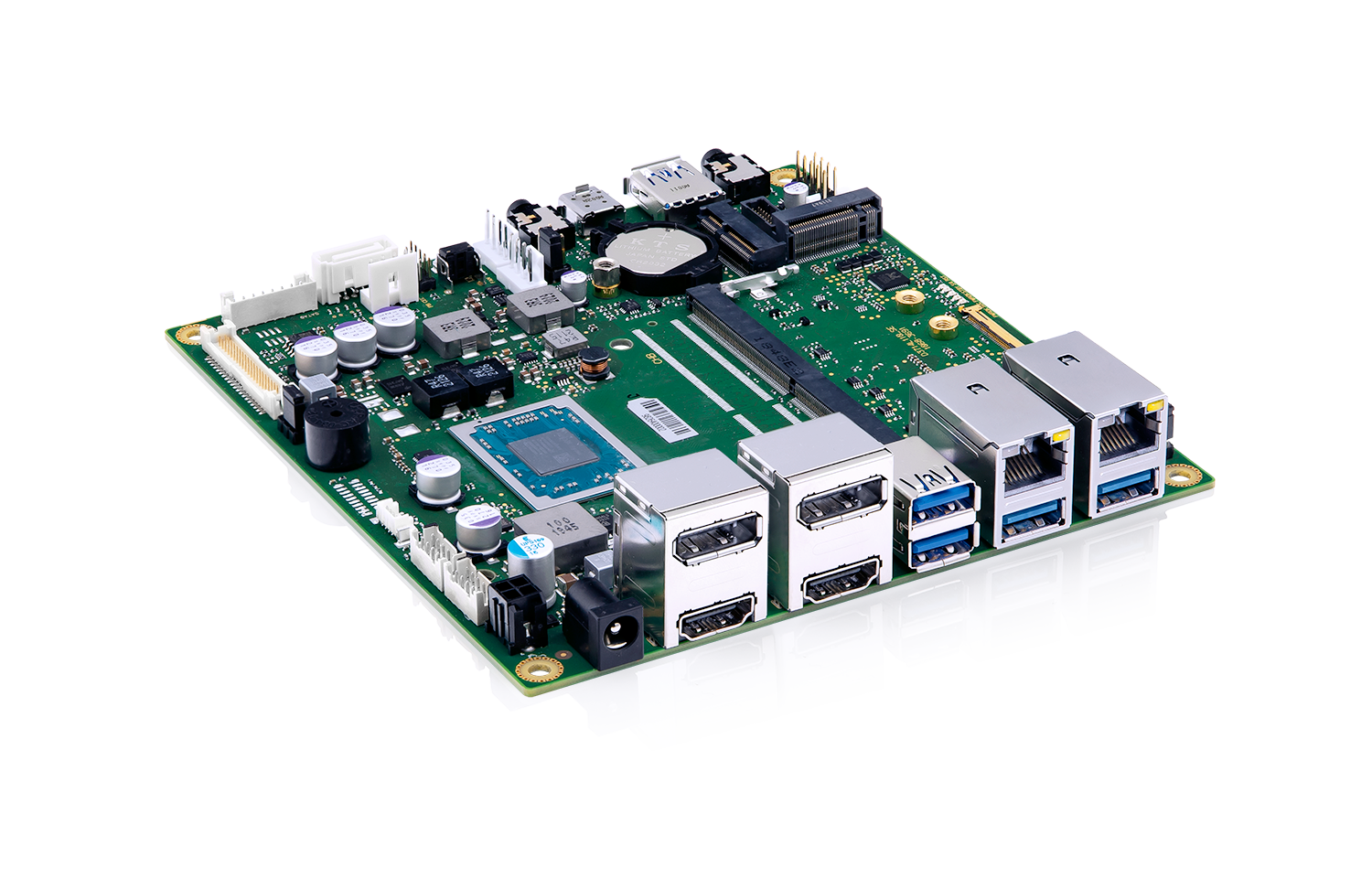

D3714-V/R mSTX
- AMD Ryzen™ Embedded V1000 and R1000 series processors
- AMD Radeon™ Vega Graphics (within SoC)
- Up to 3x DisplayPort V1.4 plus HDMI V2.0b
- Dual Channel LVDS (24 Bit) and eDP V1.3 (4 k) onboard
- M.2 Key-M (SSD) and Key-E (WLAN/BT) supported
D3724-R mSTX
- AMD Ryzen™ Embedded R2000 series processors
- AMD Radeon™ Vega Graphics (within SoC)
- Up to 3x DisplayPort V1.4 plus HDMI V2.0b
- Dual Channel LVDS (24 Bit) and eDP V1.3 (4 k) onboard
- MS Windows 11 Support

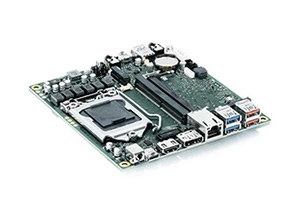

D3664-B mSTX
- Intel® Q370 Chipset
- Supporting the Intel® 9th Generation Core™ i9/i7/i5/i3 Processors
- HDMI V1.4 and DP V1.2
- M.2 SSD & M.2 WLAN Slots onboard
- Powerful USB 3.2 Gen2

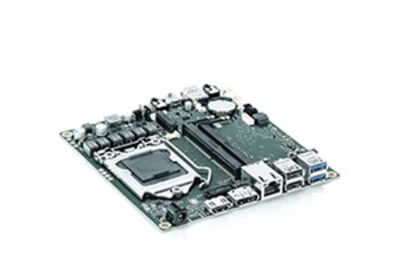

D3654-B mSTX
- Intel® H310 Chipset
- Supporting the Intel® 9th Generation Core™ i9/i7/i5/i3 Processors
- HDMI V1.4 and DP V1.2
- M.2 SSD & M.2 WLAN Slots onboard
- HW Watchdog
D3544-S mSTX
- Intel® Celeron® Processor J4005/J4105 & Intel® Pentium® Silver Processor J5005
- Dual DP V1.2a, LVDS & eDP
- M.2 SSD & M.2 WLAN Slots onboard
- HW Watchdog & GPIO
- Wide Range DC Power Supply (8 V-24 V)
SMARTCASE™
Besides the Industrial Motherboard portfolio Kontron provide the small and stylish SMARTCASE™ solutions. With this kit solution including chassis, motherboard and further accessories you can build your own Box PC. Approved for EMC according to CE and FCC/B, the chassis family is applicable in different areas with high demands, e.g. industry or digital signage. It´s a modularized, compact and flexible IPC Chassis family. In addition, they are thermally approved up to 45°C and integrate a 2.5" drive bay for HDD/SDD with cooler as well as further expandability options eager graphics cards or Bluetooth/WIFI. The thin and smart chassis allows the usage in horizontal and vertical position, partly even in enhanced temperature related environments. SMARTCASE™ solutions are applicable in many branches:
- Digital Signage
- Gambling
- Vending/POS/ATM/Kiosk/Ticketing
- Industrial Automation
Kontron offers the following portfolio:

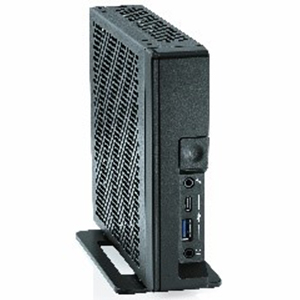

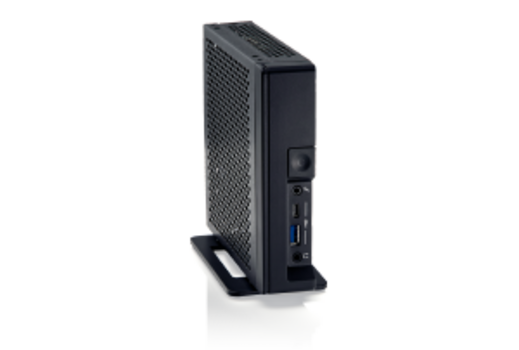

SMARTCASE™ S511
- Suitable for D3714-R mSTX & D3724-R mSTX
- 36 x 147 x 165 mm
- Front and Rear USB
- Horizontal or Vertical Operation
- VESA- and Wall Mount Option

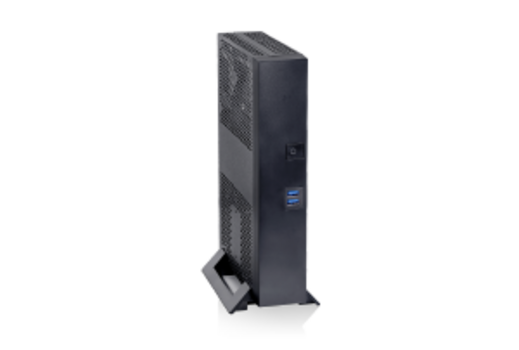

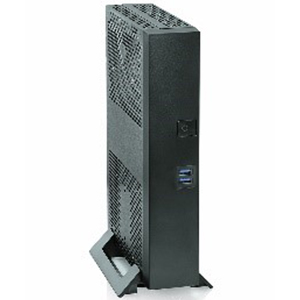

SMARTCASE™ S711
- Suitable for D3713-V/R mITX & D3723-R mITX
- 250 x 52 x 191 mm
- Dual Front USB 3.2 Connectors
- Option for Internal 65W PSU Module
- Horizontal and Vertical Stand plus Wall Mount Bracket
SMARTCASE™ S500
- Suitable for D3544-Sx mSTX
- 36 x 147 x 165 mm
- Front and Rear USB
- Horizontal or Vertical Operation
- VESA- and Wall Mount Option
SMARTCASE™ S520
- Suitable for D343x-S, D363x-S mITX
- 250 x 52 x 191 mm
- Low Profile Extension Slot
- Option for Internal 65W PSU Module
- Horizontal and Vertical Stand plus Wall Mount Bracket

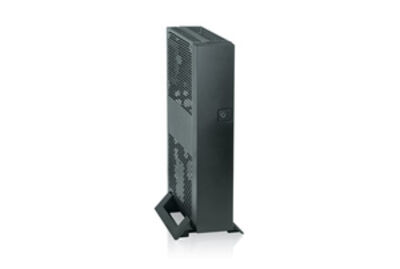

SMARTCASE™ S700
- Suitable for D3543-Sx mITX
- 250 x 52 x 191 mm
- Low Profile Extension Slot
- Option for Internal 65W PSU Module
- Horizontal and Vertical Stand plus Wall Mount Bracket
SMARTCASE™ S720
- Suitable for D343x-S, D363x-S mITX
- 250 x 52 x 191 mm
- Low Profile Extension Slot
- Option for Internal 65W PSU Module
- Horizontal and Vertical Stand plus Wall Mount Bracket
