About Kontron Motherboards
Kontron offers a comprehensive portfolio of high quality, long-term available and competitive motherboards - designed and made in Germany. The comprehensive line-up, from compact Mini-STX up to full-sized ATX form factor fulfills most different requirements for various applications from diverse vertical markets like Industrial Automation, POS/POI, KIOSK, Digital Signage, Medical, Casino Gaming, Video Surveillance or Transportation.
Kontron motherboards support latest processors and chipset platforms and utilize advanced technology components. They are designed for continuous operation (24/7) in an extended temperature range and on high system load. Kontron motherboards are specified for a temperature range between 0 °C and max. 60 °C and come up with an availability of up to 7 years from the release date, based on embedded key components. In addition, a corresponding portfolio of chassis kit solutions (SMARTCASE™), add on cards and related 3rd party accessories is also available. Furthermore, Kontron offers many value-added services like detailed documentation, a professional life-cycle management and customizing tools.
New Product Introduction
Kontron K4021-U mSTX
The Industrial Motherboard K4021-U mSTX features the latest Intel® Core™ Ultra 7 & 5 Processors with new integrated NPU for dedicated AI acceleration. It supports multiple displays with two DisplayPorts, one via front USB Type-C and one via rear USB Type-C with Thunderbolt 4. Onboard connectors for Embedded DisplayPort and Dual-Channel 24bit LVDS panels are included, enabling up to four independent 4K displays or two at 8K resolution. With four M.2 connectors, GPIO, COM ports, and USB 3.2 Gen2, it is designed for 24/7 use in demanding environments, supporting temperatures up to 60°C.
Kontron K3836-Q/R mITX
The K3836-Q/R mITX motherboard, successor to the D3633-S, combines proven functionality with the latest Intel® Core™ processors (12th/13th/14th Gen). Developed in Germany, it offers two configurations: the K3836-R with Intel® R680E chipset and ECC support, and the K3836-Q with Q670 chipset. It features 2x Intel® LAN, PCIe x16 Gen5, USB ports, and DisplayPorts supporting 8K graphics. Built for 24/7 operation at up to 60°C, it's ideal for industrial, medical, and infotainment applications.
Kontron K3921-N mSTX
The Industrial Motherboard K3921-N mSTX features Intel® Core™ i3 and Intel® N-Series Processors with powerful UHD Gen12 graphics using Intel® Xe architecture. It supports up to three displays (2x 4K + 1x FHD) via two DisplayPorts 1.4, front USB Type-C, Embedded DisplayPort, and LVDS. Equipped with two M.2 connectors, GPIO, COM ports, and USB 3.2 Gen2, it’s built for 24/7 operation in temperatures up to 60°C, ideal for various vertical markets.
Featured Products
ATX
Kontron provides Motherboards in ATX format, a well accepted PC standard for all types of PC systems, supporting current Intel processors:
K3851-R ATX
- Intel® R680E Chipset
- Supporting the Intel® 12th,13th & 14th Generation Core™ i9/i7/i5/i3 Processors
- Triple Intel® LAN 1 GbE/2.5 GbE incl. iAMT & Teaming
- Dual M.2 Key-M SSD & single M.2 Key-E WLAN sockets onboard, 6x PCI Express slots incl. 1x PCIe Gen5
- Powerful USB 3.2 Gen2/Type-C, 4x COM, GPIO
D3646-S ATX
- Intel® C246 Chipset
- Supporting the Intel® 9th Generation Core™ i9/i7/i5/i3 Processors and Intel® Xeon® E-21xx/22xx Processors
- Dual LAN, 4x COM, GPIO & 2x PCI
- M.2 SSD & M.2 WLAN Slots onboard
- Powerful USB 3.2 Gen2
µATX
Micro-ATX or µATX is a standard form factor for motherboards. Micro-ATX boards are backward-compatible with ATX as the mounting points are in the same places and come with a full range of integrated peripherals. Kontron offers the following industrial and extended lifecycle motherboards, supporting the current Intel® processors:
K3841-Q µATX
- Intel® Q670E Chipset
- Supporting the 12th,13th & 14th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- Triple Intel® LAN 1GbE/2.5GbE incl. Teaming
- Powerful USB 3.2 Gen 2/Type-C, 4x COM, GPIO, Dual M.2 Key-M SSD & single M.2 Key-E WLAN sockets onboard
- PCI Express® x16 (Gen5 @ CPU, Gen4 @ PCH)
K3842-Q µATX
- Intel® Q670 Chipset
- Supporting the 12th,13th & 14th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- Powerful USB 3.2 Gen 2/Type-C, 1x COM (RS-232)
- Supporting Intel® AMT 16.0, PCI Express® x16 (Gen5 @ CPU, Gen4 @ PCH)
- TPM 2.0 onboard for Windows 11 support
K3843-B µATX
- Cost-effective Intel® B660 platform
- Supporting the 12th,13th & 14th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- 4x DP, 4x PCI Express, 4x USB 3.2 (Gen1/Gen2)
- PCI Express® x16 (Gen5 @ CPU, Gen4 @ PCH), 1x Intel® GbE LAN
- TPM 2.0 onboard for Windows 11 support
D3641-S µATX
- Intel® C246 Chipset
- Supporting the 9th Gen. Intel® Core™ i9/i7/i5/i3 Processors and Intel® Xeon® E-21xx/22xx Processors
- Supporting Intel® AMT 12.0/vPro
- Dual LAN, 4x COM, GPIO
- M.2 SSD & M.2 WLAN Slots onboard
(Thin-) Mini-ITX
Kontron offers motherboards in Mini-ITX format, which is mechanically compatible with ATX motherboards and supports the current AMD and Intel processor series. There is also a motherboard available, that comes in a very thin format.
K3836-Q/R mITX
- Intel® Q670 or R680E Chipset
- Supporting the 12th,13th & 14th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- Dual LAN 1GbE/2.5GbE incl. Teaming, TSN & iAMT Support
- 4x DP up to 8K resolution, 1x eDP & 1x LVDS; 13x USB ports
- Combined ATX Standard PSU or Single 12V Supply
K3831-H Thin mITX
- Intel® H610 Chipset
- Supporting the 12th,13th & 14th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- DPP-, HDMI-, and LVDS- support
- Dual LAN 1GbE incl. Teaming
- M.2 Key-M Gen4 & Key-E; Powerful USB 3.2 Gen2
K3931-N mITX
- Intel® Core® i3 Processors & Intel® Processors N-series
- Intel® UHD Gen12 Graphics – driven by Intel® Xe Architecture (within SoC)
- Up to 3x DP V1.4
- 1x eDP v1.4b (4K) & 1x LVDS
- ccTalk
K3833-Q mITX
- Intel® Q670E Chipset
- Supporting the 12th,13th & 14th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- Dual Intel® LAN 1GbE/2.5GbE incl. Teaming
- Intel® AMT-based Out-of-Band-Management
- 4x DisplayPort v1.4a @4k & eDP v1.4b, PCIe x16 Gen5 (16 Lanes)
K3832-Q mITX
- Intel® Q670E Chipset
- Supporting the 12th,13th & 14th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- Dual Intel® LAN 1GbE/2.5GbE incl. Teaming
- 2x DisplayPort v1.4a @4k, 1x Dual Channel LVDS & 1x eDP v1.4b
- Combined Single 12V PSU or ATX12VO (Intel-compliant) PSU
D3723-R mITX
- AMD Embedded Ryzen™ R2000 series SoC
- AMD Radeon™ Vega Graphics (within SoC)
- Up to 4x DisplayPort V1.4
- Dual Channel LVDS (24 Bit) and eDP V1.3 (4 k) onboard
- WideRange DC Input (8-34V)
D3713-V/R mITX
- AMD Ryzen™ Embedded V1000/R1000 series SoC
- AMD Radeon™ Vega Graphics (within SoC)
- Up to 4x DisplayPort V1.4
- Dual Channel LVDS (24 Bit) and eDP V1.3 (4 k) onboard
- WideRange DC Input (8-34V)
D3633-S mITX
- Intel® Q370 Chipset
- Supporting the 9th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- Supporting Intel® AMT 12.0/vPro
- Dual Channel LVDS & eDP
- ATX PSU or Single 12V supply
D3634-S mITX
- Intel® H310 Chipset
- Supporting the 9th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- Dual channel LVDS & eDP
- M.2 SSD & Mini-PCIe Socket
- ATX PSU or Single 12 V Supply
D3543-S mITX
- Intel® Celeron® Processor J4005/J4105 & Intel® Pentium® Silver Processor J5005
- Dual DP V1.2, LVDS & eDP V1.4
- M.2 SSD & M.2 WLAN Slots onboard
- HW Watchdog, GPIO & PCIe Slots
- Wide Range & DC Power Supply (8 V-36 V)
D3674-B Thin mITX
- Intel® H310 Chipset
- Supporting the 9th Gen. Intel® Core™ i9/i7/i5/i3 Processors
- Intel® HD Graphics (DX12, integrated in processor)
- HDMI V1.4, DP V1.2 and Dual Channel LVDS support
- 8 Bit GPIO
Mini-STX
Mini-STX is a form factor for motherboards with a small footprint (147 x 140 mm) which supports upgradable processors and offers various connectivity options. Kontron offers 3 different Mini-STX motherboards, which are ideal for use in small, energy-saving, and powerful computer systems:
K3921-N mSTX
- Intel® Core® i3 Processors & Intel® Processors N-series
- Intel® UHD Gen12 Graphics - driven by Intel® Xe architecture (within SoC)
- Up to 2x DisplayPort 1.4 and 1x DisplayPort via USB Type-C
- Dual Channel LVDS (24 Bit) and eDP V1.4b (4 K) onboard
- Designed for fanless operation
K3921-H mSTX
- Intel® Core® i3 Processors & Intel® Processors N-series
- Intel® UHD Gen12 Graphics - driven by Intel® Xe architecture (within SoC)
- Up to 2x DisplayPort 1.4 and 1x DisplayPort via USB Type-C
- eDP V1.4b (4 K) onboard
- Designed for fanless operation
K4021-U mSTX
- Intel® Core™ Ultra 7 & 5 Processors
- Intel® Graphics - driven by Intel® Xe architecture (within SoC)
- Up to four concurrent 4K60 HDR displays or two 8K displays /Thunderbolt 4 support
- Dual Channel LVDS (24 Bit) and eDP V1.4b (4K)
- New integrated NPU for dedicated AI acceleration with up to 20x performance/watt improvement
D3714-V/R mSTX
- AMD Ryzen™ Embedded V1000 and R1000 series processors
- AMD Radeon™ Vega Graphics (within SoC)
- Up to 3x DisplayPort V1.4 plus HDMI V2.0b
- Dual Channel LVDS (24 Bit) and eDP V1.3 (4 k) onboard
- M.2 Key-M (SSD) and Key-E (WLAN/BT) supported
D3724-R mSTX
- AMD Ryzen™ Embedded R2000 series processors
- AMD Radeon™ Vega Graphics (within SoC)
- Up to 3x DisplayPort V1.4 plus HDMI V2.0b
- Dual Channel LVDS (24 Bit) and eDP V1.3 (4 k) onboard
- MS Windows 11 Support

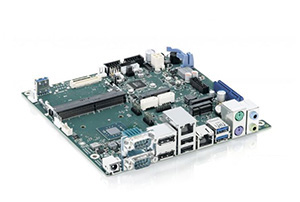

D3544-S mSTX
- Intel® Celeron® Processor J4005/J4105 & Intel® Pentium® Silver Processor J5005
- Dual DP V1.2a, LVDS & eDP
- M.2 SSD & M.2 WLAN Slots onboard
- HW Watchdog & GPIO
- Wide Range DC Power Supply (8 V-24 V)
SMARTCASE™
Besides the Industrial Motherboard portfolio Kontron provide the small and stylish SMARTCASE™ solutions. With this kit solution including chassis, motherboard and further accessories you can build your own Box PC. Approved for EMC according to CE and FCC/B, the chassis family is applicable in different areas with high demands, e.g. industry or digital signage. It´s a modularized, compact and flexible IPC Chassis family. In addition, they are thermally approved up to 45°C and integrate a 2.5" drive bay for HDD/SDD with cooler as well as further expandability options eager graphics cards or Bluetooth/WIFI. The thin and smart chassis allows the usage in horizontal and vertical position, partly even in enhanced temperature related environments. SMARTCASE™ solutions are applicable in many branches:
- Digital Signage
- Gambling
- Vending/POS/ATM/Kiosk/Ticketing
- Industrial Automation
Kontron offers the following portfolio:
SMARTCASE™ S501
- Suitable for K3921-N & K3921-H mSTX
- 36 x 147 x 165 mm
- Front & Rear USB
- Horizontal or Vertical Operation
- VESA- and Wall Mount Option
SMARTCASE™ S730
- Suitable for K3931-N & D3723-R mITX
- 250 x 52 x 191 mm
- Low Profile Extension Slot
- Option for Internal 65W PSU Module
- Horizontal and Vertical Stand plus Wall Mount Bracket
SMARTCASE™ S511
- Suitable for D3714-R mSTX & D3724-R mSTX
- 36 x 147 x 165 mm
- Front and Rear USB
- Horizontal or Vertical Operation
- VESA- and Wall Mount Option
SMARTCASE™ S711
- Suitable for D3713-V/R mITX & D3723-R mITX
- 250 x 52 x 191 mm
- Dual Front USB 3.2 Connectors
- Option for Internal 65W PSU Module
- Horizontal and Vertical Stand plus Wall Mount Bracket
SMARTCASE™ S500
- Suitable for D3544-Sx mSTX
- 36 x 147 x 165 mm
- Front and Rear USB
- Horizontal or Vertical Operation
- VESA- and Wall Mount Option
SMARTCASE™ S720
- Suitable for D343x-S, D363x-S mITX
- 250 x 52 x 191 mm
- Low Profile Extension Slot
- Option for Internal 65W PSU Module
- Horizontal and Vertical Stand plus Wall Mount Bracket
