Moving to USB-C with Infineon´s EZ-PD™ family
Consumer, industrial, communications applications adopt USB-C ports to source power
Target Applications:
Thanks to the high voltage supported, many particularly industrial applications – such as the ones listed below - can benefit from USB-C PD.
- motor control
- vacuum cleaners
- service and (portable) industrial robots
- cobots
- test and measurement systems
- power tools
- cameras
Infineon’s EZ-PD™ portfolio includes two different families of USB-C PD solutions to help you easily integrate USB-C into your embedded application:
EZ-PD™ BCR
Barrel Connector Replacement
Plug&play solution:
- no firmware development
- no USB-C / PD expert knowledge
- no invasive changes to existing designs
Easily replace an old barrel connector or legacy USB connector with a USB-C charging port controller.
EZ-PD™ PMG1
Power Delivery Microcontroller Gen 1
Single-chip solution:
- USB-C port controller + HV MCU
- High-voltage, programmable USB PD solution
- Not compromising control features and adding extra functions to your device
SECTION 1 - EZ-PD™ BCR

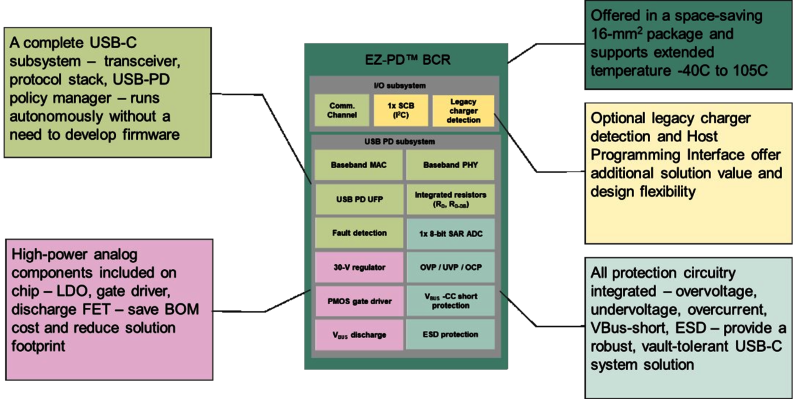

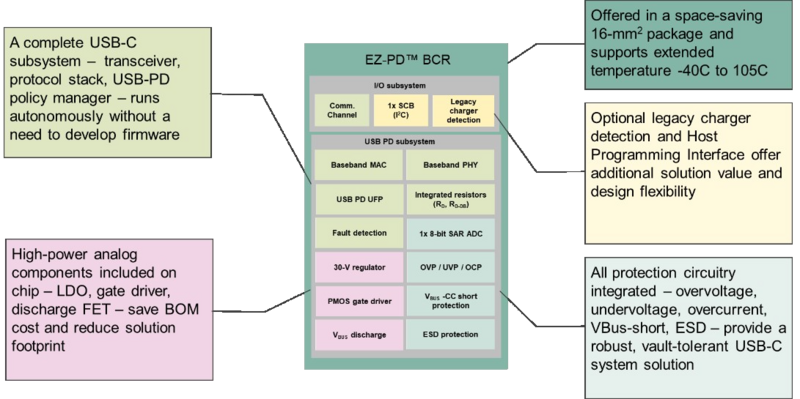

Highly-integrated, pre-programmed USB Type-C charging port controller
Develop a robust USB-C powered system without expert knowledge of the USB-C and Power Delivery standards. No firmware development required.
EZ-PD™ BCR targets all electronic devices with legacy barrel connectors up to 100 W or USB micro-B connectors. It easily adds USB-C power consumer capability to a device, allowing it to be powered by any USB-C power source including:
- USB-C chargers
- power adapters
- power banks
- in-wall or in-car charging ports
EZ-PD™ BCR is compliant with the latest USB Type-C and USB Power Delivery standards. It allows designers to quickly convert their devices’ power input from a barrel connector to a USB-C connector without invasive changes to their existing designs. It contains a market-proven, fully-automated USB Power Delivery policy manager that interoperates with virtually any USB-C power source. To safeguard against system-level fault conditions, EZ-PD™ BCR controllers integrate various protection circuitries including:
- VBus-to-CC short
- Overvoltage
- Overcurrent
- ESD
|
Features |
Benefits |
|
Highly integrated one-chip solutions |
System BOM and board area efficiency |
|
Market-proven USB-IF certified solution with mature design tools |
Low implementation risk and minimized compatibility issues |
|
No expert knowledge of USB-C or USB-PD required |
Shorter development cycle and faster time-to-market |
|
Software utility tools for further configuration options |
Easy to control, monitor and customize |
|
Extended industrial temperature -40°C to 105°C |
Suitable for virtually any commercial or industrial application |
Components
Portfolio - EZ-PD™ BCR family
|
Product name |
|||
|
USB PD role |
UFP (power sink) |
UFP (power sink) |
No |
|
Programmable power supply (PPS) |
Yes |
No |
No |
|
USB Type-C charging (5V@ 0.5A, 0.9A, 1.5A, 3A) |
Yes |
Yes |
Yes |
|
Legacy charging support (BC1.2 and others) |
Yes |
No |
Yes |
|
USB data compatible |
Yes |
Yes |
Yes |
|
VBus gate driver |
PFET |
PFET |
PFET |
|
Supply voltage |
3.0V – 24.5V |
3.0V – 24.5V |
3.0V – 24.5V |
|
VBus to CC short protection (20 V), OVP/UVP |
Yes |
Yes |
Yes |
|
OCP |
Yes |
No |
No |
|
ESD protection on CC, D+/D-, 8kV (contact), 15kV (air) |
Yes |
Yes |
Yes |
|
I2C Interface |
1 |
1 |
1 |
|
EZ-PD™ BCR HPI utility |
Yes |
Yes |
Yes |
|
EZ-PD™ configuration utility |
Yes |
No |
No |
|
Datasheet |
|||
|
Shop |
Development Kits

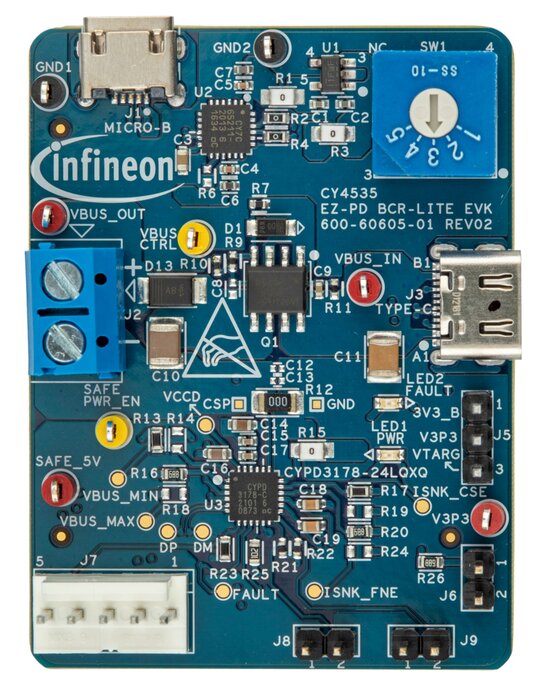

EZ-PD™ BCR-Lite CY4535

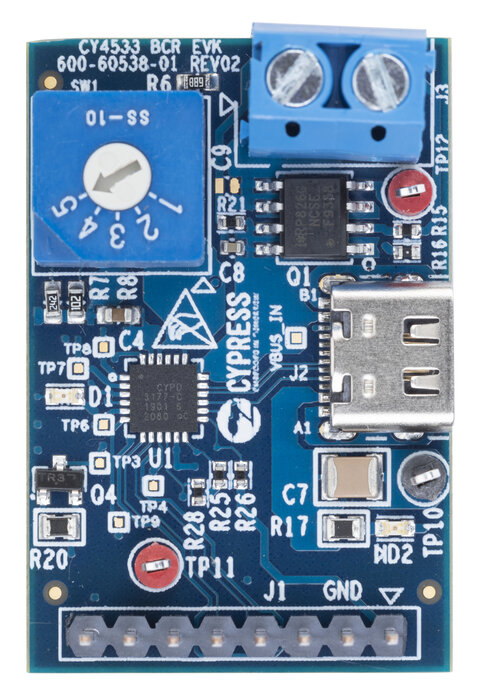

EZ-PD™ BCR CY4533

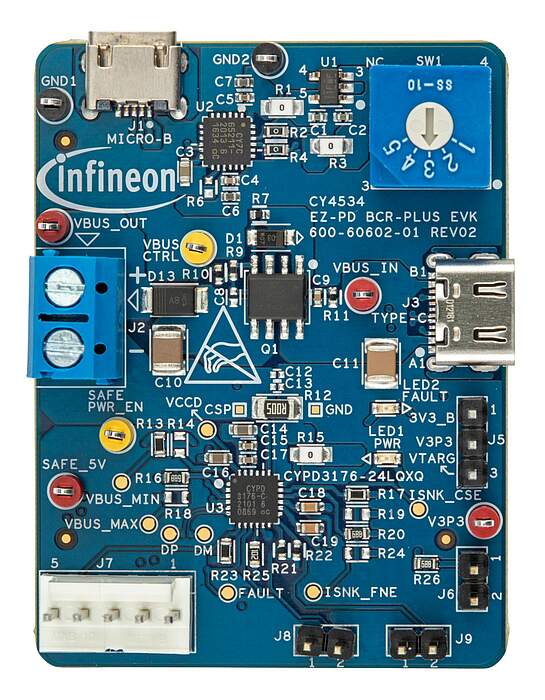

EZ-PD™ BCR-Plus CY4534
Featured Content
1. Video tutorials
EZ-PD™ BCR exclusive video series
2. On-demand webinar
Infineon’s EZ-PD™ family – PMG1+ BCR Deep-dive
SECTION 2 - EZ-PD™ PMG1
Single-chip microcontroller solution
The only high-voltage, programmable USB power delivery solution on the market today.
Power Delivery Microcontroller Gen 1 (EZ-PD™ PMG1) is a high-voltage USB-C Power Delivery microcontroller (PD MCU) targeted to any embedded system that provides/consumes power to/from a high-voltage USB-C PD port and leverages the microcontroller to provide additional control capability.
The EZ-PD™ PMG1 family of devices has a market-proven USB power delivery stack, ensuring spec compliance and interoperability.
It comes with:
- an integrated Arm® Cortex®-M0/M0+
- up to 256 KB Flash and 32 KB RAM
- a USB full-speed device
- analog and digital peripherals
With an SDK supported in ModusToolbox™, EZ-PD™ PMG1 family provides customers with a unified firmware view, facilitating seamless migration between all EZ-PD™ PMG1 devices.
|
Features |
Benefits |
|
Highly integrated single-chip solutions |
System BOM and board area efficiency |
|
Comprehensive HW and SW protection |
Reliability and safety |
|
Software utility tools and wide support material available |
Shorter development cycle and faster time-to-market |
|
Integrated configurable analog and digital blocks |
Programmability, product differentiation |
|
Market-proven USB-IF certified solution with mature design tools |
Low implementation risk and minimized compatibility issues |
|
Extended industrial temperature -40°C to 105°C |
Suitable for virtually any commercial or industrial application |
Components

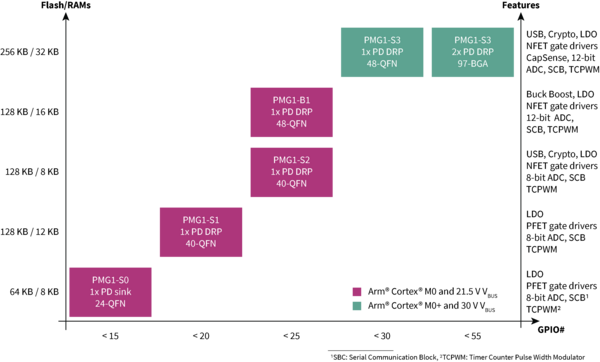

Portfolio
Features - EZ-PD™ PMG1 family
|
Product name |
EZ-PD™ PMG1-S0 |
EZ-PD™ PMG1-S1 |
EZ-PD™ PMG1-S2 |
EZ-PD™ PMG1-S3 |
EZ-PD™ PMG1-B1 |
|
Part number |
CYPD1011 |
CYPD1111 |
CYPD1211 |
CYPD1311 CYPD1321 CYPD1322 |
CYPD1115 CYPD1116 |
|
Datasheet |
|||||
|
Shop |
1st HV MCU with integrated buck-boost battery charger
EZ-PD™ PMG1-B1 targets power tool chargers which power from a high-voltage USB-C PD port. It leverages the MCU and buck-boost charger for battery charging and system control. It comes with:
- an Arm® Cortex® -M0 CPU
- USB-C PD controller
- a buck-boost controller with 5.5V - 24V input and 3.3V - 21.5V output voltage range
- analog and digital peripherals
Development Kits

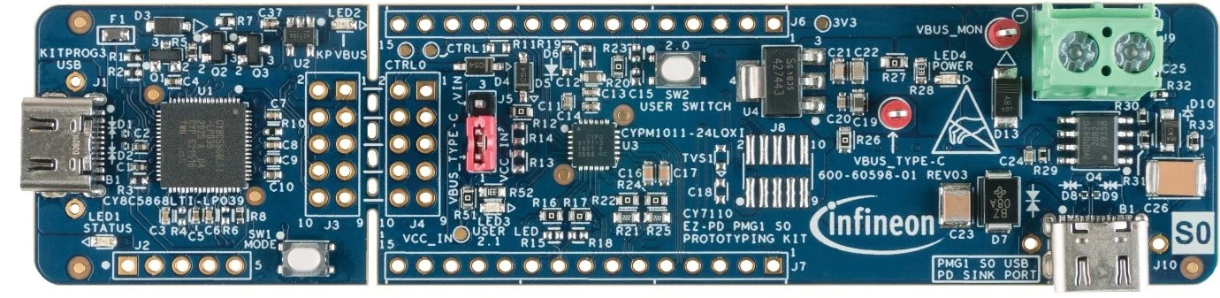

CY7110
Highlight product: EZ-PD™ PMG1-S0

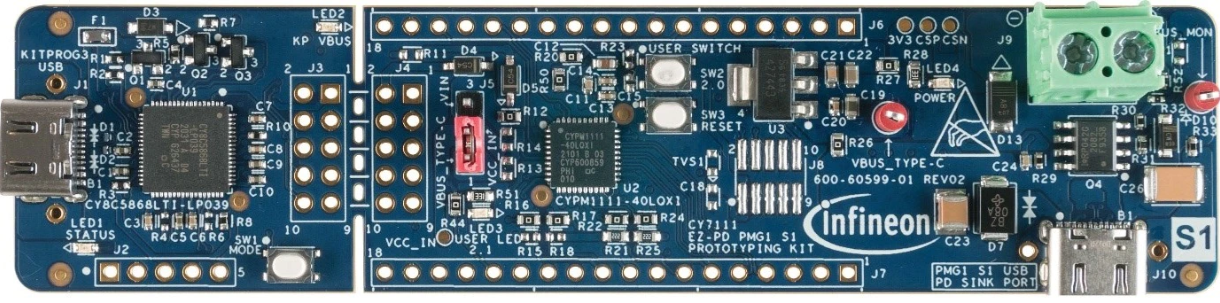

CY7111
Highlight product: EZ-PD™ PMG1-S1

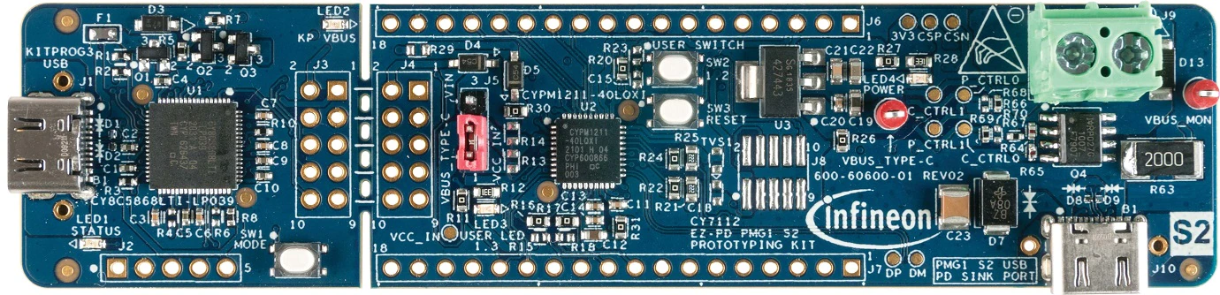

CY7112
Highlight product: EZ-PD™ PMG1-S2

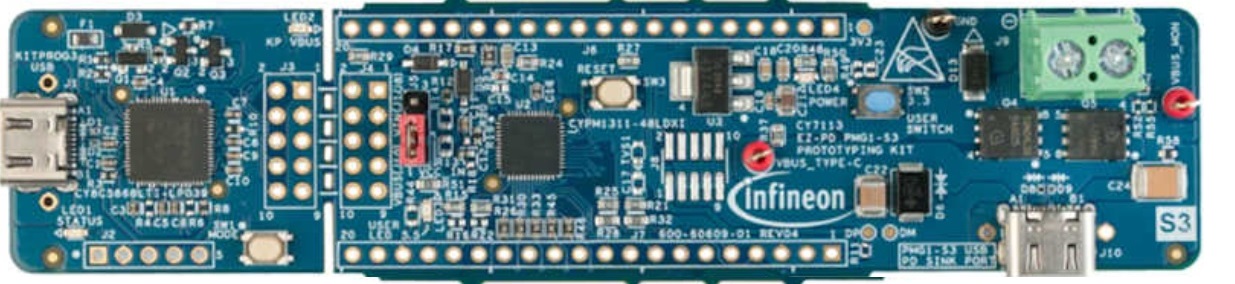

CY7113
Highlight product: EZ-PD™ PMG1-S3
EVAL_PMG1_B1_DRP
Highlight product: EZ-PD™ PMG1-B1
COMING SOON!
WIN THIS BOARD!
*Not yet in distribution. First boards will be exclusively handed over as soon as possible.
Featured Content
1. Exclusive 5-part Whitepaper series
EZ-PD™ PMG1 high-voltage Microcontrollers with USB-C PD - Understand various use cases by downloading the 5-part whitepaper series
3. Video series
Infineon’s EZ-PD™ PMG1 family
2. On-demand Webinar
Infineon’s EZ-PD™ family – PMG1+ BCR Deep-dive
Win an Infineon EVAL_PMG1_B1_DRP Board!
You want to sink or source power through the USB-C PD port to or from the battery pack in applications such as cordless power tool charger, wireless speakers, and portable electronics? Then the EVAL_PMG1_B1_DRP evaluation kit for the EZ-PD™ PMG1-B1 USB Power Delivery (PD) microcontroller (MCU) should be very interesting for you.
Here you can participate in our competition for the chance to win one of five boards and to be the first to receive the EVAL_PMG1_B1_DRP board as soon as it is available!
We look forward to your participation!
Download Whitepaper Series
Convert to USB-C now!
Infineon’s EZ-PD™ PMG1 MCUs represent an integrated solution for embedded systems that provide or consume power from the USB-C port and need an MCU to implement product features. Eager to learn how to use Infineon’s EZ-PD™ PMG1 high-voltage Microcontrollers with USB-C PD as a co-processor for your embedded applications such as power tools or consumer applications?
Read now the complete series!
