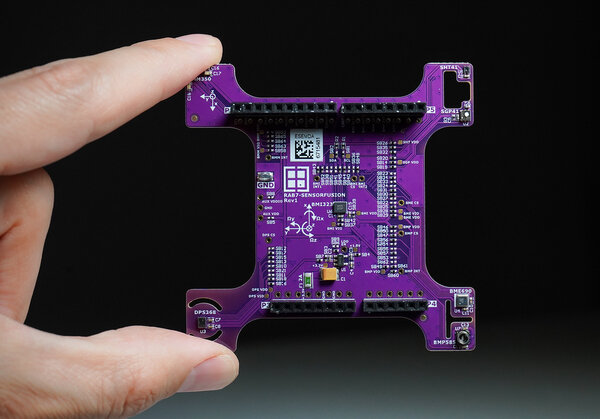

The RAB7 is an Arduino shield adapter for evaluation and prototyping of environmental and inertial sensors from Infineon, Sensirion and Bosch. "With the RAB7, sensing application engineers benefit from a selection of best-in-class environmental sensors to detect and combine all important environmental parameters for state-of-the-art sensorfusion applications with or without the use of AI," said Stephan Menze, Head of Global Innovation Management at Rutronik. To get the most out of a sensorfusion application, it is important to use the best sensors. This is why the next generation sensors from leading sensor suppliers have been added, such as
- Infineon's XENSIV™ digital barometric pressure sensor DPS368XTSA1,
- Bosch's digital pressure sensor BMP585,
- Sensirion's indoor air quality sensor for VOC measurement SGP41-D-R4,
- Bosch's low-power digital gas, pressure, temperature and humidity sensor with AI BME690,
- Bosch's 6-axis intelligent low-power inertial measurement unit BMI323,
- Sensirion's high-precision, low-power relative humidity and temperature sensor SHT41-AD1B-R2, and
- Bosch BMM350 3-axis magnetic sensor for 9-axis absolute orientation for navigation instead of just relative orientation, since the earth's magnetic field can also be detected.
The Adapter Board RAB7 is powered via Arduino headers with a single 3.3V supply. All sensors are configured to work with the I2C and SPI interface via Arduino compatible ADAM-TECH connectors. Each sensor can be disconnected from the power supply and I2C circuits by unsoldering solder bridges, allowing the use of only the sensors needed for a particular sensorfusion application.
Markets & Applications:
- Building Automation
- Professional Kitchen HVAC (Heating, Ventilation, Air Conditioning)
- HVAC
- Smart Farming
The Adapter Board RAB7 can be easily combined with other Base Boards and Adapter Boards from Rutronik System Solutions. The modular concept allows a variety of approaches to implement development projects quickly, cost-efficient, and simply, yet in a technically sophisticated way. The combination of RDK3 and RAB7 enables local use via Bluetooth® Low Energy for wireless sensing applications in the home and outdoors.
This flexibility not only simplifies the development process, but also increases the potential for innovation by allowing different combinations and configurations. Whether working on a simple project or a complex application, the stackable design provides the necessary tools for success by allowing different combinations and configuration.
