Vishay has the breadth of diode solutions to meet your design requirements every time. Our experts can leverage this range of technologies to dial in the right balance of performance and cost, reducing development time and accelerating your time to market.

About Vishay

Vishay Intertechnology, Inc. is one of the world's largest manufacturers of discrete semiconductors (diodes, rectifiers, transistors, and optoelectronics and selected ICs) and passive electronic components (resistors, capacitors, inductors, sensors, and transducers). Vishay is very well positioned to provide components for macroeconomic growth drivers such as connectivity, mobility, and sustainability. Through its R&D, engineering, quality programs, and sales initiatives, it generates a steady stream of innovative components to enable designers to create new generations of end products. Vishay's product innovations, successful acquisition strategy, and ability to provide one-stop shop service have made Vishay a global industry leader.

600 V FRED Pt® Gen 5

Vishay Intertechnology’s New AEC-Q101 Qualified FRED Pt® Gen 5 600 V Hyperfast and Ultrafast Rectifiers Offer Best in Class Reverse Recovery Losses. 15 A to 75 A Devices Increase the Efficiency of AC/DC and DC/DC Converters in EV / HEV On-Board Chargers, Battery Charging Stations and High Frequency Stages for UPS Applications

The devices released today offer 30 % lower reverse recovery losses than the closest competing rectifiers and 48 % lower than previous-generation FRED Pt solutions, while maintaining low conduction and switching losses. The result is improved light- and full-load efficiency in high speed LLC output rectification stages for EV / HEV on-board chargers.

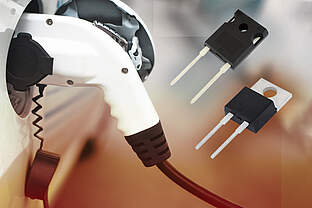

The rectifiers are available in TO-247AD and TO-220AC packages, and X-type Hyperfast and H-type Ultrafast speed classes. X-type devices offer the advantage of lower QRR, while H-type rectifiers feature lower forward voltage. RoHS-compliant and halogen-free, the components offer high temperature operation to +175 °C.

600 V FRED Pt® Gen 5
600 V FRED Pt® Gen 5
600 V FRED Pt® Gen 5

Part

VR (V)

IF(AV) (A)

VF typ. (V)1

QRR typ. (nC)2

Speed class

trr typ. (ns)3

Package

See in R24 Shop

VS-E5TH1506-M3

600

15

1.15

782

H

22

TO-220AC 2L

VS-E5TH1506-M3

VS-E5TX1506-M3

600

15

1.3

578

X

19

TO-220AC 2L

VS-E5TX1506-M3

VS-E5TH3006-M3

600

30

1.15

1560

H

25

TO-220AC 2L

VS-E5TH3006-M3

VS-E5TX3006-M3

600

30

1.3

952

X

22

TO-220AC 2L

VS-E5TX3006-M3

VS-E5PH3006L-N3

600

30

1.15

1560

H

25

TO-247AD 2L

VS-E5PH3006L-N3

VS-E5PX3006L-N3

600

30

1.3

952

X

22

TO-247AD 2L

VS-E5PX3006L-N3

VS-E5PH6006L-N3

600

60

1.2

2385

H

29

TO-247AD 2L

VS-E5PH6006L-N3

VS-E5PX6006L-N3

600

60

1.4

1568

X

26

TO-247AD 2L

VS-E5PX6006L-N3

VS-E5PH7506L-N3

600

75

1.2

3090

H

32

TO-247AD 2L

VS-E5PH7506L-N3

VS-E5PX7506L-N3

600

75

1.4

2048

X

29

TO-247AD 2L

VS-E5PX7506L-N3

1IF = rated current, TJ = 125 °C

2TJ = 125 °C, IF = rated current A, VR = 400 V, dIF/dt = 1000 A/μs

3TJ= 25 °C IF = 1 A dIF/dt = 100 A/μs, VR = 30 V

Battery Charging
Battery Charging
Battery Charging
600 V FRED Pt® Gen 5
600 V FRED Pt® Gen 5
600 V FRED Pt® Gen 5

New 15 A to 75 A AEC-Q101 Qualified FRED Pt® Gen 5 600 V

Hyperfast and Ultrafast Rectifiers Offer Best in Class Reverse Recovery Losses, Increasing the Efficiency of AC/DC and DC/DC Converters in

EV / HEV On-Board Chargers

Hyperfast and Ultrafast Rectifiers
Hyperfast and Ultrafast Rectifiers
Hyperfast and Ultrafast Rectifiers

  • AEC-Q101 qualified
  • Forward currents of 15 A, 30 A, 60 A, and 75 A
  • Offered in TO-247AD and TO-220AC packages
  • Available in X-type Hyperfast and H-type Ultrafast speed classes
    • X-type devices offer the advantage of lower QRR
    • H-type rectifiers feature lower forward voltage
  • High temperature operation to +175 °C
  • RoHS-compliant and halogen-free

  •  High speed LLC output rectification stages for EV / HEV on-board chargers

Vishay Intertechnology introduces 10 new AEC-Q101 qualified FRED Pt® Gen 5 600 V Hyperfast and Ultrafast rectifiers for automotive applications. Offering the best reverse recovery performance for devices in their class, the 15 A, 30 A, 60 A, and 75 A Vishay Semiconductors rectifiers are designed to increase the efficiency of AC/DC and DC/DC converters and of hard- and soft-switched or resonant designs.

  • The devices offer 30 % lower reverse recovery losses than the closest competing rectifiers and 48 % lower than previous-generation FRED Pt solutions, while maintaining low conduction and switching losses
    • The result is improved light- and full-load efficiency

Part

VR (V)

IF(AV) (A)

VF typ. (V)1

QRR typ. (nC)2

Speed class

trr typ. (ns)3

TJ max. (°C)

Package

VS-E5TH1506THN3

600

15

1.15

782

H

22

175

TO-220AC 2L

VS-E5TX1506THN3

600

15

1.3

578

X

19

175

TO-220AC 2L

VS-E5TH3006THN3

600

30

1.15

1560

H

25

175

TO-220AC 2L

VS-E5TX3006THN3

600

30

1.3

952

C

22

175

TO-220AC 2L

VS-E5PH3006LHN3

600

30

1.15

1560

H

25

175

TO-247AD 2L

VS-E5PX3006LHN3

600

30

1.3

952

X

22

175

TO-247AD 2L

VS-E5PH6006LHN3

600

60

1.2

2385

H

29

175

TO-247AD 2L

VS-E5PX6006LHN3

600

60

1.4

1568

X

26

175

TO-247AD 2L

VS-E5PH7506LHN3

600

75

1.2

3090

H

32

175

TO-247AD 2L

VS-E5PX7506LHN3

600

75

1.4

2048

X

29

175

TO-247AD 2L

1IF = rated current, TJ = 125 °C

2TJ = 125 °C, IF = rated current A, VR = 400 V, dIF/dt = 1000 A/μs

3TJ= 25 °C IF = 1 A dIF/dt = 100 A/μs, VR = 30 V

Part

VR (V)

IF(AV) (A)

VF typ. (V)1

QRR typ. (nC)2

Speed class

trr typ. (ns)3

TJ max. (°C)

Package

VS-E5TH1506THN3

600

15

1.15

782

H

22

175

TO-220AC 2L

VS-E5TX1506THN3

600

15

1.3

578

X

19

175

TO-220AC 2L

VS-E5TH3006THN3

600

30

1.15

1560

H

25

175

TO-220AC 2L

VS-E5TX3006THN3

600

30

1.3

952

C

22

175

TO-220AC 2L

VS-E5PH3006LHN3

600

30

1.15

1560

H

25

175

TO-247AD 2L

VS-E5PX3006LHN3

600

30

1.3

952

X

22

175

TO-247AD 2L

VS-E5PH6006LHN3

600

60

1.2

2385

H

29

175

TO-247AD 2L

VS-E5PX6006LHN3

600

60

1.4

1568

X

26

175

TO-247AD 2L

VS-E5PH7506LHN3

600

75

1.2

3090

H

32

175

TO-247AD 2L

VS-E5PX7506LHN3

600

75

1.4

2048

X

29

175

TO-247AD 2L

1IF = rated current, TJ = 125 °C

2TJ = 125 °C, IF = rated current A, VR = 400 V, dIF/dt = 1000 A/μs

3TJ= 25 °C IF = 1 A dIF/dt = 100 A/μs, VR = 30 V
