The Next Generation of 3D NAND Products

Transcend rolled out a new line of solid-state drives featuring the latest generation of 96-layer 3D NAND flash. The release features SSDs in the NVMe PCIe Gen3 x4, SATA III M.2, SATA III 2.5" and mSATA form factors, and large capacity options from 64GB to 2TB. Besides sporting an endurance rating of 3000 P/E cycles, these solutions boast appealing new features, such as default 30µ" PCB gold fingers* and Corner Bond technology - which shields key components against wear and external impact - an extended operating temperature range (-20°C to 75°C), and dynamic thermal throttling, allowing for greater durability.


Key Features

  • Operating temperature: -20°C to 75°C
  • 30µ" PCB gold finger*
  • 3000 P/E cycles endurance rating
  • Key components fortified with default Corner Bond process
  • Dynamic thermal throttling
  • DRAM Cache embedded
  • Exclusive SSD Scope Pro life-time monitoring software


Where cost-effectiveness meets reliability

Products featuring 3D NAND cells are cost-effective solutions that offer performance and reliability at an affordable price. Transcend´s use of 96-layer 3D NAND technology greatly boosts speed, endurance and reliability. With 3000 P/E cycles these SSDs feature an endurance equivalent to that of planar MLC NAND flash, but at a much lower cost per bit. As such, these SSDs integrate the advantages of high performance and exceptional endurance under intensive read/write cycles, making them ideal for industrial and enterprise use.


Ruggedized to Withstand Tough Environments

Featuring a wide range of operating temperature from -20°C to 75°C, the new 3D NAND SSDs are robust and resilient, ensuring reliable operation even under temperature swings and environmental stresses. These SSDs come equipped with Dynamic Thermal Throttling technology, allowing them to maintain stable performance by preventing overheating. Great tolerance to extreme temperatures makes these drives the ideal storage solution for industries where thermal challenges are a part of life.

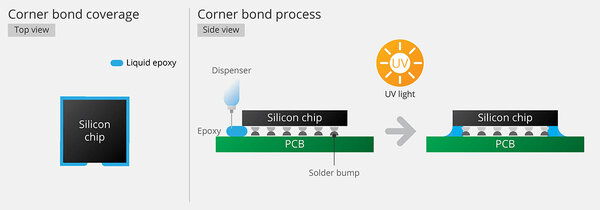

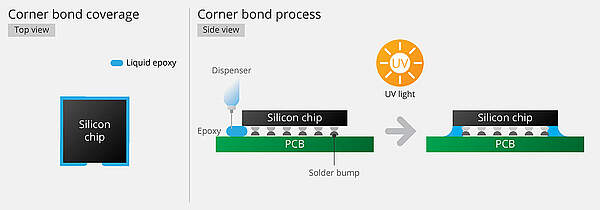

The new SSDs are built with a 30µ" gold finger*, a thick, solid electroplated hard gold plating that offers the PCB great conductivity and antioxidant capacity and protects components from abrasion and sulfuration. In addition, these SSDs come with default baked-in Corner Bond which fortifies key components and increases reliability under high thermal or vibratory stress, high gravitational acceleration, and high fatigue cycle applications.

Applications

    Automation

      Embedded

        Gaming

       Healthcare

        Server

    Transportation

Thanks to the different form factors, interfaces and storage capacities Transcend offers 3D NAND Solid State Drives for nearly any field of application. The new line of industrial SSDs also boast DRAM Cache, SLC caching, low-density parity check (LDPC), and other features that make for a stable, long-lasting product, ready for write-intensive industrial and embedded applications. The intuitive SSD Scope Pro software suite helps to monitor device health to run embedded SSDs more efficiently.

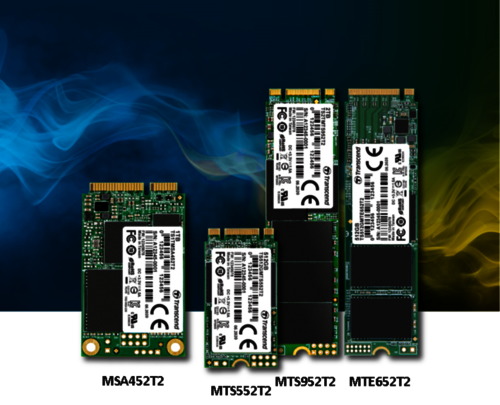

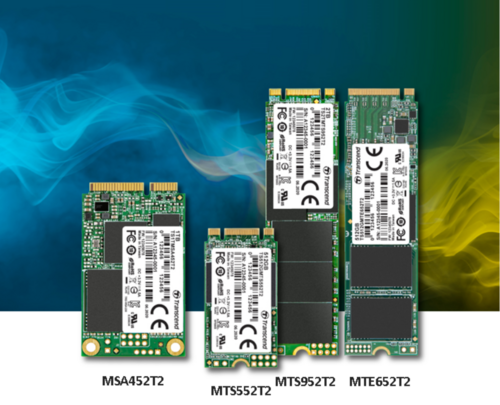

Product Line-Up

P/N

Interface / Form Factor

Capacity

Extended Temp.**

Product Information

MTE652T2

NVMe PCIe Gen3 x4 2280, 4CH

128GB - 512GB

-20°C - 75°C

Download

MTE662T2

NVMe PCIe Gen3 x4 2280, 8CH

256GB - 2TB

-20°C - 75°C

Download

MTE452T2

NVMe PCIe Gen3 x2 2242

128GB - 512GB

-20°C - 75°C

Download

MTS952T2

SATA III M.2 2280

64GB - 2TB

-20°C - 75°C

Download

MTS552T2

SATA III M.2 2242

64GB - 512GB

-20°C - 75°C

Download

MSA452T2

mSATA

64GB - 1TB

-20°C - 75°C

Download

SSD452K2

SATA III 2.5 inch

64GB - 2TB

-20°C - 75°C

Download

*The 2.5" SSD452K2 does not come with 30µ" gold fingers

**For Wide Temp. version (-40°C - 85°C) please check our 1st gen 96 layer 3D NAND portfolio
