Apacer PCIe NVMe Gen3 SSDs
The next logical step for industrial-grade storage
With an innate understanding of market demands and trends, Apacer has devoted more resources to PCIe SSD production, and now announces the introduction of an industrial-grade PCIe NVMe Gen3 SSD series. Equipped with a powerful PCIe controller and based on 64-layer 3D TLC technology, it conforms precisely to the NVMe specification.
Possible Applications:
For industrial control systems and data centers

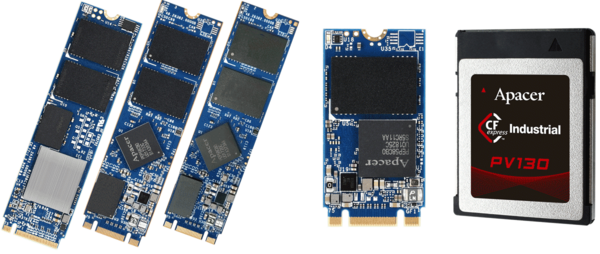

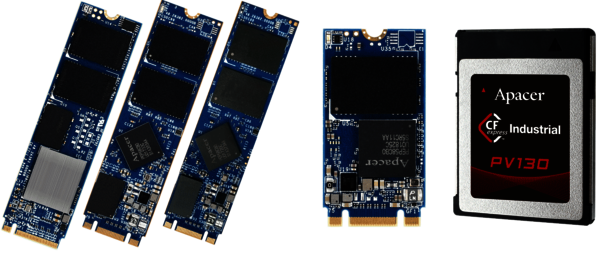

Apacer PCIe NVMe Gen3 SSDs consistently deliver superior performance. Available in M.2 2280, M.2 2242 and CFX form factors; these products make excellent storage solutions for industrial control systems and data centers.
Features:
The excellent performance comes to data transmission and 4K random read/write operations. In fact, Apacer's engineers have documented 4K random read/write performance and continuous read /write speeds up to 345,000/172,000IOPS and 2,660/2,260MB/sec, respectively. Like many industrial-grade Apacer solutions, it is available with a wide temperature range option, allowing it to tolerate temperature between -40 to 85°C.
Benefits:
Multiple data protection mechanisms enhance the reliability of transmission operations
Apacer's PCIe NVMe Gen3 series products are augmented with advanced LDPC (Low Density Parity Check) ECC engines and DataRAID™, providing data error correction and backup mechanisms to ensure the correctness and accuracy of data transmission. In addition, they are equipped with End-to-End Data Protection, an instant error detecting and correcting mechanism to ensure the integrity and correctness of data between the host and NAND storage areas during high-speed data transmission. This also greatly improves data reliability.
Longer operational lifetimes thanks to reduced write amplification
More and more, industrial-grade customers are seeking out storage products with built-in technologies that can extend a drive's operational lifetime. With Apacer's Over-Provisioning technology, 7% or more of storage space is reserved to efficiently manage and execute the internal resources required for healthy NAND operation. These include Garbage Collection, Wear-leveling, and Bad Block Management, and can effectively reduce Write Amplification and extend the life of an SSD. In addition, 4K Random Performance and Background Processing Performance can be significantly increased thanks to over-provisioning, which is sure to please customers who rely on heavy read/write operation.
Intelligent thermal management greatly stabilizes system operation
Industrial-grade devices also need to be adaptable enough to survive in challenging temperatures. Over the years, Apacer has dedicated significant resources to creating thermal management systems for industrial-grade SSDs. Thermal throttling is good for preventing damage to components and data, but has the associated drawback of reducing processing speed. With this in mind, Apacer developed a new technology called CoreGlacier™. This delivers exceptional heat dissipation and cools both the NAND Flash memory and the IC controller, allowing high-speed devices to maintain their exceptional processing speeds with no reduction in performance. The CoreGlacier™ technology is currently only standard on wide-temperature versions of this product.
Tables:
Model |
|||||
Interface |
PCIe Gen3 x4 |
PCIe Gen3 x2 |
PCIe Gen3 x2 |
PCIe Gen3 x2 |
PCIe Gen3 x2 |
Connector |
M.2 M key |
M.2 B & M key |
M.2 B & M key |
M.2 B & M key |
21 pins |
Form factor |
M.2 2280-D5-M |
M.2 2242-S3-B-M: 60GB M.2 2242-D5-B-M: 120-480GB |
M.2 2280-S3-B-M: 120, 240GB M.2 2280-D5-B-M: 480, 960GB |
M.2 2280-S3-B-M: 120, 240GB M.2 2280-D5-B-M: 480GB |
CFX Type B Card |
NAND Flash Type |
3D TLC |
3D TLC |
3D TLC |
3D TLC |
3D TLC |
Capacity |
240GB~960GB |
60GB-480GB |
120GB-960GB |
120GB~480GB |
120GB~480GB |
External DRAM |
Yes |
No |
Yes |
Yes |
- |
Sustained read performance (MB/sec) |
Up to 2660 |
Up to 1600 |
Up to 1700 |
Up to 1600 |
Up to 1550 |
Sustained write performance (MB/sec) |
Up to 2260 |
Up to 1000 |
Up to 1000 |
Up to 1000 |
Up to 950 |
ECC engine |
Low-DensiParity-Check (LDPC) Code |
Low-Density Parity-Check (LDPC) Code |
Low-Density Parity-Check (LDPC) Code |
Low-Density Parity-Check (LDPC) Code |
Low-Density Parity-Check (LDPC) Code |
IOPS (4K random write) |
172K |
180K |
180K |
190K |
- |
Standard operating emperature (°C) |
0 ~ + 70 |
0 ~ + 70 |
0 ~ + 70 |
0 ~ + 70 |
0 ~ + 70 |
Extended operating temperature (°C) |
-40 ~ + 85 |
-40 ~ + 85 |
-40 ~ + 85 |
- |
-40 ~ + 85 |
Storage temperature (°C) |
-40 ~ 100 |
-40 ~ 100 |
-40 ~ 100 |
-40 ~ 100 |
-40 ~ 100 |
Datasheets:
Check our eDM for a product overview, features, specifications, and mechanical specifications.
