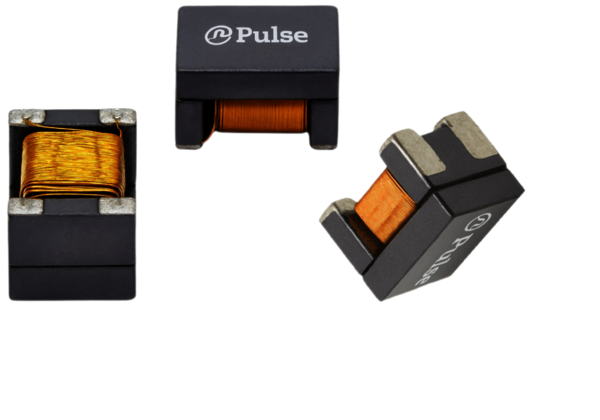

To meet these requirements, YAGEO Group offers the AC1210 Series: compact 2-wire, high- performance common-mode chokes in the 1210 (3225) package. These components enable reliable EMI suppression across a wide range of CAN-FD communication channels. The chokes are designed for CAN and CAN-FD networks with data rates of up to 10 Mbit/s, and they support DCMR CAN Class 2, and 3 for loads up to 300mA over a wide temperature range. The design is based on current industry standards, including IEC 62228-3 and CiA 110. This makes the series suitable for communication buses in demanding automotive and industrial environments.
Greater Flexibility for Developers
The broad range of supported interfaces allows a single series of chokes to be used for various bus system requirements, providing greater flexibility for developers. This can reduce the number of variants and simplify circuit design. Inductance values of 11 µH, 22 µH, 51 µH, and 100 µH are available. Depending on the version, the operating temperature range extends from - 55 to +150 °C or from - 40 to +125 °C. The vibration- and shock-resistant design supports use in harsh environmental conditions. The series is qualified for automotive and industrial applications and complies with all major EMC standards. Variants for different bus interfaces make it easier for developers to select a suitable choke for various communication architectures.
Key features at a glance:
• 1210 (3225) package
• Inductance values from 11 to 100 µH
• High-performance- supports DCMR CAN Class 2 and 3
• High current in compact size up to 300mA DC loads
• Comprehensive application support for interfaces up to ≤ 10 Mbit/s
• Wide operating temperatures -55 up to +150 °C
• Robust design for vibration and shock resistance
• Qualified by OEMs and standards bodies
Wide range of applications in automotive and industrial sectors:
The AC1210 series is suitable for numerous CAN-FD-based applications, including:
• Advanced Driver Assistance Systems (ADAS)
• Lighting systems
• Engine and body control units
• Camera modules
• Airbag and safety systems
• Tire pressure monitoring systems
• GPS systems
• Industrial CAN/CAN-FD networks
The range of applications thus extends from traditional control units to networked vehicle functions and industrial bus systems. The focus is on applications that require reliable data communication under demanding operating conditions.
For more information on the AC1210 Choke Series of YAGEO Group and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
