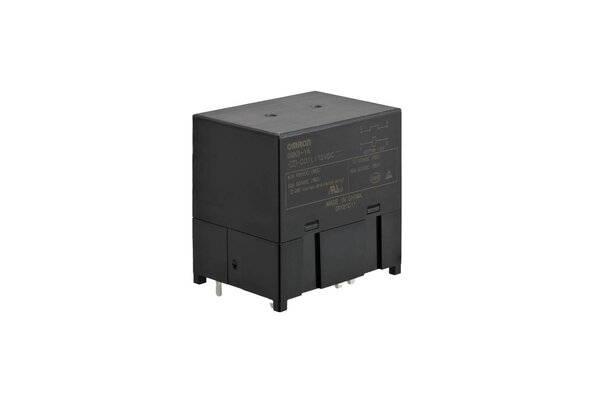

With bidirectional switching and high capacity: Rutronik introduces 600 VDC, 50 A power relay from Omron

01/29/2024 Product News

The high-performance relays of the G9KB series from Omron now complement Rutronik's portfolio. They have a high capacity of 600 VDC at 50 A and enable a bidirectional opening and closing. Particularly suitable for use in miniaturized designs of household appliances with a required mounting area of 11.5 cm2, the relays score with an improved structure for controlling the internal temperature, pressure, and flow field. The relays are available with rated voltages of 12 VDC and 24 VDC at www.rutronik24.com.

The low power consumption and low initial contact resistance of ≤5 mΩ are also impressive. Omron's G9KB relays work reliably at ambient temperatures up to +85 °C. With a possible contact gap of at least 3.6 mm and certifications following UL 60947-4-1 and EN 61810-10 (required for ESS switching devices), the components allow designs to be implemented quickly.

Additional Benefits:

  • Supports miniaturization of devices with a mounting area of 11.5 cm2 required for household products
  • Optimized terminal shape to control arc movement
  • Improved structure to control internal temperature, pressure, and flow field

Application examples:

  • DC household appliances
  • Applications in the market sector of renewable energy: energy storage systems, heat pumps
  • EV charger


For more information to the G9KB power relay by Omron and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.
