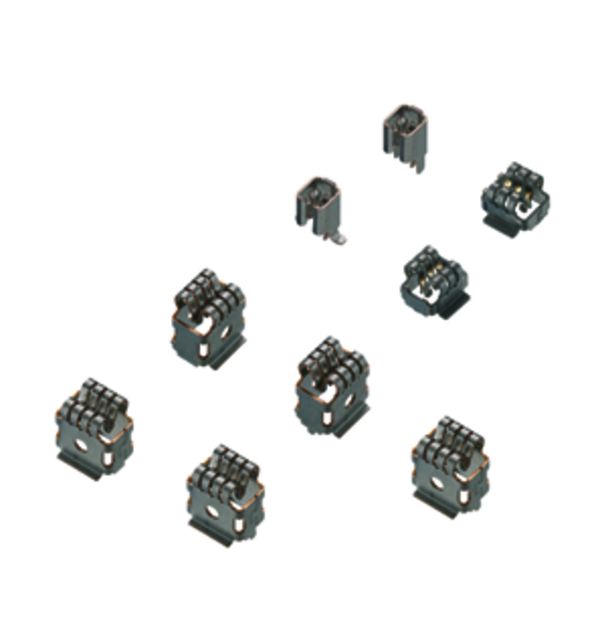

Lumberg has been developing high-quality high-current contacts for over two decades, which are used in millions of control units and mechatronic modules, especially in current electric vehicles and charging components for electric vehicles. Building on this experience, the new 4580 01 type offers a significant enhancement: Unlike the previous types 4580 03 and 4580 04, the 4580 01 allows connection from three directions, significantly increasing the versatility of the component.
The high-current contact can be mounted directly on PBCs using SMT or THT soldering processes, or fixed to busbars using laser welding technology. Its compact design allows it to be used even in high-density electronic systems, while its robust construction ensures a secure electrical connection even under strong vibrations or shocks. With a low contact resistance of less than 1 mΩ and the ability to safely transmit currents of up to 56 A, the 4580 01 ensures efficient and low-loss power transmission even under high performance requirements – making it ideal for use in modern electric vehicles, charging infrastructures or industrial electric motors.
Key benefits at a glance:
- Temperature range: -40 °C to +120 °C
- Material: CuCr alloy, tin-plated
- Contact resistance: less than 1 mΩ
- Rated current: up to 56 A
- Compact design
- Mechanical Durability: High pull-out forces for stable connections (e.g., 32 N ± 15 N when plugged in from the top)
- High tolerance compensation in the contact area
- Alternative application on busbars
- Certified according to LV 215 and VW 80332
Target markets & application examples:
- Automotive
- Electromobility
- Power electronics
- Drive technology
- Power tools
- Control devices
- Chargers
- Voltage transformers
- Charging stations
- Electric motors
- Battery packs
For more information to the 4580 01 high current contact by Lumberg and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
