Tiny, fully shielded SMD power inductors: The new T-series from knitter-inductive - new at Rutronik

04/25/2024 Product News

The new ICSIxxxxxxTxSHyST12 series from knitter-inductive expands the Rutronik portfolio of SMD power inductors. The series impresses with a wide inductance range and a high saturation current with an extremely small size. Further advantages are the special inner winding and the fully magnetically shielded design. The inductor series works reliably at operating temperatures from -40 °C to +125 °C and is suitable for use in a wide range of applications, e.g. for voltage regulator modules, DC/DC converters, embedded PCs, or switching power supplies. The inductors are available in tape & reel packaging for quick and cost-effective assembly at www.rutronik24.com.

Solid wire is used for the inner winding, which ensures a low DCR value from 2.0 mΩ and high current voltage. The inductor series is available with an inductance range from 0.10 μH to 10.0 μH and a saturation current range from 1.3 A to 35.0 A.

Most important features at a glance:

  • Sizes between 1.6 mm x 0.8 mm x 0.8 mm and 6.6 mm x 6.4 mm x 3.1 mm
  • Inductance range from 0.1 μH to 10 μH
  • Saturation current from 1.3 A up to 35 A
  • Tape&reel packaging
  • Magnetically fully shielded

Application examples:

  • DC/DC converter
  • VRM (Voltage Regulator Module)
  • SMPS (Switched-Mode Power Supply)
  • Embedded PCs

For more information to the new T-series from knitter-inductive and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.

Contact Rutronik:

Jochen Neller | Technical Expert Inductors |  +49 7231 801 1414 | jochen.neller@rutronik.com

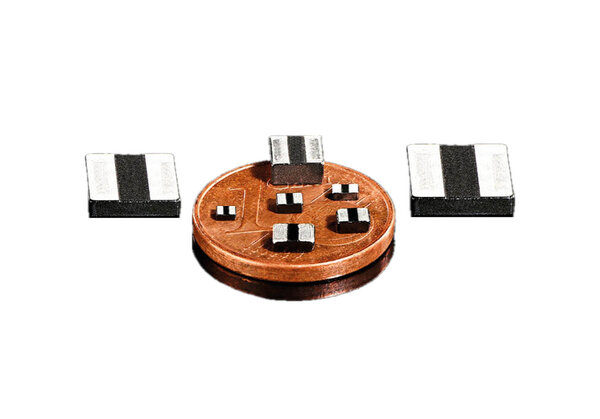

Knitter-inductive has launched the new T-series of SMD power inductors.
