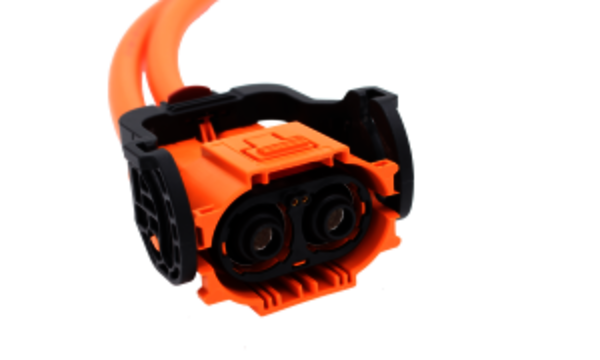

The HVSL (High Voltage Safety Lock) series from Amphenol IPG PCD has been specially developed for high-current and high-voltage applications up to 1,000 V / 350 A. The sophisticated design meets the highest requirements for electrical safety, vibration resistance and environmental resistance – ideal for modern e-mobility architectures and DC charging systems.
A key feature is the integrated HVIL (High Voltage Interlock Loop) safety lock. It prevents voltage from being applied until the connector is fully engaged – a crucial safety advantage in high-voltage systems. In addition, mechanical coding (A, B, C) ensures error-free connection of different system configurations. The HVSL series is available with or without the HVIL option, enabling flexible system integration.
Thanks to RADSOK® contact technology, the connector offers extremely low contact resistance combined with high current carrying capacity. This results in lower operating temperatures, longer service life and higher energy efficiency.
The connectors are designed for conductor cross-sections from 25 mm² to 50 mm² and, depending on the version, comply with IP67, IP6K9K and IPX2B – i.e., complete dust tightness and protection against high-pressure cleaning and temporary submersion.
The series is also characterized by its high mechanical robustness: it is vibration and shock resistant, can withstand high mating cycles and is designed for use in harsh environments – such as in engine compartments or power electronics enclosures.
Another advantage: Rutronik has the HVSL series permanently available from stock, enabling short-term delivery for development and series projects.
Benefits at a glance:
- Maximum safety: HVIL system prevents accidental application of high voltage
- High performance: up to 1,000 V and 350 A for drive and charging systems
- Robust design: IP6K9K-certified, vibration-resistant, RADSOK® contact technology
- Flexible integration: selectable coding, various conductor cross-sections, HVIL option
- Reliable supply: immediately available from stock
Application examples:
- Electric vehicles (EVs)
- Hybrid vehicles (HEVs/PHEVs)
- Charging infrastructure (fast chargers and DC charging stations)
For more information to the HVSL series by Amphenol IPG PCD and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
