Package with two transistors from Diotec

08/23/2018 Know-How

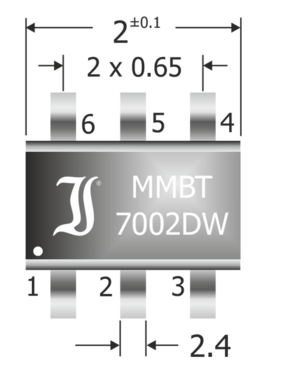

The MMBT7002DW contains two independent N-channel MOSFETs with fast switching times in a halogen-free SOT-363 package.

With 60V and 115mA each transistor these components can be controlled with 5V logic level. The Rdson is 7.5 Ohm, the turn-on time is only 20ns. With dimensions of only 2.0 x 2.1 mm, the MMBT7002DW has a very small form factor. Applications include signal processing, logic level converters and drivers.

The MMBT7002DW is RoHS and REACH compliant and has been proven to contain no conflict minerals. The package conforms to UL 94V-0, soldering and installation conditions are 260°C and 10s.

You will find more information on the MMBT7002DW from Diotec on the e-commerce platform (where you can also place orders directly):
<link _blank external-link-new-window "Opens external link in new window"></link>
