The SFH 7061 is the first device in a new family of Optical Frontend modules optimized for optical force and touch sensing. Within its extremely compact footprint, it integrates a 940 nm infrared emitter, an IR-sensitive photodiode, and a dedicated optical barrier to effectively suppress optical crosstalk. This high level of integration simplifies optical system design, reduces external components and ensures stable and reproducible signal performance.
Serving as the core of the discrete optical force sensing solution, the AS7150 analog frontend can flexibly connect up to three photodiodes and IR emitters, enabling a variety of optimized optical module configurations. Its ultra-low-power architecture, compact footprint and high configurability allow seamless integration into a wide range of product form factors.

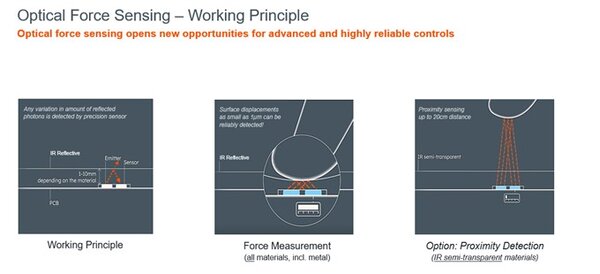

Unlike conventional mechanical switches or capacitive touch solutions, Optical Force™ technology enables fully closed, minimalist surfaces without moving parts. The sensing elements can be placed behind glass, plastic or other cover materials, enabling precise detection of force and touch events while maintaining robust and durable designs. This opens up new degrees of freedom in product development – from seamless control surfaces to adaptive interaction concepts.
The technology represents a fundamental evolution in human-machine interaction: transforming control interfaces from static to smart and from fixed to fluid. For OEMs and Tier-1 manufacturers, it unlocks new differentiation opportunities in both exterior and interior design.
Benefits at a glance
SFH 7061
- Ultra-compact package: 1.8 × 1.0 × 0.5 mm
- Integrated 940 nm IR emitter, photodiode and optical barrier
- Reduced optical crosstalk for stable sensing performance
- Operating temperature range: –40 °C to +85 °C
- 2 kV HBM ESD robustness
AS7150
- Supports up to three photodiodes and IR emitters
- Ultra-low-power architecture
- High flexibility for customized module configurations
- Suitable for a wide variety of compact and space-constrained designs
- Doorbells, switches and dimmers
- Earbuds and headphones
- Remote controls and key fobs
- Service and humanoid robots
- Industrial automation and smart home systems
- Power tools
- Smart watches and rings
- Power and balance meters
- Electric toothbrushes, hairdryers, trimmers and shavers
- Control interfaces in medical devices
- Home appliances
- E-bikes & scooters
Typical applications
- Doorbells, switches and dimmers
- Earbuds and headphones
- Remote controls and key fobs
- Service and humanoid robots
- Industrial automation and smart home systems
- Power tools
- Smart watches and rings
- Power and balance meters
- Electric toothbrushes, hairdryers, trimmers and shavers
- Control interfaces in medical devices
- Home appliances
- E-bikes & scooters
Last Quarter’s Most Relevant Product Updates:
For more information to the Optical Force™ SFH 7061 and the analog frontend AS7150 from ams OSRAM and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
