CW12 - Infineon USB Type-C +PD CCG3PA

03/21/2022 Product News

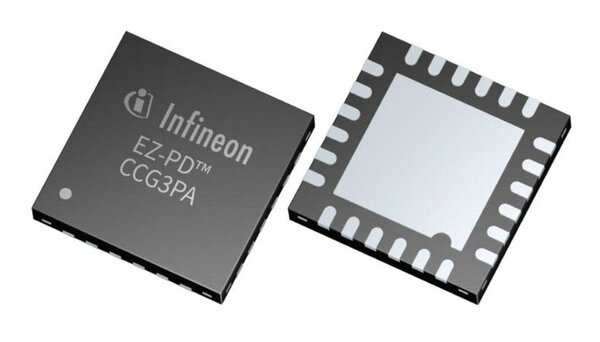

EZ-PD™ CCG3PA is Infineon's USB Type-C and power delivery controller.

CCG3PA supports power delivery 3.0, quick charge 4.0, integrated VBUS-to-CC short protection, 30 V-tolerant regulator, high-voltage PFET gate drivers, VBUS over-voltage and over-current protection, and ESD protection.

CCG3PA supports Downstream Facing Port (DFP), Upstream Facing Port (UFP), and Dual Role Port (DRP) and fully supports the power delivery 3.0 programmable power supply specification.

CCG3PA is a programmable solution with 64 KB flash for firmware upgrade.

Key features

  • USB Type-C and power delivery 3.0 programmable power supply
  • 2x Legacy/Proprietary charging blocks: BC v1.2, Apple charging, Qualcomm charging 4.0, Samsung AFC
  • Integrated digital blocks
    Four timers, counters and PWMs and up to 12 GPIOs
    Two SCBs for configurable master/slave I²C, SPI or UART
  • Integrated analog blocks
    30 V-tolerant regulator
    VBUS-to-CC short protection
    Integrated voltage (VBUS) regulation and current sense amplifier
    Two high-voltage PFET gate drivers
    Two VBUS discharge NFET
  • System-level fault protection
    On-chip OVP, OCP, UVP, and SCP
    Supports OTP through integrated ADC circuit
  • 32-bit MCU subsystem
    Arm® Cortex®-M0 CPU
    64 KB flash
    8 KB SRAM
  • Packages: 24-pin QFN and 16-pin SOIC
  • Supports extended industrial temperature range (-40 °C to +105 °C)


  • power adapter
  • mobile charger
  • car charger
  • power banks
