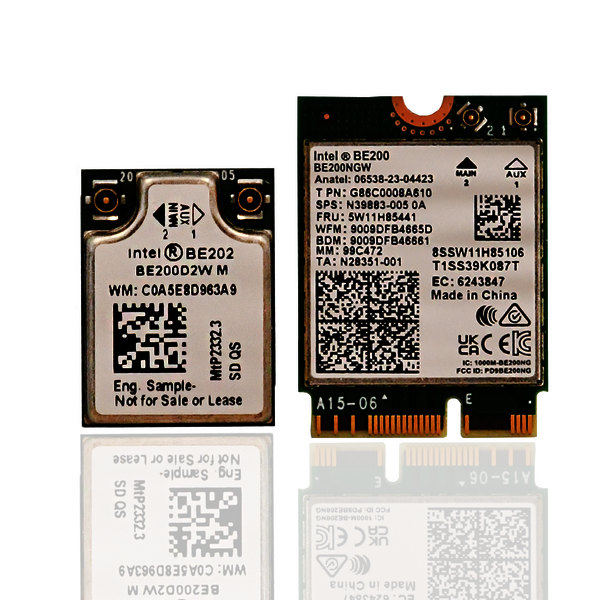

The Intel® BE200 and BE202 modules mark the next step in the evolution of wireless data transmission. Based on the Wi-Fi 7 standard (IEEE 802.11be), they offer extremely high bandwidths and deterministic latency, making them the ideal choice for all applications where speed and reliability are critical.
The BE200 module achieves transfer rates of up to 5.8 Gbit / s, while the BE202 module is designed for data rates of up to 2.4 Mbit / s. Both modules feature a channel bandwidth of 320 MHz, 4K QAM modulation and multi-link operation (MLO) capability, allowing two frequency bands to be used simultaneously, which significantly improves connection quality.
With frequency bands of 2.4 GHz, 5 GHz and 6 GHz, 2 x 2 TX/RX streams and integrated Bluetooth 5.4, the BE200 and BE202 series combine high performance with flexible integration. They are available as both a pluggable M.2 2230 version and a solderable M.2 1216 variant and support Windows 10, Windows 11 and Linux.
Maximum security is ensured by WPA3 encryption, which also guarantees a high level of protection in critical industrial or medical applications. Combined with their energy efficiency and compatibility with existing platforms, the modules offer an ideal solution for current and future IIoT, transport and smart device designs.
The launch of an embedded version of the BE200 (for operating temperatures from 0 °C to 70 °C) is also planned for Q1-Q2/2026. The market launch of the industrial models with an extended temperature range from -40 °C to +85 °C is scheduled for Q4/2026.
Benefits at a glance:
- Support for the latest Wi-Fi 7 (IEEE 802.11be) standard
- Data rates up to 5.8 Gbit / s (BE200) or 2.4 Mb / s (BE202)
- Channel bandwidth of 320 MHz and 4K QAM modulation
- Multi-link operation (MLO) for simultaneous use of multiple frequency bands
- Deterministic latency for stable real-time connections
- Frequency bands: 2.4 GHz, 5 GHz and 6 GHz
- TX/RX 2 x 2 streams, integrated Bluetooth v5.4
- Available as M.2 2230 (pluggable) or M.2 1216 (solderable)
- WPA3 security standard
Typical application:
- Laptops, PCs and edge computers
- Transportation and connected vehicle architectures
- Medical devices and healthcare systems
- POS terminals and interactive kiosks
- Digital signage solutions and video streaming systems
- Surveillance technology and smart security
- Consumer and IIoT applications
For more information to the Wi-Fi 7 modules and other IOTCOM solutions by Intel® and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
