The compact, flat and versatile design is ideal for applications with limited space and a good alternative to 3.5-inch or NUCs. The energy-efficient design, wireless installation, easy maintenance and flexible expandability make the K4021-U mSTX a particularly cost-effective solution.
The platform was developed for 24/7 continuous operation and is designed for operating temperatures from 0°C to +60°C. The use of high-quality components and strict lifecycle management also ensure high quality and long-term, reliable use.
Robust connectivity and excellent expandability

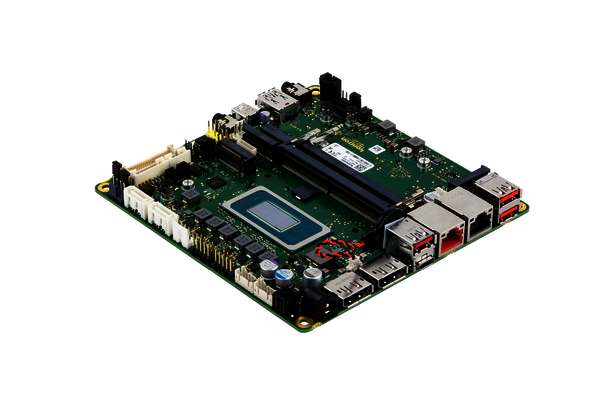

Designed with expandability in mind, the K4021-U mSTX motherboard features four M.2 slots for storage and Wi-Fi modules, as well as numerous connection options, including two COM ports, Thunderbolt 4, USB 3.2 Gen2, and GPIO. This allows the board to be customized for a wide range of industrial applications.
Cutting-edge performance thanks to Intel® Core™ Ultra processors
Performance and efficiency are based on the latest Intel® Core™ Ultra 7 and 5 processors, which are part of the Meteor Lake U SoC family. The integrated Neural Processing Unit (NPU) extends AI capabilities and enables a 20x optimization of performance-per-watt. This makes it ideal for image recognition or automation applications.
Main features:
- Latest DDR5 memory technology (DDR5-5600, max. capacity 96 GB)
- Intel Graphics® - within the SoC powered by Intel Xe-Architecture®
- Up to four simultaneous 4K60 HDR displays or two 8K displays
- Dual-channel LVDS (24-bit) and eDP V1.4b (4K) onboard
- COM ports, Thunderbolt 4, USB 3.2 Gen2, GPIO
- Operating temperature range from 0 °C to +60 °C
- Suitable for 24/7 continuous operation
Application examples:
- POS/POI
- Production optimization
- Medical
- Digital signage
- Kiosk solutions
Further information can be found in the corresponding Rutronik TEC article.
For more information to Kontron´s K4021-U mSTX motherboards and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
