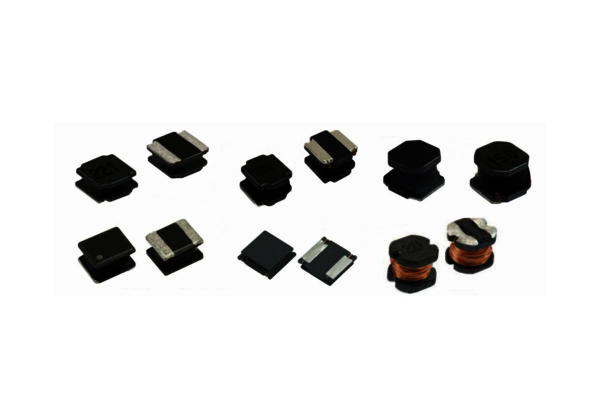

The wire-wound ferrite core construction enables low internal resistance, improved efficiency and reduced leakage currents. The ferrite core is encapsulated in epoxy resin-embedded iron for magnetic shielding.
Overview of the extended portfolio:
| Type | Size in mm | Shielded | Inductance range |
| IDCP-2218-01 | 5.8 x 5.2 x 4.5 | - | 1 µH to 680 µH |
| IDCP3020-01 | 7.8 x 7.0 x 5.3 | - | 1 µH to 2,200 µH |
| IDCS3014 | 7.6 x 7.6 x 3.5 | + | 3.3 µH to 470 µH |
| IFDC2020CZ | 6.0 x 6.0 x 3.0 | + | 2.2 µH to 470 µH |
| IFDC2525DZ | 7.0 x 7.0 x 4.0 | + | 1.5 µH to 1,000 µH |
| IFDC3030EZ | 7.8 x 7.8 x 5.0 | + | 1.0 µH to 470 µH |
| IFDC5050JZ | 12.5 x 12.5 x 10.0 | + | 1 µH to 1,200 µH |
| IFSC1616AH-01 | 4.0 x 4.0 x 1.8 | + | 0.33 µH to 330 µH |
| IFSC-2020BZ-01 | 5.0 x 5.0 x 2.0 | semi | 2.2 µH to 10 µH |
| IFSC2020DE-02 | 6.0 x 6.0 x 4.5 | + | 180 µH |
| IFSC2020DZ-01 | 5.0 x 5.0 x 4.0 | + | 0.22 µH to 10 µH |
| IFSC3232DB-02 | 8.0 x 8.0 x 4.2 | + | 0.82 µH to 470 µH |
Application examples:
- Energy storage, noise suppression and filtering in DC/DC converters and LC filters for:
- Portable consumer electronics
- Home entertainment devices such as TVs, soundbars, audio and gaming systems
- General computing devices such as desktops, monitors and scanners
- Home appliances
For more information to the portfolio extension of inductors by Vishay and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
