CW47 - URT 3.5" TFT mit Res. Touch - UMSH-8252MD-3T

11/21/2022 Product News

URT brings colour into your life!

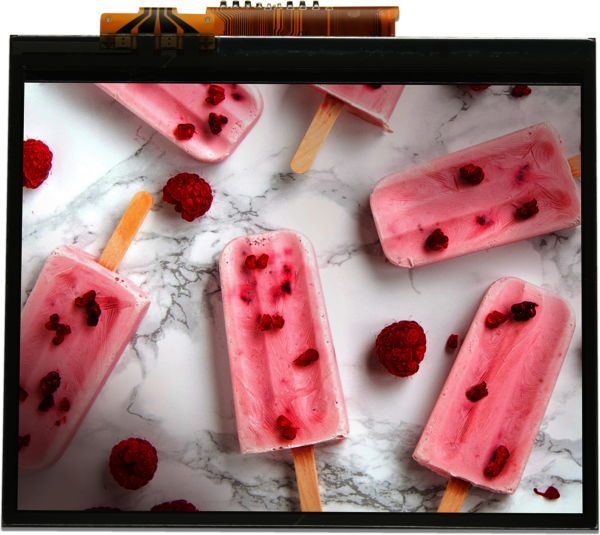

With more than 30 years of experience on the display market, URT is the right choice for a stable supply over several years. This 3.5“ TFT-LCD comes with 320x240 resolution, outline dimension of 76.9 x 63.9 x 4.3 and 262k color depth. Due to the integrated resistive touchscreen, it is a perfect match for many industrial applications, e.g. handheld, HVAC, control units and many others. As this display has a built-in SSD2119 controller from Solomon Systech, customer can choose between using RGB or MCU interface for his application.

Key Features

Size: 3.5"
Resolution: 320 x 240 Pixel
Active Area: 70.08 x 52.56
Brightness: 280 cd/m²
Contrast: 200:1
Op. Temp.: -20 bis +70°C
Recomm. Interface: MCU/RGB interface
Touch:  Resistive


Key Applications

Measuring devices
Handheld applications
Industrial small displays
Audio applications
Small status displays

Key Benefits

High quality and optical performance
Long-term availability
Stable availability
