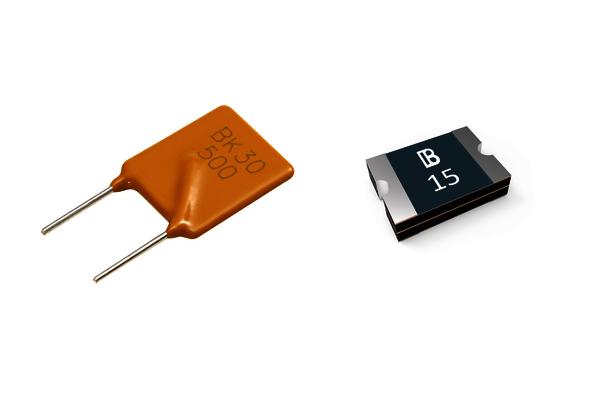

The SMD variants offer resettable miniature overcurrent protection with a holding current IHOLD of up to
7 A and a maximum voltage of 24 V, 30 V, 48 V, or 60 V. They impress with their fast response to fault current and their low profile, whose compact design allows more space on the PCB. The SMD fuses are RoHS compliant, lead and halogen free, certified to UL/CULE482628, RoHS2011/65/EU TUV B160696048001, and DIN EN 14582:2007. They are also compatible with high-temperature soldering processes.
The radially wired, resettable fuses enable overcurrent protection with a holding current IHOLD of up to 14 A. This series is suitable for applications with higher operating voltages of 16 V, 30 V, 60 V, 130 V, 250 V, or 500 V due to its high-voltage overvoltage capability. These fuses also operate reliably at temperatures of -40 °C ~ +85 °C. They can be stored almost indefinitely at 30 °C room temperature and a maximum humidity of 85 % (MSL1 according to J-STD-020). Their flame-retardant epoxy polymer insulation material meets the requirements of UL94 V-0. In addition, they are available in lead-free versions.
For more information about the PTC fuses from YAGEO and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.
