Both the operate and release times of the relay are just 30 ms. The high dielectric strength
(2,500 VAC / min between contacts of the same polarity as well as between coil and contact) and the high insulation resistance (1,000 mΩ between coil and contact as well as between contacts of the same polarity) further increase both efficiency and durability. At 15 A, the contact voltage drop is only
0.2 V (max.).
Benefits at a glance:
- Currently smallest DC relay in the industry
- Up to 200,000 switching operations / minute
- Operating temperature range: -40 °C to 85 °C
- Impulse withstand voltage up to 4,500 V
- Electrical load capacity: up to 800 VDC and 30 A
- Operate time: max. 30 ms
- Release time: max. 30 ms
- Exceptional robustness and shock resistance of 490 m / s²
Application examples:
- Energy storage systems
- EV charging systems
- PV inverters

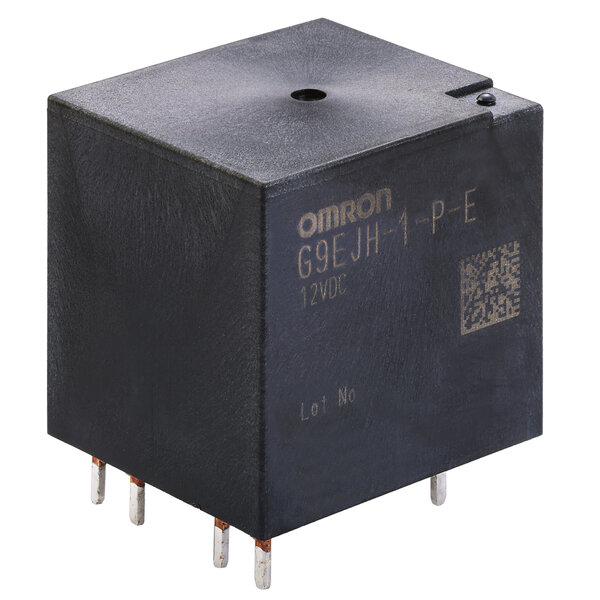

For more information to the GJH-1-E relays by Omron and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
