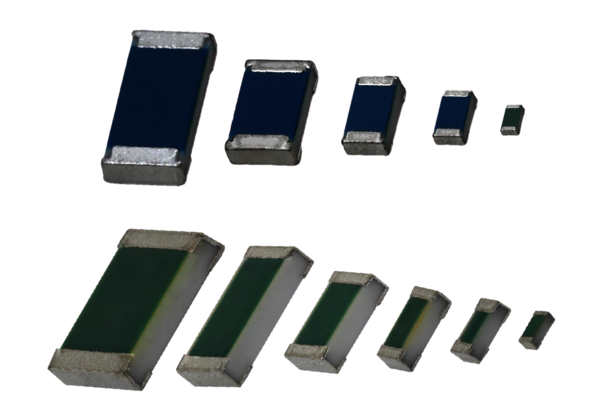

The MC AT series is available in the extremely compact sizes 0201, 0402, 0603, 0805, and 1206. With a tolerance of up to ±0.1 % and a temperature coefficient (TCR) of ±25 ppm / K (0201), they meet the highest precision requirements. Their outstanding long-term stability (≤0.05 % after 1,000 hours under rated load) makes them the first choice for sensitive applications.
The TNPW e3 series, on the other hand, scores as a particularly economical alternative in the thin-film range. With sizes of 0201, 0402, 0603, 0805, 1206 and 1210, tolerances from ±0.1 % and a
TCR of ±25 ppm / K (0201), these components offer an excellent balance of performance and price. Thanks to AEC-Q200 qualification and robust construction, they are ideally suited for industrial and automotive applications. In addition, TNPW resistors can be easily integrated into existing designs without compromising on quality and reliability.
Both series deliver consistently high performance, making them a reliable and cost-effective solution for developers and purchasers who value long-term availability and process reliability.
The most important benefits of the TNPW e3 series at a glance:
- Package sizes: 0201, 0402, 0603, 0805, 1206 and 1210
- Resistance up to 3.01 MΩ
- TCR from ±25 ppm / K (0201)
- Tight tolerances from ±0.1 %
- Nominal power P70 up to 0.52 W (1206)
- AEC-Q200 qualified and RoHS compliant
- Operating temperature range from -55 °C to +175 °C
- Date code for a batch (optional)
- Humidity resistance: |ΔR/R| < 0.1% (85 °C; 85% RH; 1,000 h)
- Sulfur resistance: tested according to ASTM B 809 (90 ºC, 1,000 h) and ANSI/EIA-977 (105 ºC, 1,000 h)
The most important benefits of the MC AT series at a glance:
- Package sizes: 0201, 0402, 0603, 0805 and 1206
- Resistance up to 10 MΩ
- TCR of ±25 ppm / K (0201)
- Tight tolerances of ±0.1%
- Operating voltages from 25 V to 200 V
- Power ratings from 75 mW to 520 mW at +70 °C ambient temperature
- Operating temperature range from -55 °C to +175 °C
- AEC-Q200 qualified and RoHS compliant
- Sulfur resistance: tested according to ASTM B 809 (90 ºC, 1,000 h) and ANSI/EIA-977 (105 ºC, 1,000 h)
Application examples for both series:
- Automotive industry
- Industrial equipment with increased requirements
- Test and measurement equipment
- Medical devices
For more information to the thinfilm resistors from Vishay and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
