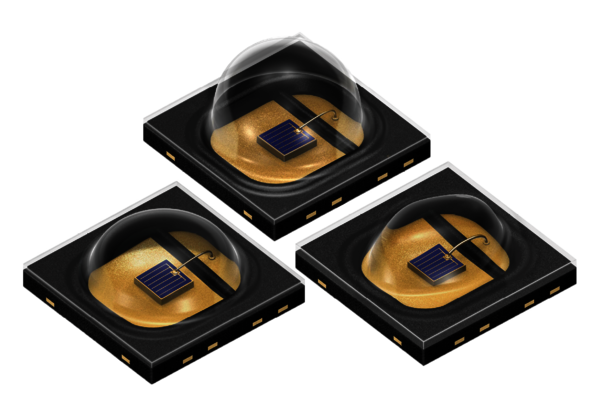

Thanks to their improved design, the IR LEDs of the OSLON™ Black SFH 471XB family deliver exceptional light output and reliability even under the most challenging conditions, setting new standards with integrated IR:6 technology. An improvement of up to 25 % in brightness results in, for example, the same light output with fewer LEDs in light therapy devices thereby significantly reducing the space required.
Specifications:
OSLON™ Black SFH 4713B
- Brightness: 980 mW
- 80° beam angle
OSLON™ Black SFH 4714B
- Brightness: 980 mW
- 150° beam angle
OSLON™ Black SFH 47167B
- Brightness: 940 mW
- 110 ° x 130 ° rectangular FoI (Field of Illumination)
Common benefits briefly:
- Housing made of clear silicone
- ESD: 2 kV according to ANSI/ESDA/JEDEC JS-001 (HBM, class 2)
- High-efficiency IR light source
- Wavelength: 850 nm
- Low thermal resistance of max. 2.5 K / W (SFH 4713B: 2.6 K / W)
- Operating temperature range from -40 °C to +125 °C
Application examples:
- Access control and security
- Authentication
- Eye, face and hand tracking
- Factory automation
- Home and building automation
- Medical Devices
For more information to the OSLON™ Black SFH 471XB LEDs from ams OSRAM® and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
