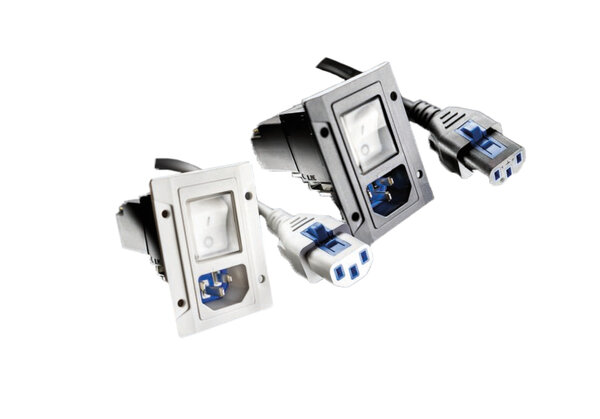

The proven SCHURTER DG11 is now available with a magnetic release in the integrated TA35 circuit breaker. This provides reliable protection against very high overcurrents (short circuits), eliminating the need for additional fuses.The recessed rocker switch prevents accidental shutdown.
Completely optimized, the appliance plugs feature upgrades such as special sealing elements (gaskets) on the plug and mains connection cable, achieving a very high IP67 protection rating. The plugs are also equipped with V-Lock pull-out protection as standard to prevent accidental interruption of the power supply.
Benefits at a glance:
- Standard V-Lock cord retention
- Ratings IEC 10 A / 250 VAC; 50 Hz
- Ratings UL/CSA 15 A / 250 VAC; 60 Hz
- Front Side IP40 / IP67 acc. to IEC 60529
- Various mounting options
- Device protection switch with thermal or thermal-magnetic module available
- For use on devices with IEC / UL62368-1 standard
Main application areas:
- For applications in harsh environments with the highest safety and reliability requirements
- Industry
- Medical technology
For more information to the DG11 by SCHURTER and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
