SATA 6 Gb/s F-60; F-50; X-60 Family

SSDs for highly demanding applications

The Swissbit SATA 6 Gb/s durabit™ family offers highest MLC endurance and sustained performance by combining a powerful controller with DRAM supported FTL and increased over-provisioning.

The SSDs in various form factors achieve data transfer rates up to 520 MB/s in sequential access and 75,000 IOPS in 4 KB random access. In addition, the durabit™ series features Swissbit's proven power fail safety, ATA security feature set, NCQ, TRIM, advanced wear leveling and bad block management, and in-field firmware update functionality. The Swissbit lifetime monitoring tool provides detailed S.M.A.R.T. based status information.

Key Facts

  • High performance and best endurance with MLC technology
  • Data Care Management for high data retention
  • Long availability and service life

Features

  • Doubled TBW values for enterprise type applications due to durabit architecture
  • High sustained random IOPS rate
  • NCQ / Trim support
  • Support by Swissbit lifetime monitoring tool with detailed SMART analysis

Benefit

durabit™ SATA 6 Gb/s SSDs use a DRAM supported page based FTL and increased over-provisioning. For typical embedded applications durabit™ achieve up to four times higher reliability levels and data rates compared to standard SSDs. Based on the latest MLC NAND technology and intelligent firmware durabit™ meets the requirements and high demands of today's industrial and NETCOM applications.

What Makes This Supplier or Product Unique, Distinctive or Innovative?

Alongside their architectural benefits, Swissbit´s MLC products excel by a rugged design, long availability, industrial temperature support and firmware features that improve retention and power failure protection. Extensive qualifications verified the high reliability and compatibility of the X-60 series.

The F-60 and F-50 CFast™ and the X-60 family in SlimSATA, mSATA, M.2 and 2.5" form factors are available in different capacities from 8 to 960GB.

Swissbit SATA GEN3 Product Range

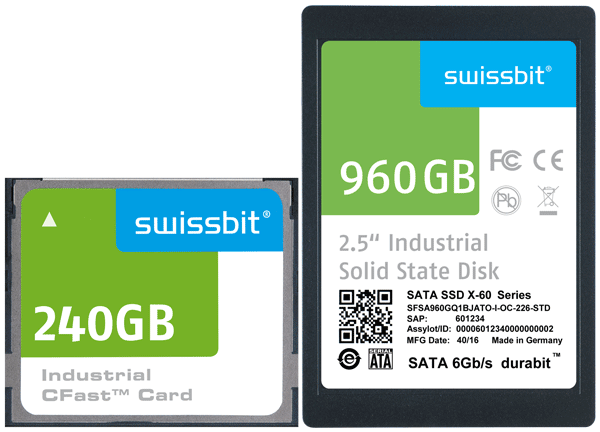

F-60 Series

Industrial CFastTM

Card F-60 Series

SATA III - 6.0 Gbit/s


X-60 Series

Industrial 2.5"

SATA SSD X-60 Series

SATA III - 6.0 Gbit/s


X-60s Series

Industrial SLIM SATA SSD

(MO-297) X-60s Series

SATA III - 6.0 Gbit/s


X-60m Series

Industrial mSATA SSD

(MO-300 Full Size) X-60m Series

SATA III - 6.0 Gbit/s

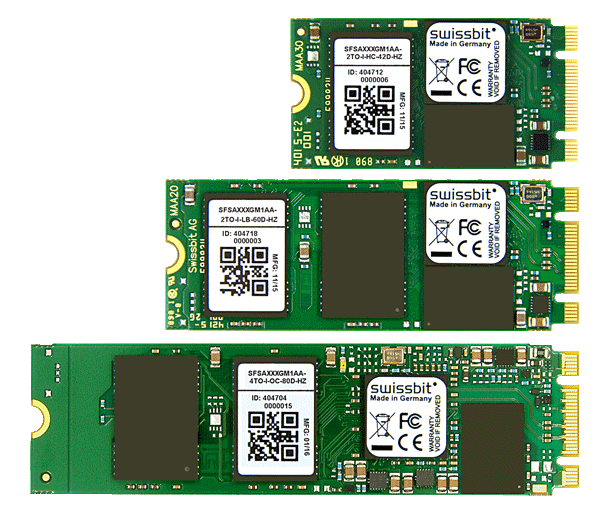

X-60m2 (2242) Series

Industrial M.2 SATA SSD

(2242) X-60m2 Series

SATA III - 6.0 Gbit/s


X-60m2 (2260) Series

Industrial M.2 SATA SSD

(2260) X-60m2 Series

SATA III - 6.0 Gbit/s


X-60m2 (2280) Series

Industrial M.2 SATA SSD

(2280) X-60m2 Series

SATA III - 6.0 Gbit/s
