Stanley's Infrared LED, Ultraviolet LED and Light Receiving Device Solutions

Our LED devices have been developed mainly in the visible light spectrum for various applications represented by automotive headlamps. By making use of various high reliability and high efficiency technologies centering on LEDs for the automotive lamps, as well as various packaging technologies accumulated through our long history of being pioneer LED manufacturers, we are now focusing on infrared LEDs, light receiving devices, ultraviolet LEDs.

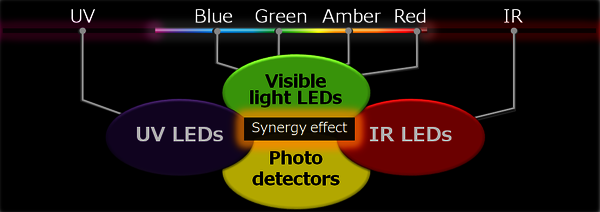

We offer new functions and plus value obtained through the synergy of each device.


Optimal Light Source for Night Illumination and Biometrics

Compact high-power IREDs equipped with a newly developed high-output, high-efficiency LED die with a low thermal resistance ceramic substrate. It is the best light source for camera night illumination support and biometric authentication. Recently, in the automotive field many cameras are being deployed for driver monitoring and automatic driving support; our IREDs can also be used as light sources in night vision applications. The IREDs are optimal also for the security field, as a light source for security cameras installed indoors or outside. They contribute for downsizing of the final product, possessing high luminous efficiency and low heat generation; they can be used for biometric authentication of small devices, including personal computers and others.

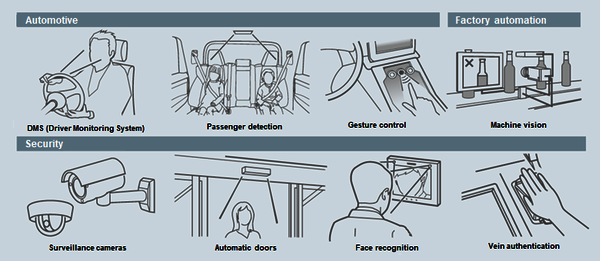

Applications

Automotive

Features of Products

High-power IREDs; MFN1105/6M, MGN1105/6M

  • High reliability package for automotive applications
  • High efficiency, low thermal resistance, low forward voltage Wavelength variation (855nm, 945nm)
  • Light distribution variation (60deg, 120deg)
  • Dimensions: 3.8 x 3.8mm t=2.8mm (5M), t=2.1mm (6M)


Ultra high-power IREDs; MHN1105/6M

  • High reliability package for automotive applications
  • World-class radiant flux (total luminous flux)
  • Low thermal resistance, low forward voltage
  • Invisible red light spectrum (945nm)
  • Light distribution variation (60deg, 120deg)

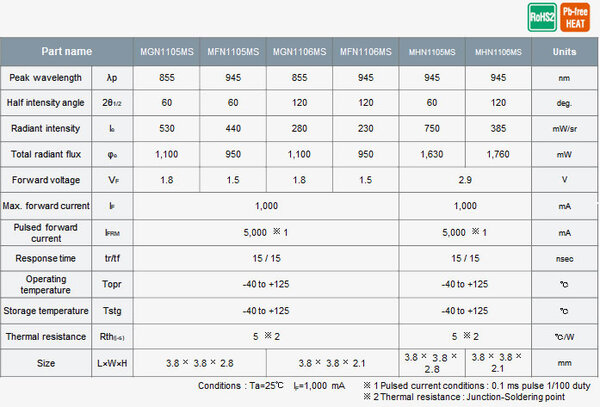

Product Specifications


Security

Features of Products

MFN1107/8M, MGN1107/8M

  • Black package optimal for security uses
  • High efficiency, low thermal resistance, low forward voltage
  • Wavelength variation (855nm, 945nm)
  • Light distribution variation (60deg, 120deg)
  • Dimensions: 3.8 x 3.8mm t=2.8mm (7M), t=2.1mm (8M)

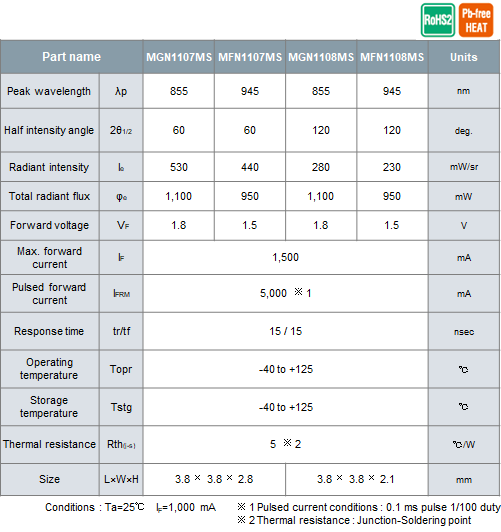

Product Specifications


Photodetectors

Features of Products

KUA0121C

  • Contactless sensing
    Increased flexibility of design compared to mechanical sensors
    Sensing through IR LED emission and photodetectors
    Short range detection (max. 1 to 2 mm)
  • Compact size (1.1mm height)
    Downsizing of final unit
    Component cost reduction
  • Compatible with JEDEC MSL 2a

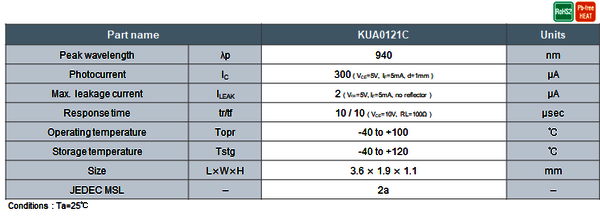

Product Specifications
