PROFET™+2

High-side Switches for Energy Efficiency and Miniaturization

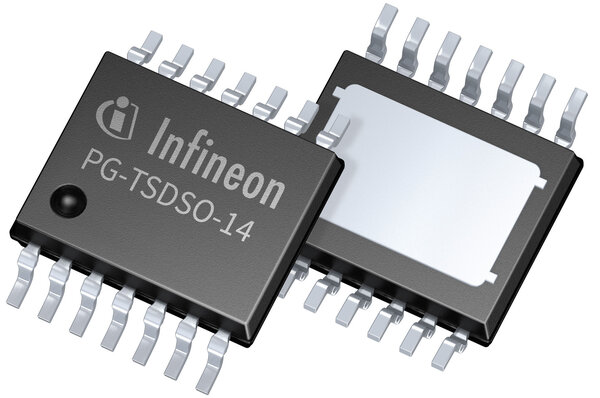

The Newest PROFET™+2 family of protected high-side power switches (8mΩ to 200mΩ) in PG-TSDSO-14 exposed pad package provides state of the art diagnostics and protection features.

The family offers Market 1st BEST form factor, the lowest RDS(ON) (2x8mΩ)/ Smallest package (PG-TSDSO-14) pin pitch 0.65mm.

The whole family is compatible with the hardest reverse battery requirement on the market, with ReverSave™ available for the 1st time in Market on a single chip product!

The family offers outstanding energy efficiency with reduced current consumption, state of the art current sense accuracy (KILIS ), benchmark low cranking voltage capability and faster switching/slew rate with no impact on EMC!

Main Customers Benefits:

  • 50% reduced internal operating current consumption
  • Simplified & cost efficient ground network
  • Outstanding current sense accuracy (KILIS ) ≤ 5% @ nominal load current
  • Benchmark cranking voltage capability able to work down to 3.1 V
  • Smaller package size for area savings
  • Optimized for design flexibility across the family by pin to pin compatibility
  • Very low output leakage current (≤ 0.5 μA up to 85°C)

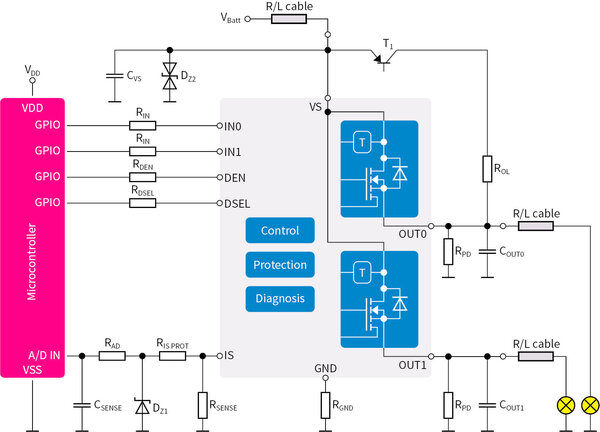

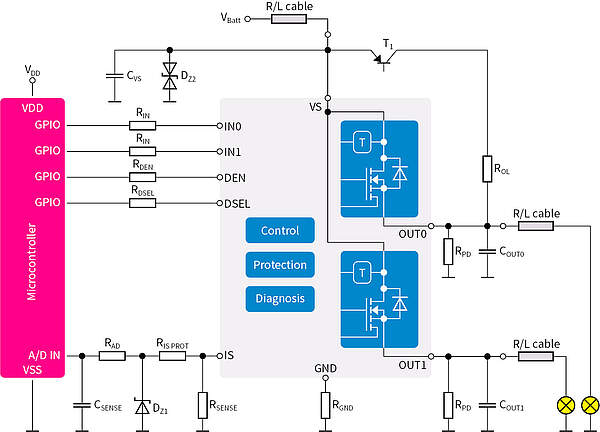

Application Diagram:

Additional Infos:

Lead Product: BTS7008-2EPA

SP Number: SP001208318

OPN: BTS70082EPAXUMA1

Key Applications:

  • Automotive 12 V lighting load applications capacitive loads e.g. halogen bulbs and LED modules
  • Resistive loads e.g. small seat heating applications requiring below 8A nominal currents

Key Features:

  • Operating voltage range 3.1-28 V with 3.3 V and 5 V compatible logic input
  • Protection: current tripping, over temperature, overvoltage, load dump, reverse polarity, short-circuit
  • Diagnosis: load current sense output
