Power Up with PROFET™
High-side smart power switches for automotive and industrial applications
Discover Infineon’s wide range of high-performance, reliable, and scalable solutions for power management and distribution in various applications, from 12 V to 48 V systems, enabling efficient, safe, and innovative designs for the automotive, industrial, and other markets.
Click on the buttons below to directly jump to your area of interest
12 V Automotive Applications

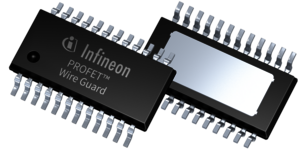

e. g. Body Electronics/Body Control Modules with PROFET™ +2 12 V und PROFET™ Wire Guard 12 V
PROFET™ +2 12 V:
- High short circuit robustness and scalable design for various load currents from 0.5 A to 35 A
- Comprehensive protection functions, fast current sense diagnosis, and low power dissipation
- Suitable for high-current loads, such as heaters, glow plugs, pumps, and fans, with high energy capability and low RDS(ON)
PROFET™ Wire Guard:
- Functional safety features, including ISO 26262 compliance and provision of a safety manual for integration in automotive safety applications
- Embedded hardware-based wire protection via integrated I²t calculation functions for functional safety-relevant applications
Motherboard
M-SMART-POWER-SWT-5
Smart Power Switches Motherboard with a microcontroller incl. software for evaluation of the device. The board supports stand-alone operation and PC operation with the GUI Infineon Smart Power Switches Configuration Wizard. A daughterboard of the device is needed.
or
M-SMART-POWER-LITE-5
Smart Power Switches Motherboard without a microcontroller for evaluation of the device. The board supports stand-alone operation.
For PC operation with the GUI Infineon Smart Power Switches Configuration Wizard, an additional uIO-Stick (UIOSTICKTOBO1) is needed. A daughterboard of the device is needed.
The Motherboards are designed to handle devices of the product families PROFET™ + 12/24/48 V, PROFET™+2 12 V, PROFET™ Wire Guard 12 V, Power PROFET™ + 12/24/48 V, and SPOC™ +2. The equipment is suitable for evaluating resistive, capacitive, and inductive loads, as well as for driving devices with a serial peripheral interface (SPI).
Daughterboard BTS7200-4EPA
SMART7 PROFET+2 12 V BTS7200-4EPA DAUGHTER BOARD
This daughterboard comes with 1 high-side switch of BTS7200-4EPA and is compatible with the PROFET™+2 12 V motherboard. The purpose of this board is to provide a quick pick and place solution for costumers' lab evaluations. The motherboard in combination with the daugtherboard is capable to drive typcial automotive loads.
Daughterboard BTS7200-2EPC
SMART7 PROFET+2 12 V BTS7200-2EPC DAUGHTER BOARD
This daughterboard comes with 1 high-side switch of BTS7200-2EPC and is compatible with the PROFET™+2 12 V motherboard. The purpose of this board is to provide a quick pick and place solution for costumers' lab evaluations. The motherboard in combination with the daugtherboard is capable to drive typcial automotive loads.
Daughterboard BTG7016A-1EPW-1
This daughterboard comes with one PROFET™ Wire Guard 12 V smart high-side switch of BTG7016A-1EPW and is compatible with the PROFET™ ONE4ALL Motherboard. It provides a quick pick and place solution for lab evaluations. The motherboard in combination with the daughterboard is capable of driving typical automotive loads.
Daughterboard BTG70013A-1ESW-1
This daughterboard comes with one PROFET™ Wire Guard 12 V smart high-side switch of BTG70013A-1ESW and is compatible with the PROFET™ ONE4ALL Motherboard. It provides a quick pick and place solution for lab evaluations. The motherboard in combination with the daughterboard is capable of driving typical automotive loads.
Motherboard
PROFET ONE4ALL MB V1
SMART7 PROFET+2 12 V and motherboard
The motherboard is designed for PROFET™ +2 12 V and for devices formerly known as PROFET™ Load Guard 12 V, with compatibility for future devices. Banana connectors enable power line connections. The board supports stand-alone operation. For PC operation with the GUI Infineon Smart Power Switches Configuration Wizard, an additional uIO-Stick (UIOSTICKTOBO1) is needed. This board offers a convenient pick and place solution for lab evaluations, capable of driving automotive loads when combined with the daughterboard.
Daughterboard BTG7050-2EPL DAUGH BRD
Daughterboard with PROFET™ Load Guard 12 V BTG7050-2EPL for evaluation with respective motherboard
This daughterboard comes with 1 smart high-side power switch of BTG7050-2EPL and is compatible with the PROFET™ ONE4ALL Motherboard. It provides a quick pick and place solution for lab evaluations. The motherboard in combination with the daughterboard is capable of driving typical automotive loads.
Daughterboard BTG7090-2EPL DAUGH BRD
Daughterboard with PROFET™ Load Guard 12 V BTG7090-2EPL for evaluation with respective motherboard
This daughterboard comes with 1 smart high-side power switch of BTG7090-2EPL and is compatible with the PROFET™ ONE4ALL Motherboard. It provides a quick pick and place solution for lab evaluations. The motherboard in combination with the daughterboard is capable of driving typical automotive loads.
24/48 V Applications
e. g. Transportation with PROFET™ + 24 V and Power PROFET™ +
- Designed for higher voltage supply systems and harsh operation environments, with protection functions and fast current sense diagnosis
- Suitable for applications requiring high ambient temperature tolerance, with AEC-Q100 Grade 1 and Grade 0 qualified products available
Motherboard
M-SMART-POWER-SWT-5
Smart Power Switches Motherboard with a microcontroller incl. software for evaluation of the device. The board supports stand-alone operation and PC operation with the GUI Infineon Smart Power Switches Configuration Wizard. A daughterboard of the device is needed.
or
M-SMART-POWER-LITE-5
Smart Power Switches Motherboard without a microcontroller for evaluation of the device. The board supports stand-alone operation.
For PC operation with the GUI Infineon Smart Power Switches Configuration Wizard, an additional uIO-Stick (UIOSTICKTOBO1) is needed. A daughterboard of the device is needed.
The Motherboards are designed to handle devices of the product families PROFET™ + 12/24/48 V, PROFET™+2 12 V, PROFET™ Wire Guard 12 V, Power PROFET™ + 12/24/48 V, and SPOC™ +2. The equipment is suitable for evaluating resistive, capacitive, and inductive loads, as well as for driving devices with a serial peripheral interface (SPI).
Daughterboard BTT6200-4ESA-2
The BTT6200-4ESA Evaluation Board is a PCB with soldered PROFET™ + 24 V device on it. It's a stand-alone evaluation board for 4 channel devices. This board is the successor of BTT6200-4EMA BOARD.
Daughterboard BTT6035-1ERL-2
Evaluation daughterboard for BTH6035-1EPL of the PROFET™ + 48 V family
Evaluation daughterboard for BTH6035-1EPL that requires additional motherboard for operation. M-SMART-POWER-LITE without a microcontroller but with connectivity to control the device with lab equipment or M-SMART-POWER-SWT-5 with microcontroller for use with our Infineon Smart Power Switches configuration Wizard (GUI) available via the Infineon Developer Center. On the daughterboard is a dip switch with different values provided for evaluation.
Daughterboard BTT6050-2ERA-2
The BTT6050-2ERA Daughterboard is a small PCB with soldered PROFET™ + 24 V device on it. It has to be used in combination with the PROFET+ Motherboard . This board is the successor of BTT6050-2EKA DMB.ADAPT.
Arduino Shield BOARD BTH50015-1LUA
RDS (on) @ Tj = 25°C: 1.5 mΩ | Nominal Load Current per channel: 35 A | IL (Short Circuit Current): 90 A | ISO 26262-ready
The 48V protected switch shield for Arduino is a flexible evaluation board dedicated to drive loads. It comes with two devices that can be evaluated: BTH50015-1LUA (RDS(ON) 1.5 mΩ) and BTH50030-1LUA (RDS(ON) 3.0 mΩ) the lowest ohmic smart high-side power switches available in the market for 24 V and 48 V power nets.
24 V Industrial Applications
e. g. Factory Automation/Industrial Control with PROFET™ Industrial
- Outstanding energy robustness, suitable for high-side relay drivers and switching high-inductance loads
- High-voltage applications (VBAT up to 58 V) and high-speed PWM applications (up to 1 kHz) supported
- Enables smooth switching of applications with long wiring or inductive loads, with space-saving design options available
Demoboards
Demoboard ITS6035S
The DEMOBOARD ITS6035S is a PCB with soldered PROFET™ Industrial device on it.
Demoboard ITS4130Q
The ITS4130Q demo board can be used to easily evaluate the 4-channel Industrial PROFET™ ITS4130Q. The demo board is fully equipped with peripheral components and corresponding connectors aside the ITS4130Q.
PROFET™ + 48 V
Automotive Smart High-side Switch
- Scalable family of 48 V high-side smart power switches with protection features and diagnosis for 48 V systems
- Comprehensive protection functions, current sense diagnosis, and high short-circuit robustness for driving loads from 1 A to 5 A nominal load current
- Suitable for 48 V board nets, with extended operating voltage range (up to 60 V) and adjustable current limitation for some devices
- Power PROFET™ + 24/48 V automotive smart high-side switches are also suitable for 48 V applications.
Motherboard
M-SMART-POWER-SWT-5
Smart Power Switches Motherboard with a microcontroller incl. software for evaluation of the device. The board supports stand-alone operation and PC operation with the GUI Infineon Smart Power Switches Configuration Wizard. A daughterboard of the device is needed.
or
M-SMART-POWER-LITE-5
Smart Power Switches Motherboard without a microcontroller for evaluation of the device. The board supports stand-alone operation.
For PC operation with the GUI Infineon Smart Power Switches Configuration Wizard, an additional uIO-Stick (UIOSTICKTOBO1) is needed. A daughterboard of the device is needed.
The Motherboards are designed to handle devices of the product families PROFET™ + 12/24/48 V, PROFET™+2 12 V, PROFET™ Wire Guard 12 V, Power PROFET™ + 12/24/48 V, and SPOC™ +2. The equipment is suitable for evaluating resistive, capacitive, and inductive loads, as well as for driving devices with a serial peripheral interface (SPI).
Daughterboard BTH6035-1EPL-4
Evaluation daughterboard for BTH6035-1EPL of the PROFET™ + 48 V family
Evaluation daughterboard for BTH6035-1EPL that requires additional motherboard for operation. M-SMART-POWER-LITE without a microcontroller but with connectivity to control the device with lab equipment or M-SMART-POWER-SWT-5 with microcontroller for use with our Infineon Smart Power Switches configuration Wizard (GUI) available via the Infineon Developer Center. On the daughterboard is a dip switch with different values provided for evaluation.
Daughterboard BTH6100-2EPA-4
Evaluation daughterboard for BTH6100-2EPA of the PROFET™ + 48 V family
Evaluation daughterboard for BTH100-2EPA that requires additional motherboard for operation. Here we have 2 options available: M-SMART-POWER-LITE without a microcontroller but with connectivity to control the device with lab equipment or M-SMART-POWER-SWT-5 with microcontroller for use with our Infineon Smart Power Switches configuration Wizard (GUI) available via the Infineon Developer Center.
Infineon SPICE
This powerful tool enables designers to simulate and model complex analog systems, ensuring reliable and efficient performance. As an open tool, Infineon Spice is compatible with all SPICE product models from Infineon and third-party models and is available free of charge.
