Smart Motor Control Solutions from Infineon
Packing ease of use and high efficiency into a compact footprint
Infineon is a trusted one-stop shop for motor control designers, covering the full spectrum from sensors and microcontrollers through power ICs to security products. Key success factors for all motor control designs are the motor drivers and their controllers at the heart of the system.
Motor driver ICs with diagnostic & protection features
To meet rising customer demands for overall system efficiency, Infineon offers highly integrated circuits such as half- and full-bridges. These ICs reduce the footprint, complexity and power losses of motor control designs. They also come with advanced diagnostic and protection functions for overcurrent and overtemperature, for instance, to ensure high reliability and efficient motor control under all circumstances.
Fast evaluation and prototyping
Cost-efficient hardware, free software and simulation examples enable developers to easily evaluate Infineon's motor control solutions, also supporting fast, cost-effective design prototyping.
Target Applications (Examples)

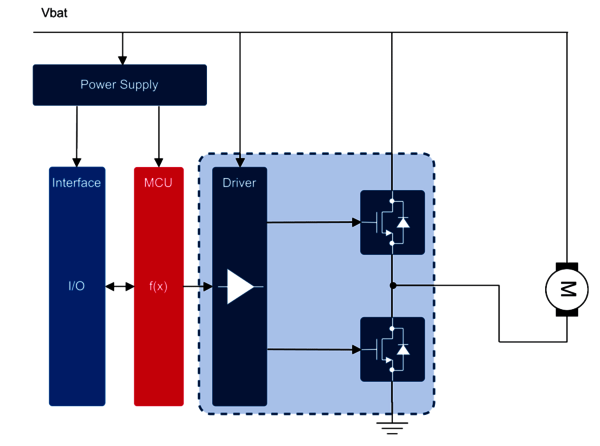

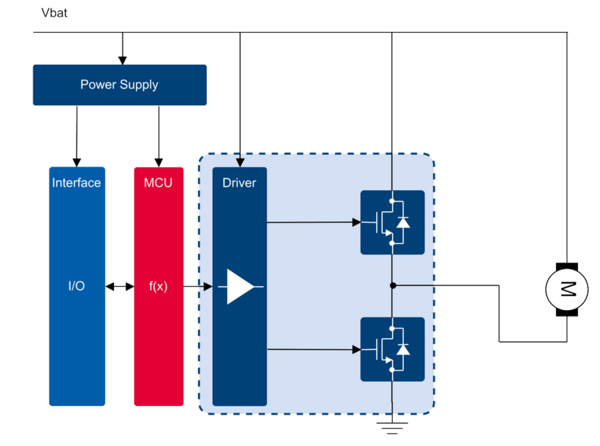

Example Application for Brushed DC Motor Control
The integration of a driver stage and MOSFETs enables significant space savings in a compact design for greater robustness and energy efficiency.
Click Here and Find Our Product Recommendations:
Recommended Products

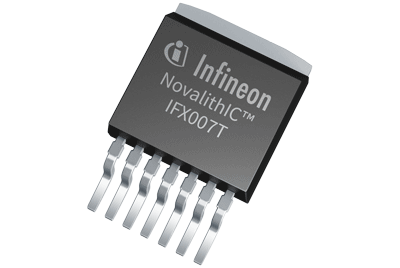

IFX007T Half-bridge NovalithIC™
The NovalithIC™ IFX007T provides a complete, low-ohmic protected half-bridge in a single package. It integrates a p-channel high-side MOSFET, n-channel low-side MOSFET and driver IC.

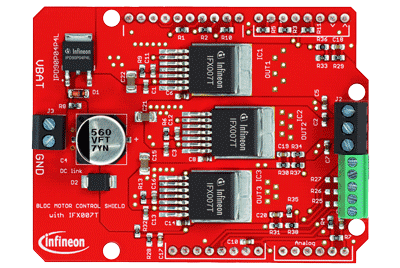

The (BL)DC Motor Control Shield with IFX007T for Arduino is equipped with three smart IFX007T half-bridges and capable to drive two uni-directional (BL)DC motors or one bi-directional DC motor.

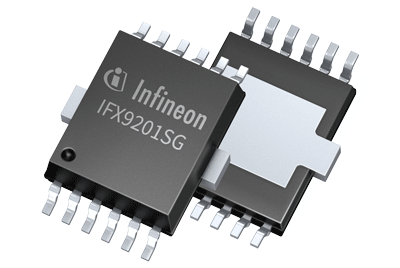

IFX9201 General Purpose 6A H-bridge
The IFX9201SG is a general purpose 6A integrated H-bridge designed for the control of small DC motors and inductive loads.

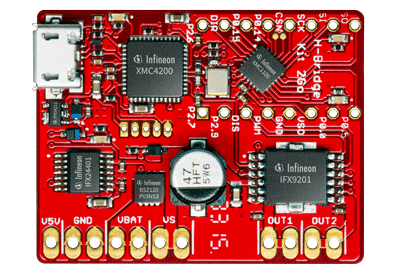

The H-Bridge Kit 2Go is a ready-to-use system which includes all you need on a tiny (30mm x 38mm) board:
- IFX9201 6A H-bridge
- XMC1100 microcontroller based on ARM® Cortex®-M0
- On-board debug interface

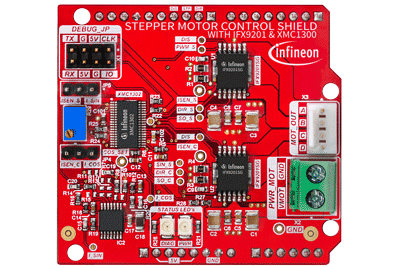

The Stepper Motor Control Shield for Arduino based on Infineon's H-bridge IFX9201 and XMC1300 microcontroller is capable of driving the two coils in a stepper motor featuring dual-h-bridge configuration.

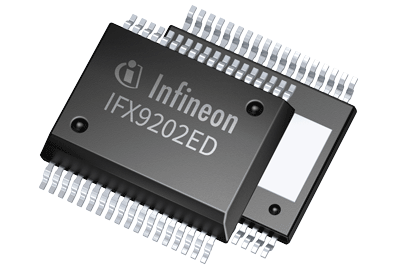

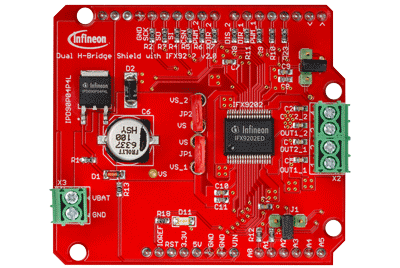

IFX9202 Dual General Purpose 6A H-Bridge

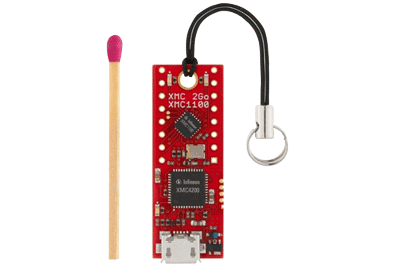

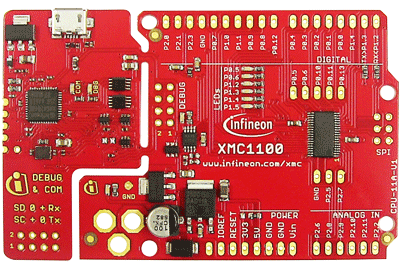

The XMC™ 2Go with the XMC1100 microcontroller is a budget-priced evaluation board equipped with an ARM® Cortex®-M0 CPU running on 32MHz, 64kB Flash and 16kB RAM. The XMC™ 2Go has a complete set of on-board devices, including an on-board debugger to immediately start code development.
XMC™1100 Boot Kit
XMC1100 microcontroller in TSSOP-38 with 64kB Flash and full peripheral set of XMC1100 series
- Detachable SEGGER J-Link
- Board shape & power supply for Arduino
Infineon’s Shields Work with the Following XMC™ Microcontroller Boards
The XMC™ 2Go with the XMC1100 microcontroller is a budget-priced evaluation board equipped with an ARM® Cortex®-M0 CPU running on 32MHz, 64kB Flash and 16kB RAM. The XMC™ 2Go has a complete set of on-board devices, including an on-board debugger to immediately start code development.
XMC™1100 Boot Kit
XMC1100 microcontroller in TSSOP-38 with 64kB Flash and full peripheral set of XMC1100 series
- Detachable SEGGER J-Link
- Board shape & power supply for Arduino

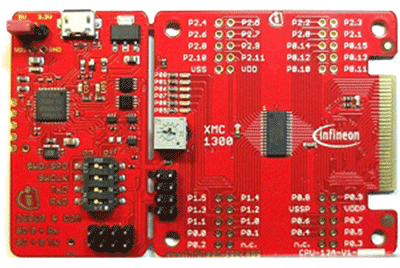

XMC™1300 Boot Kit
XMC1302 Microcontroller in TSSOP-38 with 200kB Flash and full peripheral set of XMC1300 series
- Detachable SEGGER J-Link
Stay tuned! New boards for XMC1400 and XMC4400 microcontrollers will be available soon.
32-bit XMC™ Industrial Microcontroller based on ARM® Cortex®-M
Infineon's XMC™ microcontroller family is perfectly suited as a controller for various types of motors, such as Permanent Magnet Synchronous Motors (PMSM), Brushless DC Motors (BLDC), AC Induction Motors (ACIM), servo motors and brushed DC motors. The free and easy-to-use DAVE™ Integrated Development Environment (IDE) comes with a large number of pre-defined, configurable and tested software blocks (DAVE™ APPs) targeting specific applications, enabling rapid prototyping and application development. There are ready-made motor control example projects available in the form of DAVE™ APPs for all major motor control schemes.
Product Highlights
XMC1302-T038X0200 AB

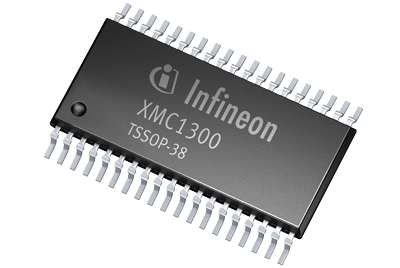

XMC1300 family can integrate all the control and analog interface functions required for sensor less Field Oriented Control (FOC), brushless (BLDC), brushed DC and PMSM motor.
- 200kB Flash, 16kB Ram
- Supply voltage range: 2.0 - 5.5V
- 2 channel USIC (configurable to SPI, UART, IIC, IIS)
- 8 x 16-bit special purpose timers, dead time generation
- Up to 3 x Comparators
- 12 channel 12-bit ADC, 2 x parallel sampling
- Peripherals Clock: 64MHZ
- Temperature sensor
- The system contains real Time Clock and Watch dog Timer
- Pseudo Random Number Generator
- PG-TSSOP-38
- Temperature range: -40° to 105°C
- Analog comparators with only 3mV input offset voltage and a propagation delay of 30ns
XMC1402-T038X0200 AA

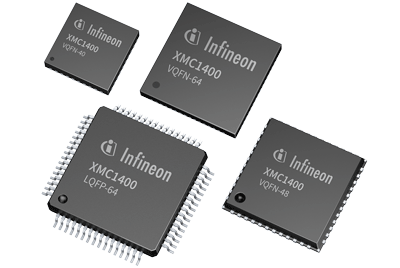

The XMC1400 series devices are optimized for motor control, power conversion and LED Lighting applications and Human-Machine Interface (HMI).
- 200kB Flash, 16kB RAM
- Core frequency: 48MHz
- Peripherals clock: 96MHZ
- Supply voltage range: 2.0 - 5.5V
- 96MHz MATH co-processor for CORDIC & HW Divide
- 8x 96MHz 16-bit special purpose timers, dead time generation
- Hall Sensor & Encoder I/F
- LED brightness & color control module (BCCU)
- 12 channel 12-bit ADC, 2 x parallel sampling
- 2 channel USIC (configurable to SPI, UART, IIC, IIS)
- 3 x comparators
- Temperature sensor
- Pseudo random number generator
- Real time clock
- Watch dog timer
- PG-TSSOP-38
- Temperature range: -40 to 105°C
- 70%+ performance over existing XMC1000

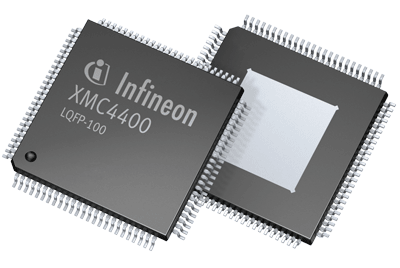

XMC4400-F100K512BA (LQFP-100)
XMC4400-F64K512BA (TQFP-64)
XMC4400 combines Infineon's leading-edge peripheral set with an industry-standard ARM® Cortex™-M4.
- ARM® Cortex™-M4, 120MHz, incl. single cycle DSP MAC and floating point unit (FPU)
- 8-channel DMA + dedicated DMAs for USB and Ethernet
- USIC 4ch [Quad SPI, SCI/UART, I²C, I²S, LIN]
- Supply voltage range: 3.13 - 3.63V
- USB2.0 full-speed on-the-go
- CPU Frequency: 120MHz
- Peripherals Clock: 120MHZ
- eFlash: 512kB including hardware ECC
- 80kB SRAM
- 10/100 Ethernet MAC (/w IEEE 1588)
- 2x CAN, 64 MO
- Packages: PG-LQFP-100 / TQFP-64
- 4x ΔΣ-Demodulator
- Temperature range: -40° to 125°C (LQFP-100) / -40° to 85°C (TQFP-64)
Product Highlights Overview
|
Product |
Operating Voltage min. |
Operating Voltage max. |
Output Current max. |
Quiescent Current |
Package Name |
|
IFX1763LD V |
2.3V |
20V |
0.5A |
0.030mA |
PG-TSON-10 |
|
IFX1763LD V33 |
2.3V |
20V |
500mA |
30µA |
PG-TSON-10 |
|
IFX30081LD V33 |
2.75V |
42V |
0.05A |
5.5µA |
PG-TSON-10 |
|
IFX30081LDV |
2.75 V |
42V |
0.05A |
5µA |
PG-TSON-10 |
|
IFX30081SJV |
2.75 V |
42V |
0.05A |
5µA |
PG-DSO-8 |
|
IFX54211MB V33 |
2.7V |
18V |
150mA |
50µA |
PG-SCT595-5 |
|
IFX54441EJ V |
2.3V |
20 V |
0.3A |
0.030mA |
PG-DSO-8 |
|
IFX54441EJ V33 |
3.8V |
20V |
0.3A |
0.030mA |
PG-DSO-8 |
|
IFX54441EJ V50 |
5.5V |
20V |
0.3A |
30µA |
PG-DSO-8 |
Focus on Supply Management
Supply management has a significant impact on the overall efficiency of an electronic design, potentially helping to reduce energy consumption, extend operating time and minimize operating costs. Explore Infineon's vast portfolio and find the right device for your needs. The wide supply voltage range, low quiescent current, rich protective feature set and choice of packages make Infineon devices the perfect fit across a broad application spectrum.
