Explore Infineon’s Cost Efficient Evaluation Tools

Standardized form factor for plug & play application solution.

Affordable & handy platform for evaluation of products.

System Solution Combining Power ICs or Sensor with Microcontrollers

(For example on a tiny kit 2Go)

32bit industrial microcontroller based on ARM® Cortex® M0/M4

• XMC1x00 (M0)
• XMC4x00 (M4)

Free software examples & development platform Dave™ for XMC™ MCU

XMC™ libs for Arduino IDE

Infineon designer online simulation

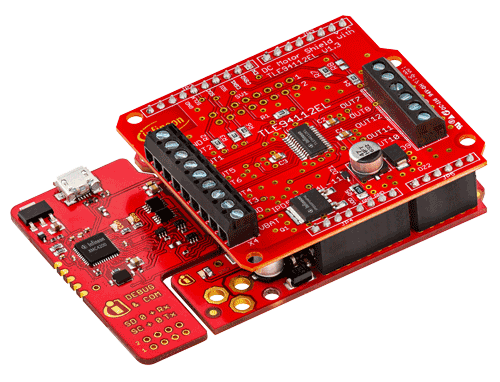

Infineon's multi half-bridge is capable of driving 6 bi-directional and up to 11 unidirectional motors and therefore a perfect solution for systems with multiple motors like robots.

Key Features:

• Driver with 12 half-bridge outputs to drive DC motors, resistive or inductive loads
• Driver is protected against over-temperature, overcurrent, overvoltage, undervoltage and enables diagnosis of overcurrent, overvoltage, undervoltage
• SPI interface for control an diagnosis
• Enhanced EMC performance
• Integrated PWM generator with 3 different frequencies (80Hz, 100Hz, 200Hz)

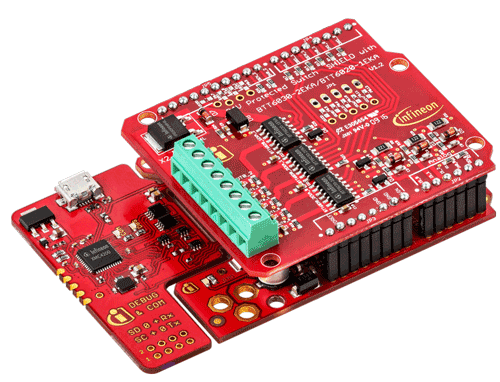

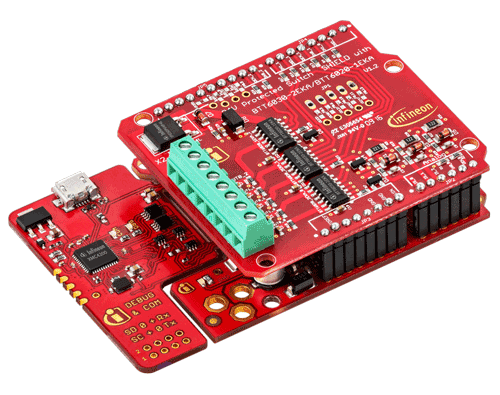

The 24V Protected Switch Shield with BTT6030-2EKA and BTT6020-1EKA is equipped with three protected high-side power MOSFETs out of the PROFET™+ 24V family - Infineon's protected high-side switches (BTT6xxx) driving resistive, capacitive as well as inductive loads (e.g. truck bulbs, car bulbs, valves, motors, relays, capacitors, LEDs).The shield provides a fast and easy access to drive up to five 24V loads with a nominal current of 4A to 5A each.

Key Features:

• Capable of PWM up to 400Hz
• Driver circuit with logic-level inputs
• Diagnosis with current sense
• Protection of load and driver circuit e.g. against over-temperature, overcurrent, ES
• Load diagnosis with current sense capability

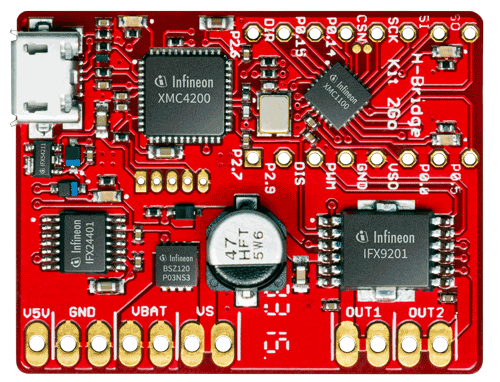

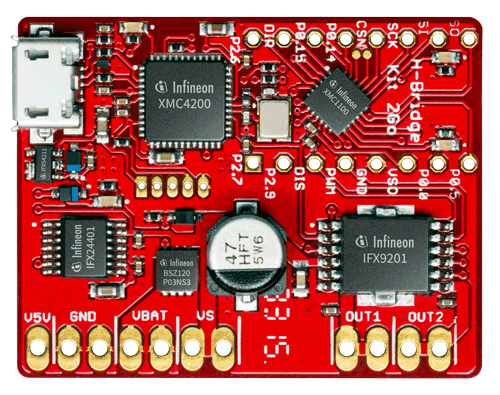

Looking for an easy to use and affordable solution for automation? The Infineon H-Bridge Kit 2Go is a ready-to-use system which includes all you need on a tiny (30mm x 38mm) board:

• IFX9201 H-Bridge with 6A (peak) current capability
• XMC1100 Microcontroller based on ARM® Cortex®-M0
• on-board debug interface.


Key Features:

• Up to nominal 36V supply voltage
• Short circuit, over-temperature protection and undervoltage shutdown
• Detailed SPI diagnosis or simple error flag
• Simple design with few external components
• Small and robust PG-DSO-12-17 package

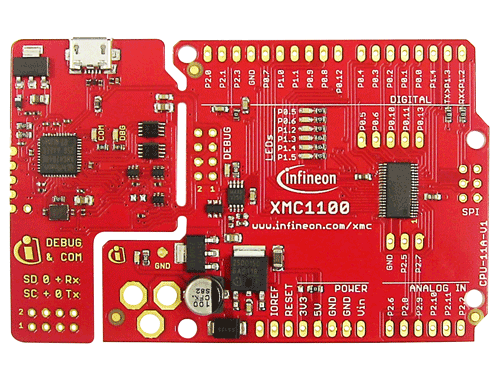

The XMC1100 Boot Kit is equipped with an XMC1100 32bit microcontroller in TSSOP38 at 32MHz with 64kB Flash, 16kB RAM and the full peripheral set of the XMC1100 series:

• XMC1100 (ARM® CortexTM -M0 based) Microcontroller, TSSOP38
• Headers compatible with Arduino shield
• Detachable SEGGER J-Link debugger and UART virtual COM port, with micro USB connector
• Power supply concept compatible with Arduino Uno
• One LED as required from Arduino board specification and six additional LEDs

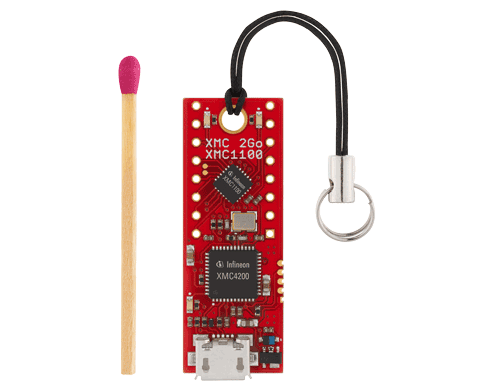

The XMC™ 2Go with the XMC1100 Microcontroller is a budget-priced evaluation board equipped with an ARM® Cortex®-M0 CPU running on 32MHz, 64KB Flash and 16KB RAM. The XMC™ 2Go has a complete set of on-board devices, including an on-board debugger to immediately start code development.

Features:

• XMC1100 (ARM® Cortex™-M0 based)
• On-board J-Link Lite debugger
• (Realized with XMC4200 microcontroller)
• Power over USB (Micro USB)
• ESD and reverse current protection
• 2 x user LED
• Pin Header 2x8 Pins suitable for breadboard

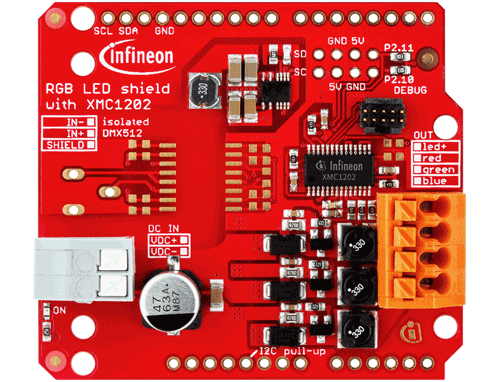

The RGB LED Lighting Shield with XMC1202 uses a DC/DC buck topology and is able to drive up to three LED channels with constant current. The shield itself is powered by a programmable XMC 32bit ARM® microcontroller with embedded Brightness Color Control Unit (BCCU, XMC1200 MCU series), for flicker-free LED dimming and color control.


Key Features:

• Wide DC input voltage range
• Simple I2C interface
• Flicker-free light thanks to high-speed pulse density modulation
• Easy-to-use dynamic dimming and color control
• Small size thanks to high-frequency current control (high power density)
• Backdoor access to on-board-microcontroller for advanced users and parameterization
