950V CoolMOS™ P7 SJ MOSFET
Perfect Fit for PFC and Flyback Topologies
Designed to meet the growing consumer needs in the high voltage MOSFETs arena, the new 950V CoolMOS™ P7 focuses on the low-power SMPS market. Target applications range from lighting, smart meter, mobile phone charger, and notebook adaptor, over AUX power supply, to industrial SMPS.
Offering 50V more blocking voltage than its predecessor 900V CoolMOS™ C3, the new 950V CoolMOS™ P7 series delivers outstanding performance in terms of efficiency, thermal behavior and ease-of-use.
Key Features & Benefits (Best-in-class Efficiency, Thermal Behavior and Ease-of-use)
Key Features
- Best-in-class FOM RDS(on) Eoss; reduced Qg, Ciss and Coss

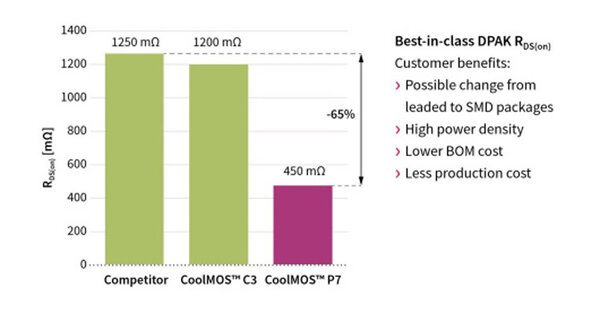

- Best-in-class DPAK RDS(on) of 450mΩ
- Best-in-class VGS(th) of 3V and smallest VGS(th) variation of ± 0.5V
- Integrated Zener diode ESD protection up to Class 2 (HBM)
- Best-in-class quality and reliability

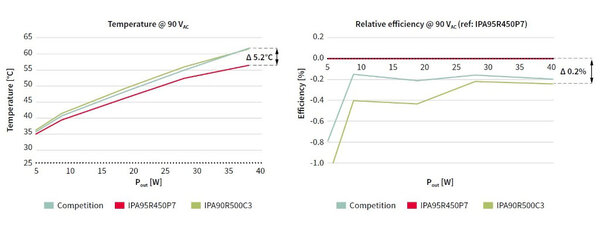

Compared to competition, the 950V CoolMOS™ P7 delivers best-in-class efficiency and thermal performance. Plug-and-play at 90VAC in a 40W adapter reference design (EVAL_40W_FLY_P7_950V), featuring the snubberless concept, demonstrates excellent efficiency gains of up to 0.2% and lower MOSFET temperature of up to 5.2°C compared to similar competitor technology. Read more in the boards section.
Key Benefits
- Up to 1% efficiency gain and 2°C to 10°C lower MOSFET temperature, compared to CoolMOS™ C3
- Enabling higher power density designs, BOM savings, lower assembly cost
- Easy to drive and to design-in
- Better production yield by reducing ESD related failures
- Less production issues and reduced field returns

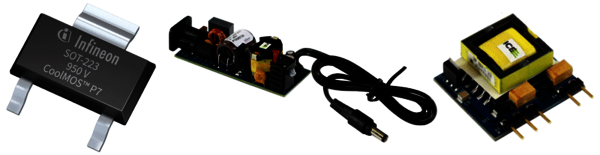

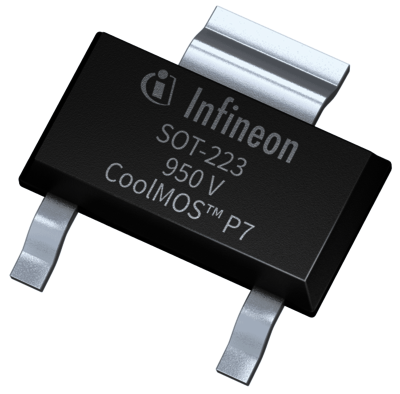

SOT-223 Package (Cost-effective Package Solution & Drop-in Replacement for DPAK)
The 950V CoolMOS™ P7 Superjunction MOSFET meets even the most rigorous design requirements: for lighting, smart meter, mobile charger, notebook adapter, AUX power supply and industrial SMPS applications.
The SOT-223 represents a cost-effective package solution. Without the middle pin it is fully compatible to the footprint of a DPAK and therefore allows one-on-one drop-in replacements and second sourcing at lower cost. Additionally, it features a comparable thermal behavior to DPAK. Smaller form factors result from space savings in designs with low power dissipation.
In addition to SOT-223 the 950V CoolMOS™ P7 is available in TO-220 FullPAK, TO-251 IPAK LL, and TO-252 DPAK packages. For complete portfolio see product table below.
Boards
Board Name

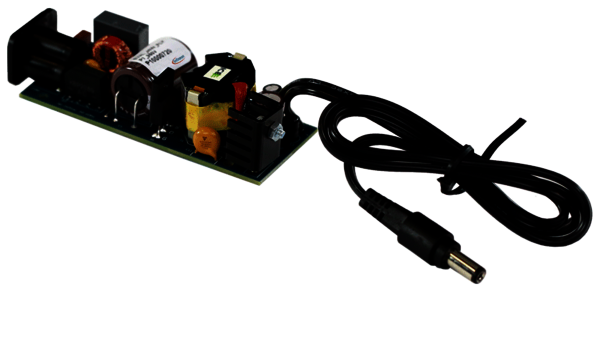

EVAL_40W_FLY_P7_950V
Description
Quasi-resonant flyback converter solution for high efficiency adapter designs
- 2N7002
- ICE2QS03G
- IPA95R450P7

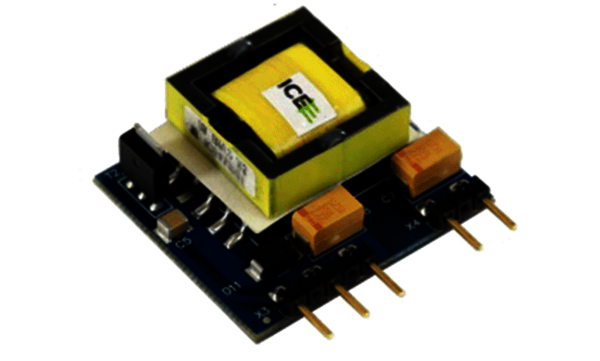

KIT_6W_12V_P7_950V
Auxilary supply solution featuring off-line SMPS current mode controller IC with a 950V CoolMOS™ P7 superjunction MOSFET
- ICE5QSAG
- IPU95R3K7P7
Product Portfolio - Infineon’s 950V CoolMOS™ P7 SJ MOSFET
|
Product |
Data Sheet |
RDS(on) max |
ID max |
IDpuls max |
QG |
Mounting |
OPN |
|
DPAK (TO-252) |
|||||||
|
450mΩ |
14A |
43A |
35nC |
SMT |
IPD95R450P7ATMA1 |
||
|
750mΩ |
9A |
27A |
23nC |
SMT |
IPD95R750P7ATMA1 |
||
|
1200mΩ |
6A |
16A |
15nC |
SMT |
IPD95R1K2P7ATMA1 |
||
|
2000mΩ |
4A |
10A |
10nC |
SMT |
IPD95R2K0P7ATMA1 |
||
|
IPAK (TO-251) |
|||||||
|
450 mΩ |
14A |
43A |
35nC |
THT |
IPU95R450P7AKMA1 |
||
|
750 mΩ |
9A |
27A |
23nC |
THT |
IPU95R750P7AKMA1 |
||
|
1200 mΩ |
6A |
16A |
15nC |
THT |
IPU95R1K2P7AKMA1 |
||
|
2000 mΩ |
4A |
10A |
10nC |
THT |
IPU95R2K0P7AKMA1 |
||
|
3700 mΩ |
2A |
5A |
6nC |
THT |
IPU95R3K7P7AKMA1 |
||
|
SOT-223 |
|||||||
|
1200mΩ |
6A |
16A |
15nC |
SMT |
IPN95R1K2P7ATMA1 |
||
|
2000mΩ |
4A |
10A |
10nC |
SMT |
IPN95R2K0P7ATMA1 |
||
|
3700mΩ |
2A |
5A |
6nC |
SMT |
IPN95R3K7P7ATMA1 |
||
|
TO-220 FullPAK |
|||||||
|
450mΩ |
14A |
43A |
35nC |
THT |
IPA95R450P7XKSA1 |
||
|
750mΩ |
9A |
27A |
23nC |
THT |
IPA95R750P7XKSA1 |
||
|
1200mΩ |
6A |
16A |
15nC |
THT |
IPA95R1K2P7XKSA1 |
