CW40 - Infineon 600 V CoolMOS™ S7

10/03/2022 Product News

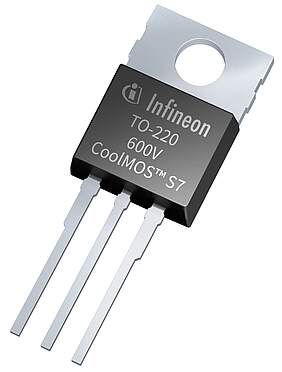

600 V CoolMOS™ S7 in QDPAK and TO-220 package

The 600V CoolMOS™ S7 SJ MOSFET family is optimized for low conduction losses and features the lowest RDS(on) in the market when it comes to high-voltage SJ MOSFETs in a compact SMD package. It comes with an unprecedented RDS(on) x price figure of merit and is a perfect fit for solid-state circuit breakers and relays, PLCs, battery protection, and active bridge rectification in high-power power supplies. The top side cooling minimizes conduction losses and maximizes power density, with the most efficient SMD cooling.


  • Low RDS(on)
  • Compact top-side-cooled QDPAK & TO-220 package
  • Optimized for conduction performance
  • Improved thermal resistance
  • High pulse current capability
  • Kelvin-source pin improves switching performance at high current


  • Minimizes conduction losses
  • Increases energy efficiency
  • More compact and easier designs
  • Eliminates or reduces heat sinks in solid-state design
  • Lower TCO cost or BOM cost

Target applications

  • SMPS
  • Solar energy systems
  • Battery and equipment protection
  • Solid state relays (SSR) and solid state circuit breakers (SSCB)
  • Indoor commercial lighting control
  • UPS
  • Low speed electric vehicles (LSEV)
  • Programmable logic controllers (PLC)
  • Room air conditioning
