CW19 - Sauro Terminal Block

05/09/2022 Product News

Sauro PCB terminal blocks and connectors - must have connectors.

A terminal block consists of a modular housing with an insulated body that secures two or more wires together. Terminal blocks are ideal for designs requiring secure, well-organized, and semi-permanent wire connections that can be easily swapped out for inspection or repair in the field.

SAURO designs and manufactures low-cost and high-quality terminal blocks, connectors (male and female) and multi-level terminal blocks for printed circuit boards.

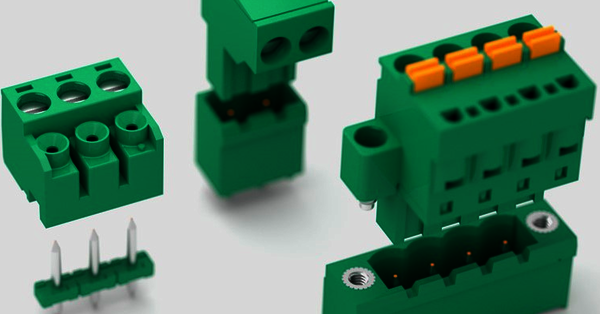

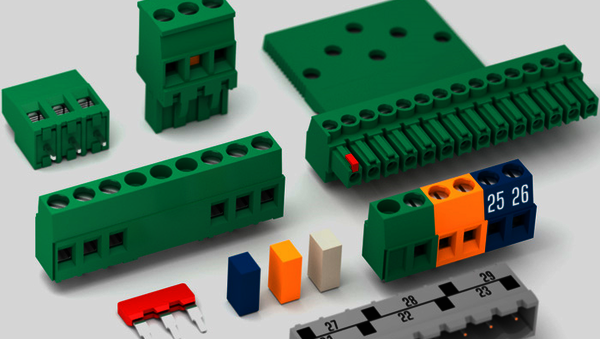

SAURO PCB terminal blocks are available in pluggable, screwless, and screw type configurations, feature up to 25 pole counts, multiple colour options, and horizontal, vertical, 45°, and 180° orientations. These models offer 2.54, 3.5, 3.81, 5, 5.08, 7.62- and 10-mm pitches with wire gauges ranging from 18 to 1 AWG. Terminal blocks also carry UL current ratings from 4 to 135 A as well as UL voltage ratings of 150 and 1000. With operating temperature ranges from -40 up to 105°C, these terminal block connectors are well suited for your interconnect needs.

Features and benefits

  • screw in rising cage clamp technology with double anti slip device to avoid wire loss in absolute terms
  • spring clamp with cable retention force greater than 250N
  • All products have modular versions that allows for efficient stock and delivery
  • Many products exist in monolithic versions from 2 to 25 poles.

Customized solutions

  • Marking
  • Colour
  • Metallic components
  • Accessories/ Packaging
