Omron Speeds up Face Recognition Module

Omron Electronic Components Europe announced a faster version of its face recognition module, boasting a maximum recognition speed of up to ten times that of the existing unit. Using Omron's HVC module, any embedded developer can add face recognition functionality to a system without the need to understand the algorithms or the optical design. As before, the Omron HVC-P2 B5T offers ten key image sensing functions: detection of a human face, hand or body, face recognition, gender detection, age estimation, mood estimation, facial pose estimation, gaze estimation and blink estimation. In each case the module returns a value together with a degree of certainty, allowing the programmer to configure the response appropriately for each individual application. HVC is designed in a very compact configuration and can be easily integrated into an established system or implemented as part of a new design.

Main Features

  • Camera module angle of view: 2 models (50° and 90°) available
  • Multiple functions (10 functions): body detection, face detection, hand detection, face direction estimation, gaze estimation, blink estimation, age estimation, gender estimation, expression estimation and face recognition
  • User friendly: easy implementation through UART or USB


Horizontal detection area (angle of view)

50°: 54°±3°; 90°: 94°±5°

Vertical detection area (angle of view)

50°: 41°±3°, 90°: 76°±5°

Detection distance (differs per function)

3.2-16.7m (HVC-P2 50°), 1.6-8.6m (HVC-P2 90°)

Dimensions (WxLxH)

45x45x8.2mm (main board for both types), 25x25x8.7mm (camera board 50° type), 25x25x15.7mm (camera board 90° type)

Face detection, body detection, hand detection

Result count (max:35), center coordinates (X&Y), detection size (pixel), degree of confidence

Face direction estimation

Yaw degree, pitch degree, roll degree, degree of confidence

Gaze estimation

Yaw degree, pitch degree

Blink estimation

Blink degree (left-side eye/right-side eye)

Age estimation

Age, degree of confidence

Gender estimation

Gender, degree of confidence

Expression estimation

5 expressions: “neutral”, “happiness”, “surprise”, “anger”, “sadness” and their respective score, expression degree (positive/negative)

Face recognition

Individual recognition result, score

Image output

Choose one: none, 160×120 pixels, 320×240 pixels image format: 8-bit Y data

Commenting Fabrizio Petris, Senior Business Development Manager Omron Electronic Components Europe, said, "face recognition functionality is used in a wide range of systems in medical, industrial control, digital advertising, security and other applications. The new HVC-P2 module handles all the complexity of seeing and recognising faces, bodies and gestures, all the integrator needs to do is read the data output and programme the system to react appropriately."

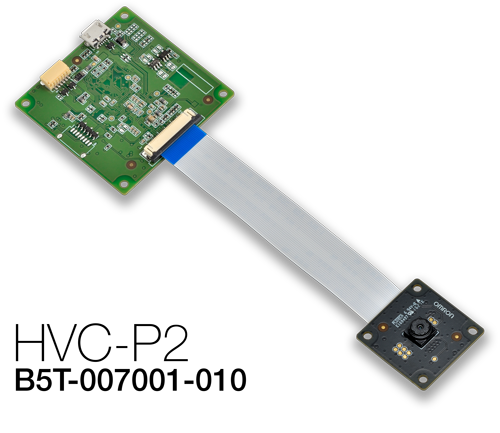

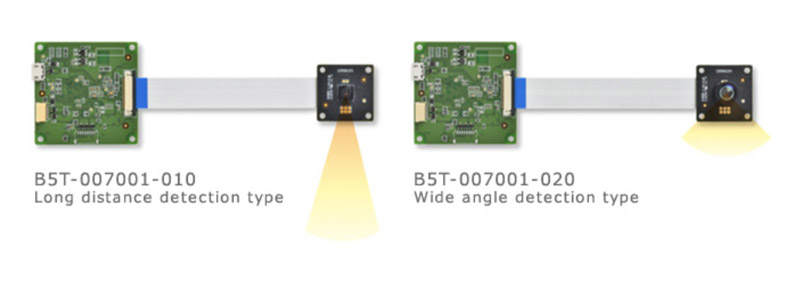

New features of the HVC-P2 module include greater speed and consistency of response, and an increased distance over which readings can be taken. To make the module easier to integrate, it is now supplied in two parts: a 25x25mm camera board and a main 45x45mm board. There are two types available. A long range type has an angle of view of 40° x 50° and a wide angle type with 70° x 90°. The module is now also available with a choice of a UART or USB interface.

The module is based on the Omron OKAO Vision software, a proven set of image recognition algorithms used in over 500 million digital cameras, mobile phones and surveillance robots around the world. HVC embeds OKAO on a hardware platform optimised specifically in terms of its digital and optical design for this application. HVC includes a camera, a processor, and a USB or UART interface to control the module and read data.

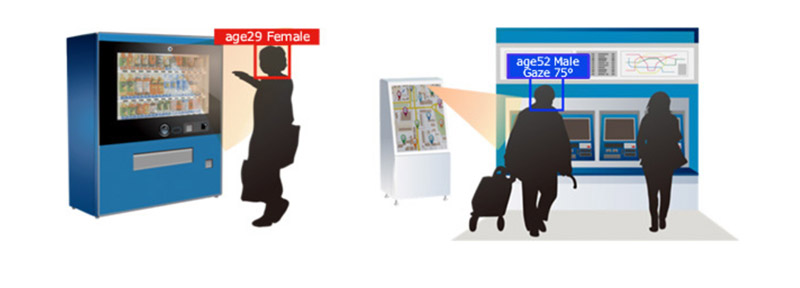

Examples of Application


  • Estimate interest and purchase behavior of people to store goods of interest
  • Vending machines recommending drinks to people


  • Home appliances matching movement of people
  • AC units targeting people
  • Robots matching people
  • Lights targeting only people


  • AC units targeting people
  • Lights targeting only people
  • Hands free machine operation
  • Doors opening to registered people
