New Industrial PCIe SSD Launch - PV140-25

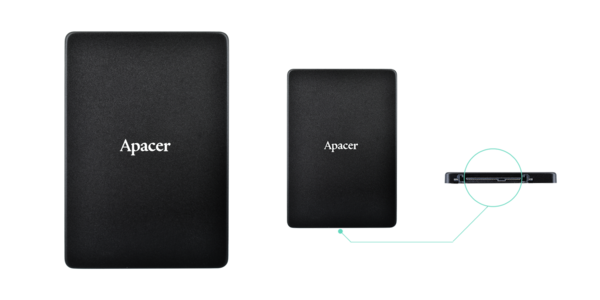

Apacer PV140-25 is the fastest Solid State Drive (SSD) designed with U.2 mechanical dimensions, providing full compliance with PCIe Gen3 x4 interface and NVMe 1.3 specifications.

Built with a powerful PCIe controller, PV140-25 delivers outstanding performance in data transfer, reaching up to 574,000/266,000 and 3,340/1,175MB/s in IOPS and sequential read/write. PV140-25 utilizes 3D NAND for higher capacity up to 3,840GB, making it the ideal choice for rugged, embedded applications.

Regarding reliability, PV140-25 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability. For highly-intensive applications, End-to-End Data Protection ensures that data integrity can be assured at multiple points in the path to enable reliable delivery of data transfers, while Advanced Encryption Standard (AES) ensures data security and provides users with a peace of mind knowing their data is safeguarded at all times.

Possible Applications:

Defense / Factory Automation / Internet of Things / Transportation

Featured Technologies:

DataRAID™ / DEVSLP / End-to-end Data Protection / NVMe Secure Erase / Over-provisioning / Page Mapping / S.M.A.R.T. / Smart Read Refresh™ / SSDWidget 2.0 / Thermal Sensor / Wide Temperature

Tables:

Model

PV140-25

Interface

PCIe Gen3 x4

Connector

U.2 (SFF-8639)

Form factor

2.5"

NAND Flash Type

3D TLC

Capacity

960 ~ 3840GB

External DRAM

YES

Sustained read performance (MB/sec)

Up to 3340

Sustained write performance (MB/sec)

Up to 1175

ECC engine

Low-Density Parity-Check (LDPC) Code

IOPS (4K random write)

574K

Standard operating temperature (°C)

0 ~ + 70

Extended operating temperature (°C)

-40 ~ + 85

Storage temperature (°C)

-40 ~ + 85
