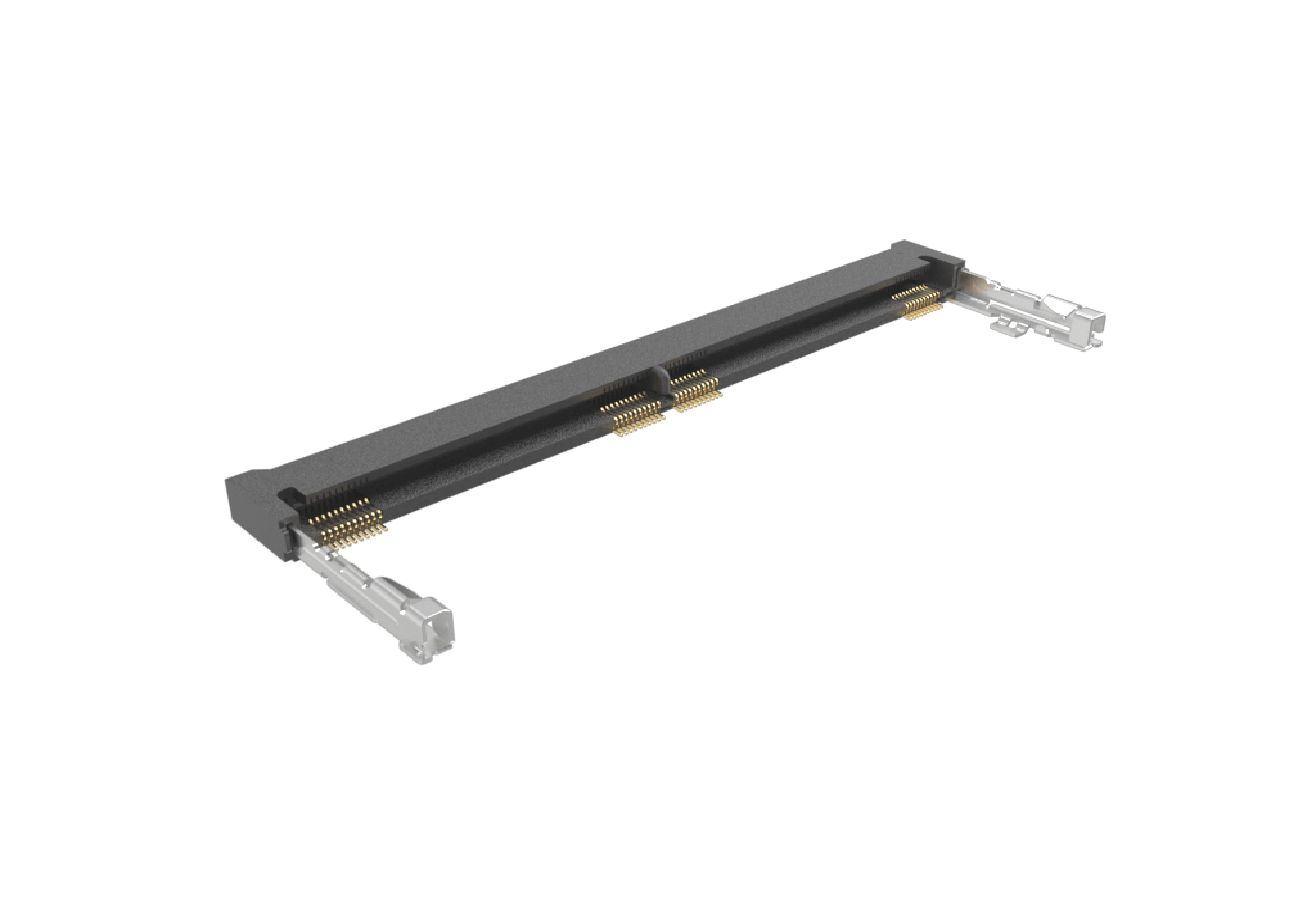

Although the DDR5 SO-DIMM sockets are only half the size of conventional connectors, they enable high speed and bandwidth. They can be used to implement high-speed DDR5 digital validation. They also allow a reduction of power consumption and an optimized thermal management.
Flexibility is immense thanks to the option of right-angled or vertical alignment depending on the requirements of the application, making 262 positions possible. The particularly compact design with a pitch of 0.50 mm is extremely space-saving. They are available with a height of 4.00 mm, 8.00 mm, 5.20 mm, or 9.20 mm.

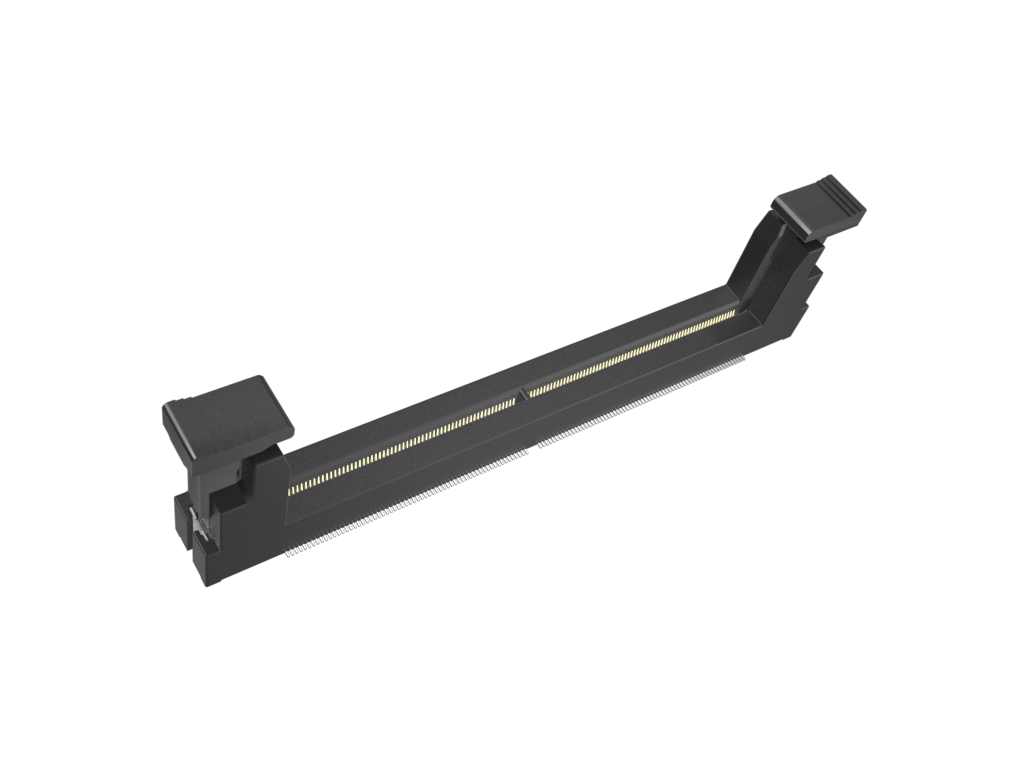

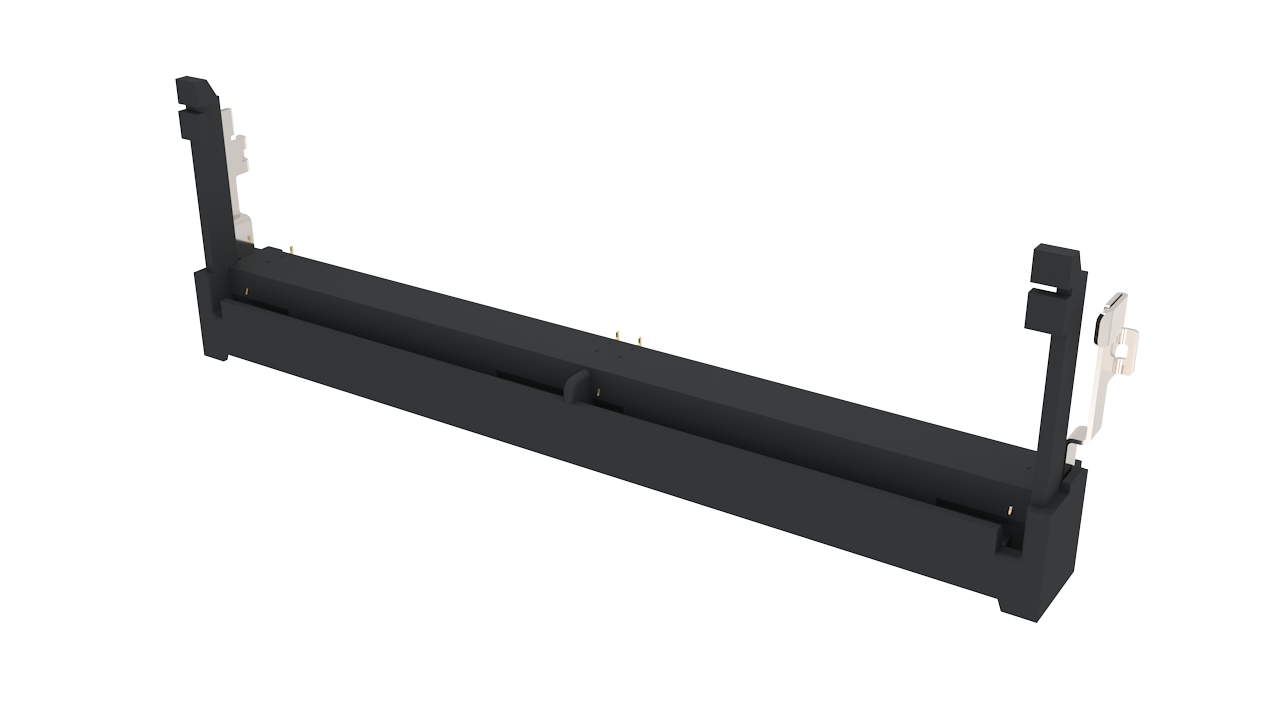

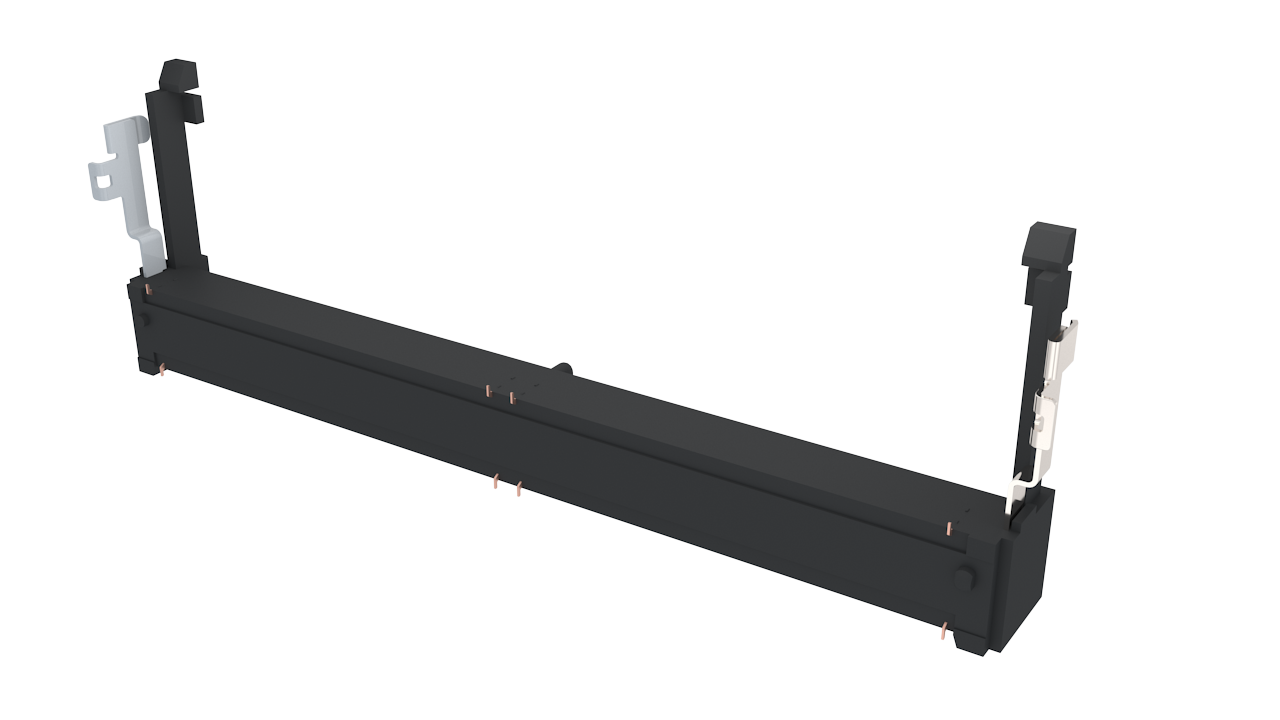

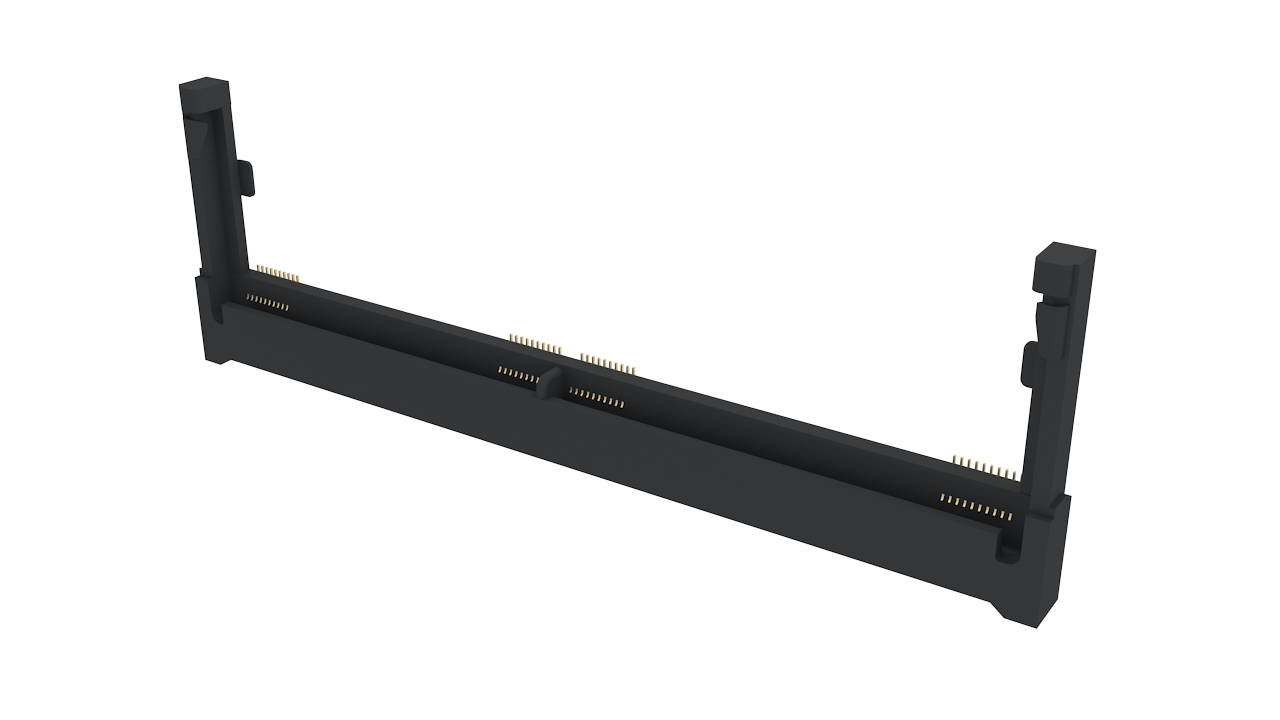

DIMM for vertical alignment
Amphenol's vertical DDR5 DIMM sockets offer 288 contacts at 0.85 mm pitch. They are capable of withstanding shock and vibration testing at high system levels. Designed for the new JEDEC SO-023 interface standard, the DIMM sockets impress with their smooth mating behavior. Here, too, fast data rates and - thanks to the low operating voltage with a small pitch - lower energy consumption are among the key features.
For more information about the DIMM and SO-DIMM sockets from Amphenol and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.
Martin Pfalzgraf | Technical Expert Connectors | +49 7231 801 1459 | email@example.com
