The Right Horticulture Solutions for You and Your Customers’ Individual Needs – From OSRAM Opto Semiconductors
OSRAM Opto Semiconductors’ broad horticulture LED portfolio for 450 nm (deep blue), 660 nm (hyper red) and 730 nm (far red) offers you the right spectrum, while our OSLON® and OSCONIQ® product families include the important wavelengths in three radiation angles 80°, 120° and 150° to provide the perfect lighting for all types of plants and flowers, allowing to adapt the light exactly to the needs of various crops.
We also help you create an utmost efficient individual setup by providing guidance for planning your horticultural lighting with an easy to use online app.
Cost Efficiency and Flexible Design by one Single Footprint
You can easily achieve different ratios between deep blue, hyper red and far red simply by varying the number of the respective OSLON® and OSCONIQ® family LEDs, without any change of the PCB or luminaire design. Various applications with focused light or wide viewing angles without additional lens costs are enabled by different radiation characteristics, while the small footprint allows very compact clustering of the LEDs. This makes easy and efficient optical designs possible. Our ceramic package can withstand very high temperatures of up to 135°C and makes the thermal design cost-effective and stress-free.
DURIS® S 5 - Cost Efficient Solution for Home Applications

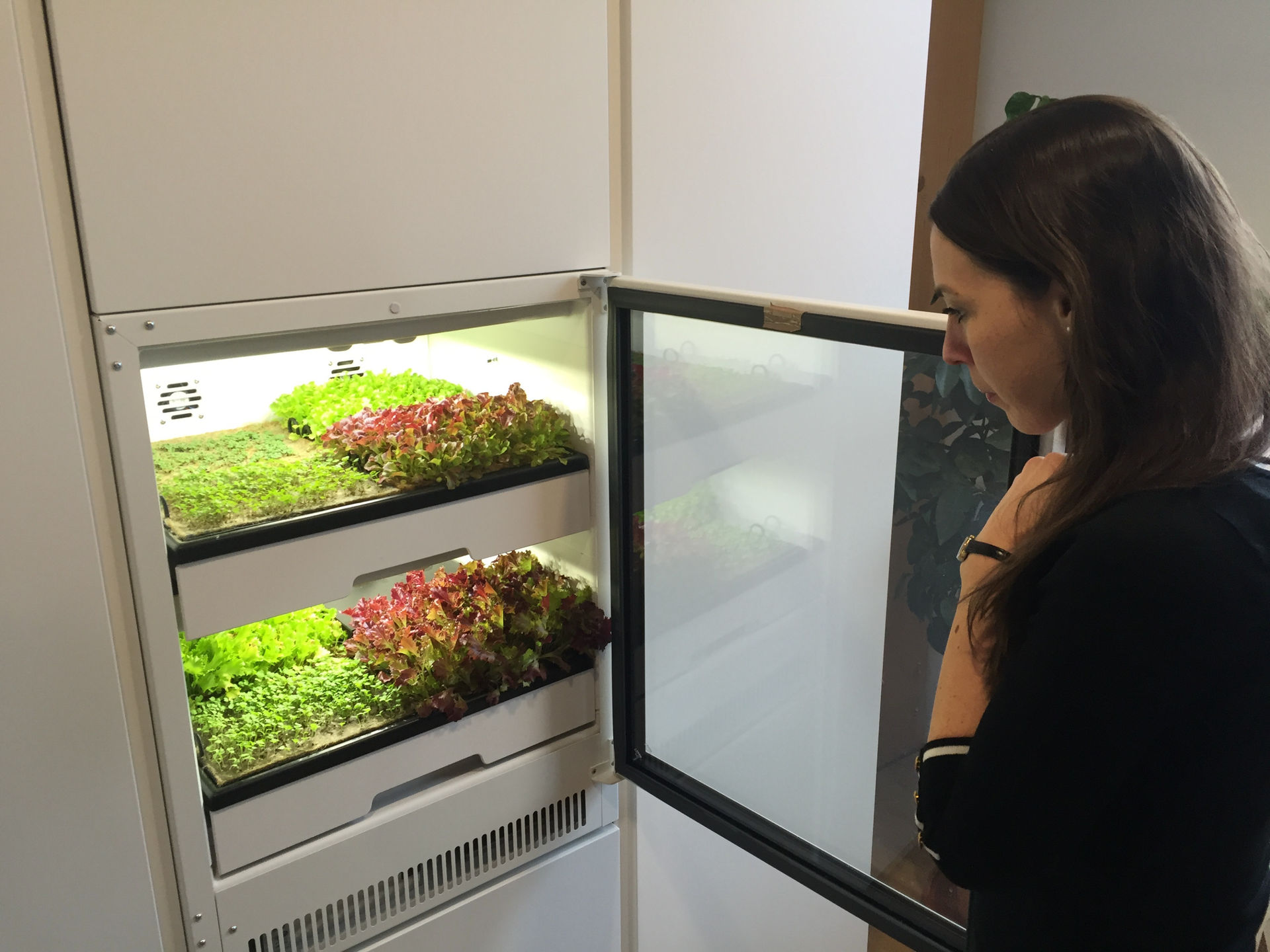

The DURIS® S 5 purple from OSRAM Opto Semiconductor offers exciting and efficient opportunities for innovative applications and designs. It is the perfect LED when it comes to growing our own food inhouse with horticulture lighting for home applications. The purple color achieves state-of-art efficacy and brightness and with the standard footprint of 3.0mm × 3.0mm horticulture retrofit bulbs can be realized easily and cost efficient. DURIS® S 5 is available in seven color versions that enable less LED usage and smaller PCB design, and thus lead to cost savings in assembly.
OSCONIQ® and OSLON® families stand for mid and high power LEDs with high performance and long lifetime even in humid environments. With their small footprint very compact clustering of LEDs enables easy and efficient design for professional toplighting, interlighting and multilayer applications.

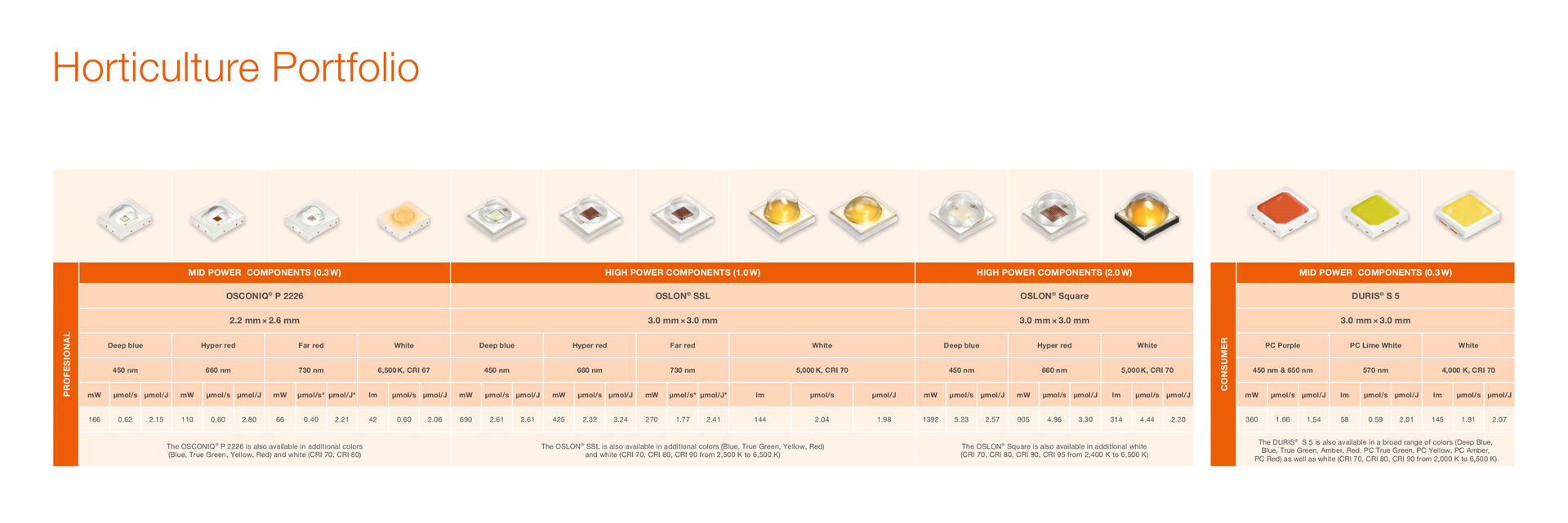

Choose the Right LED and Start Something Bright!
Our Features at a Glance
- 100% footprint compatible with complete color and radiation angle options
- Deep blue (450nm) and hyper red (660nm) to provide the light for the photosynthesis
- Far red (730nm) to control the plant from germination to vegetative growth and flowering
- EQ white to add green content
- EQ white to provide a human friendly working environment
- PC 5000K and CC 5700K provide daylight spectra
- High energy efficacy
- Different radiation angles – spot or wide illumination characteristic without additional optics: 80°, 120°, 150°
- High reliable ceramic package with superior lifetime and corrosion stability
- Robust even in humid environment
Focus Applications for Horticulture LEDs from OSRAM Opto Semiconductors

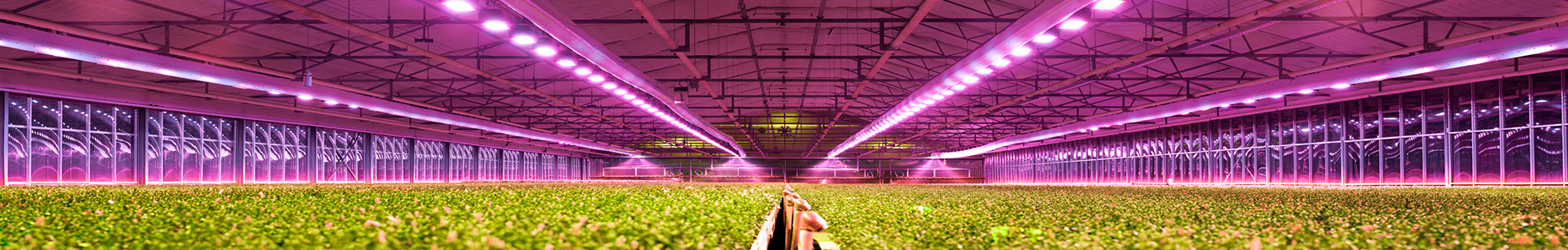

- Top lighting, inter lighting and multilayer cultivation
- Supplemental lighting and cultivation without natural daylight
- Photoperiodic lighting and photo-morphological control
- Urban farming and controlled environment farming
- Algae grow lights and agriculture lighting
