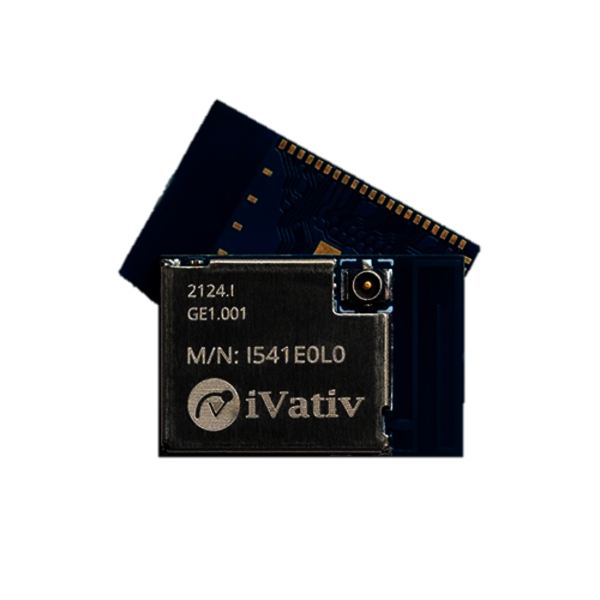

RENO ensures secure connectivity and data protection through Bluetooth Low Energy 5.0 (BLE) and supports UART and SPI as interfaces to the user's MCU. The module is FCC, IC and CE certified.
Here, iVativ uses an ARM® CryptoCell 310 crypto accelerator and AES 128-bit encryption. APIs and AT commands make the module usable on all popular MCUs with little or no porting effort. The component integrates RTOS- or bare-metal based user applications seamlessly and is independent of SoC/chipset and the corresponding SDKs/firmware. Likewise, a secure boot process can be guaranteed.
RENO is available with either an integrated PCB antenna or an MHF4 antenna connector. iVativ also offers matching development kits for each.
The multiprotocol module operates without problems in a temperature range of -40 °C to 85 °C and humidity of 5 to 90 percent, making it suitable for industrial environments. Firmware updates are possible via OTA DFU.
For more information about the RENO Bluetooth module from iVativ and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.
